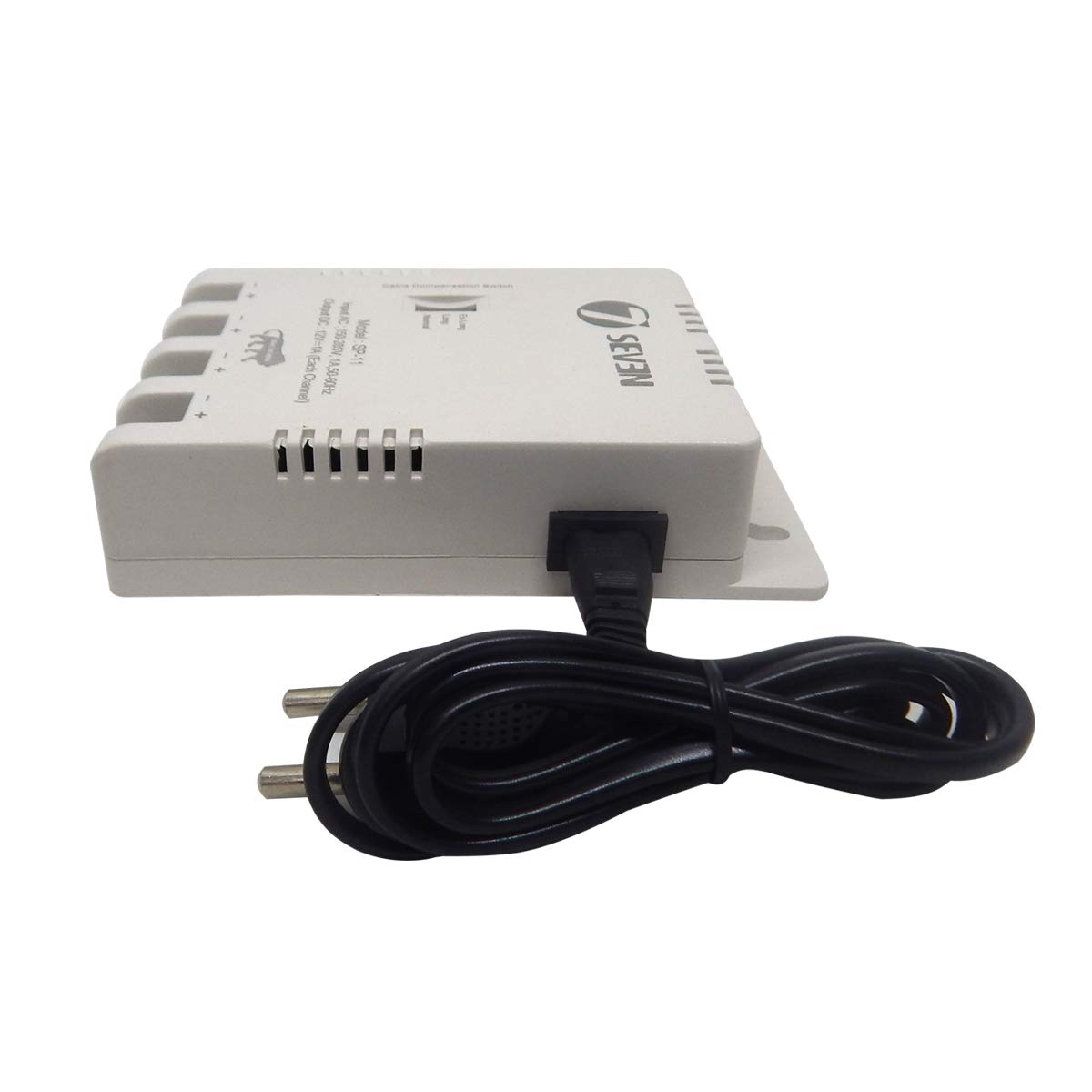

7SEVEN® CCTV Power Supply 4 Channel Camera 12v SMPS with Multi Port for Indoor or Outdoor Security Surveillance Cameras

Price: ₹899 - ₹580.00
(as of Nov 23, 2025 05:17:48 UTC – Details)

Product Description

CCTV Power Supply Salient Features:

· Highly Integrated SMPS Switcher I.C Design

· Stabilized Output Low Interference

· Surge Protection, Over Temperature Protection

· Over Current, Over Voltage & Over Load Protection

· High-efficiency, low energy Consumption

· Individual output with Resettable Fuse

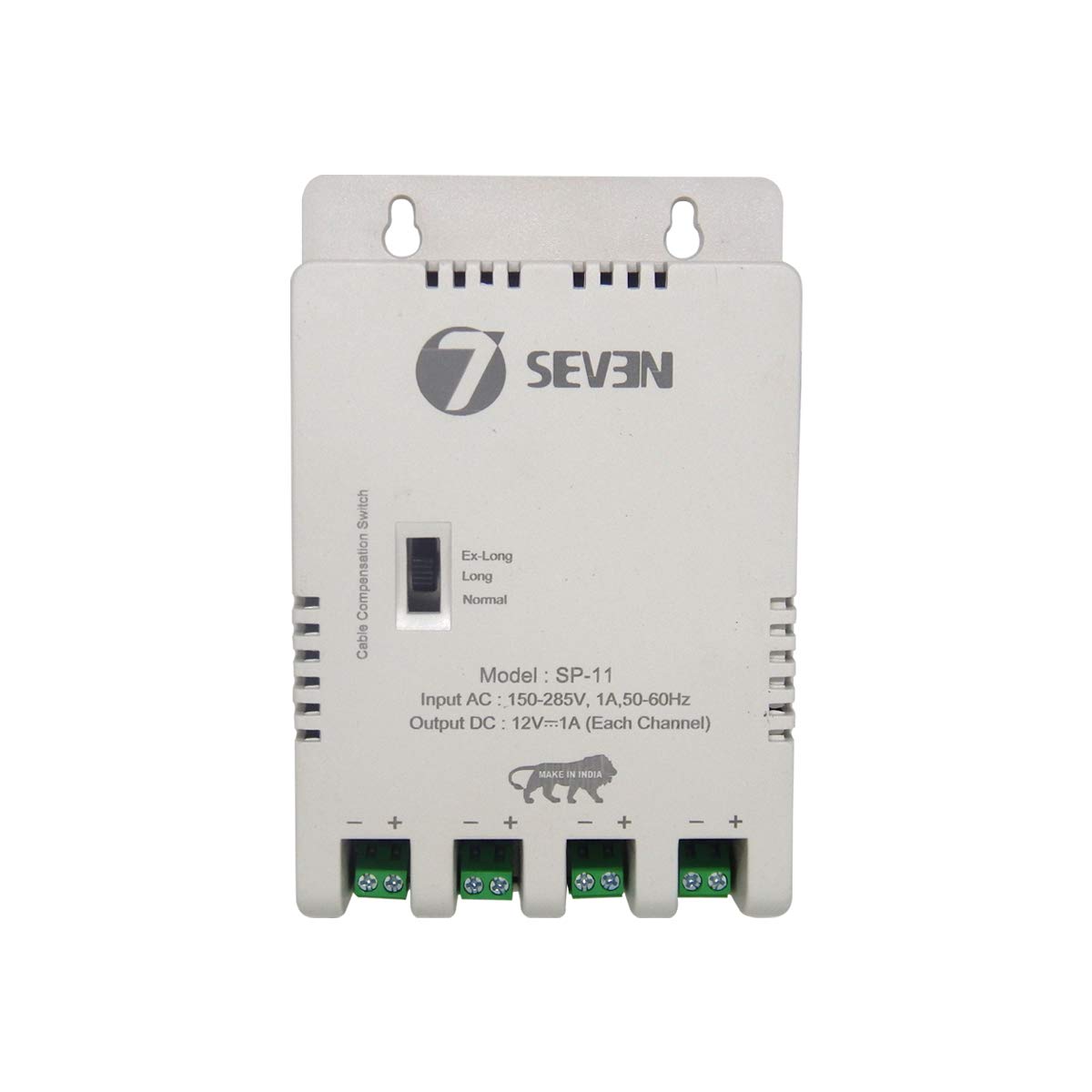

· Cable Compensation toggle Switch for Voltage Boosting (3modes)

· Short Circuit Auto Restart

· Low Ripple Voltage (mV P-P): <5%

· Compact size, light weight Shock Proof and wall Mountable/ Desktop Type.

12v camera power supply Application & Specification

Applications:

· 4 Channel Security Camera Power Supply

· Power LED Monitor for individual camera channel

· Individual Camera Drive

Specifications:

· Input Voltage: 150V to 240V AC, 50/60Hz

· Output Voltage: 12V-1.25Amp (Max) Each Channel which is 12v 5a power supply.

Troubleshooting Guide

Camera not turning ON Check & reconnect power cables SMPS LED not lighting up Check AC power supply & connections Overheating Ensure current rating matches cameras’ power draw Flickering Camera Video Use copper gauge cables or separate power sources Low Ampere Usage of modes are upto 60m-normal mode, upto 75m-Long mode and upto 90m-Ex-Long mode.

Frequently Asked Question(FAQ)

1. Can use for analogue HD cameras ? – Yes, It use for analogue old technology like 420 TVL, 480 TVL, 520 TVL, 600TVL, 720TVL, 800TVL, 900TVL & 1000TVL and HD analogue cameras like 1mp, 1.3mp, 2mp, 3mp, 4mp & 5mp Camera.

2. Can use SMPS for outdoor cameras ? – Yes, can use for both indoor and outdoor camera.

3. Till how many meters of CCTV camera can use power supply ? – It can use upto 90m cable distance between CCTV camera and DVR(Recorder) in Ex-Long mode.

4. CCTV power supply have 3 modes ? Yes,

(a) Normal, (b) Long & (c) Ex-Long modes are available.

Usage of modes are upto 60m-normal mode, upto 75m-Long mode and upto 90m-Ex-Long mode.

5. Camera power supply is weather proof ? – No, CCTV SMPS placed inside closed space where can protect from external weathers.

6. Can use for IP camera ? –Yes, it can use for IP cameras.

7. The CCTV SMPS how many months service cover ? – It cover 12 months service and send faulty product to ACEIN infotech.

Reliable 4-Channel Power Supply: Designed to provide stable 12V DC output for up to 4 CCTV cameras, ensuring continuous operation with zero voltage fluctuations. Ideal for home, office, and commercial security setups.
Advanced Protection Mechanism: Equipped with overload, short circuit, and over-voltage protection, this SMPS automatically shuts off in case of power surges or incorrect connections, preventing damage to both the SMPS and connected cameras.
Reverse Polarity Safety Feature: Our upgraded technology prevents power output if the positive and negative terminals are incorrectly connected, protecting CCTV cameras from potential PCB damage or image distortion.
Energy-Efficient & Low Heat Design: Built with high-efficiency components, this power supply minimizes heat generation, allowing for long-lasting durability and safe continuous operation without overheating.
Easy Installation & Universal Compatibility: Compatible with all 12V DC-powered CCTV cameras, DVRs, and security devices. Simply connect the cameras, ensure proper polarity, and enjoy a hassle-free power supply with stable output performance.
