ETZIN M.2 NGFF B Key B+M Key Slot to 7+17 Pin Adapter Card, for MacBook Air A1465 A1466 (2012 Year only) SSD Replacement, HDD Converter Card Support Sata Based 2230 2242 2260 2280 SSD-(EPL-407HS)

Price: ₹4,999 - ₹449.00
(as of Oct 20, 2025 16:32:20 UTC – Details)


Product description

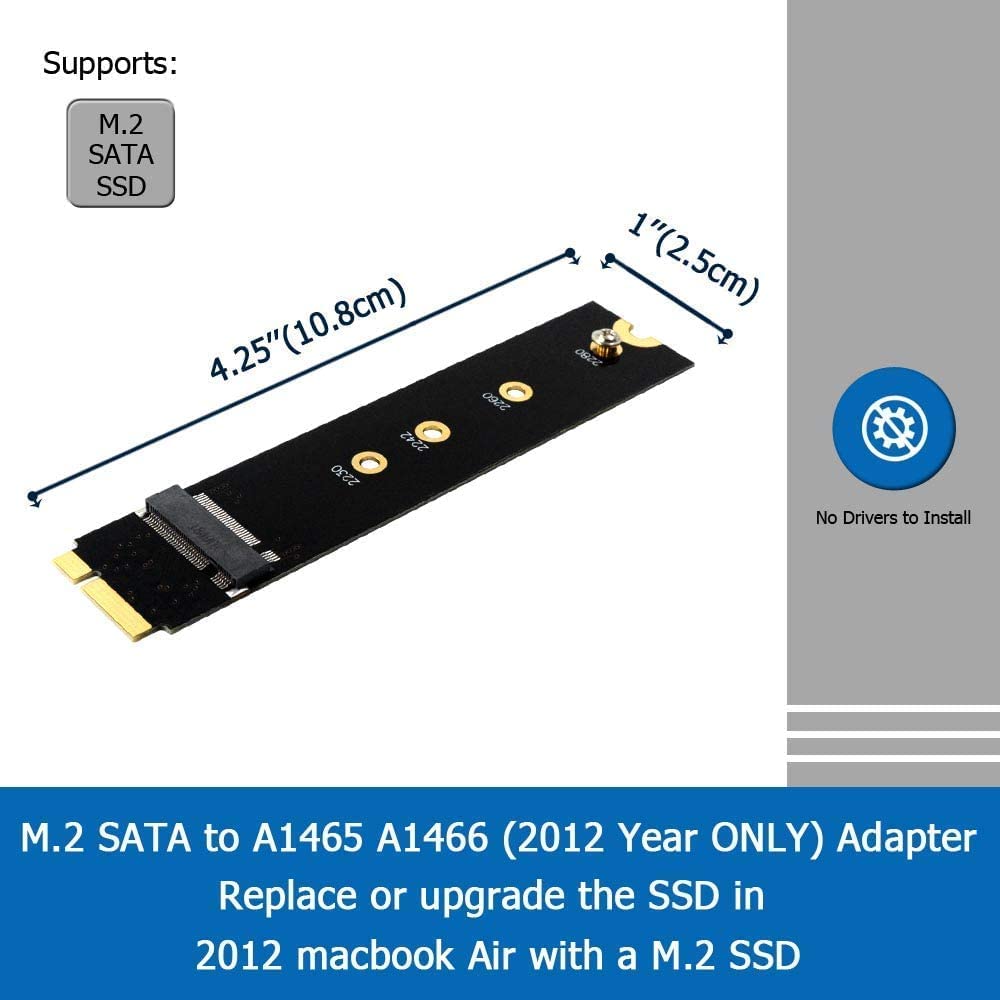

* Same dimension as 2012 Air SSD: 109mmx24mm / 4.29inch*0.95inch. Attention: Before installation, turn off the power and remove the battery. no need drivers.
* Can replace following SSD: Toshiba THNSNS064GMFP, Toshiba THNSNS128GMFP, Samsung MZ-EPC5120/0A2 (512GB).
* The adapter only supports 2012 version App-le MacBook Air,the model includes A1465 A1466 (MD223 MD224 MD231 MD232).
* This adapter installed the NGFF SSD can replace original APPLE SSD, can install the MAC OS or Windows OS.
About M.2 NGFF SSD interface standard: 1.Socket 2 (B+M Key): there are SATA (such as THNSNH128G8NT/ THNSNH128GDNT/MZNTD256HAGM models of SSD) and PCIe X2 (such as PX-AG128M6E/PX-AG128M6E/SD6PP4M models of SSD) two different transfer mode.
2.Socket 3 (M key):PCIe X4(eg. Samsung 950PRO / Samsung 960EVO / Samsung 961 models of SSD) transfer mode.
About MacBook Air SSD interface standard: 1. 2010 and 2011 version MacBook Air SSD is 6+12 pin, the dimension is 109 x24 mm (SATA-bus interface)
2. 2012 version MacBook Air SSD is 8+18 pin, the dimension is 109x 24 mm (SATA-bus interface), 2012 version MacBook Pro SSD is 8+18 pin, the dimension is 89 x33 mm (SATA-bus interface)
3. 2013 and 2014 and 2015 version MacBook Air SSD include two sides golden-finger, one side is 16+12 pin, the other side is 11+14 pin, the dimension is 89 mm*24 mm. It’s PCIe X4 bus interface.
4. 2013 and 2014 and 2015 version MacBook Pro SSD include two sides golden-finger, one side is 16+12 pin, the other side is 11+14 pin , the dimension is 89×33 mm. It’s PCIe X4 bus interface.
Some of M.2 NGFF SSD is not compatible with apple laptop,Such as the use Sand-Force main control chip of solid-state drives,If it is installed on the Apple computer,The computer will be crashed,or can
Only sales adapter card,images of SSD and mainboard is not sales! The adapter card only support 22*42 mm,22*60 mm and 22*80 mm size of M.2 NGFF (SATA) SSD,it does not support PCIe X2 or PCIe X4 transf
Allow users to replace or upgrade the SSD in 2012 macbook Air with a M.2 NGFF SSD.
Fit MacBook Air 13 inch A1466, 2012 Model MD231 MD232.
Fit MacBook Air 11 inch A1465, 2012 Model MD223 MD224.

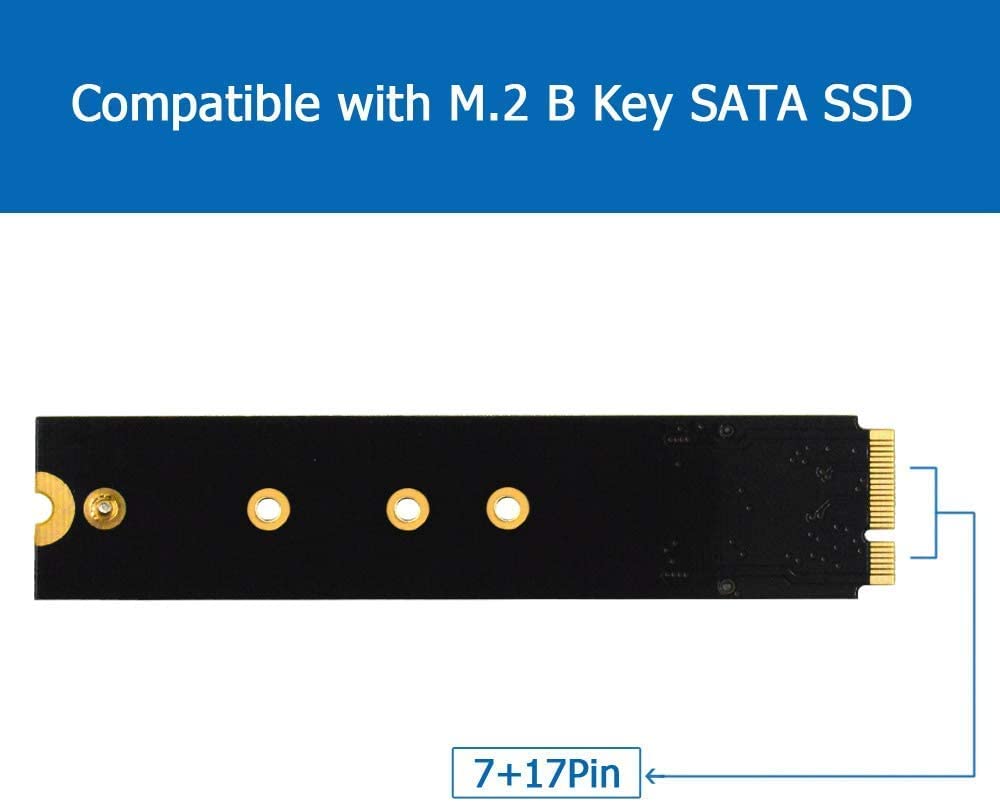

Support 4 size NGFF SSD: Type 2230, 2242, 2260, 2280. Only support NGFF SATA B KEY SSD.
Same dimension as 2012 Air SSD: 109mmx24mm. Attention: Before installation, turn off the power and remove the battery. no need drivers.
