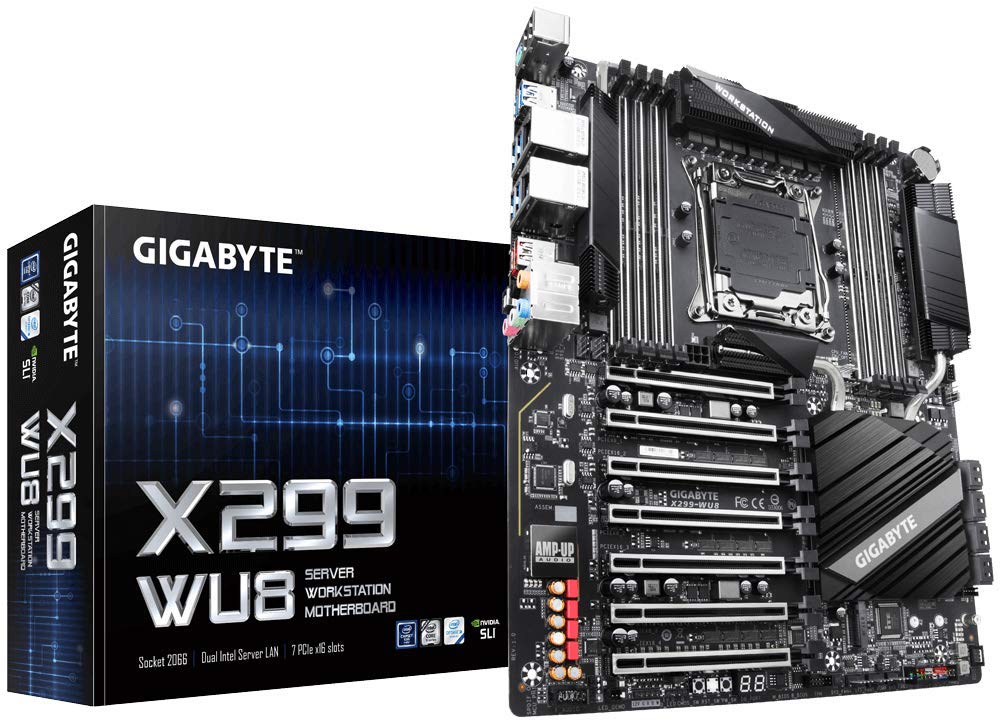

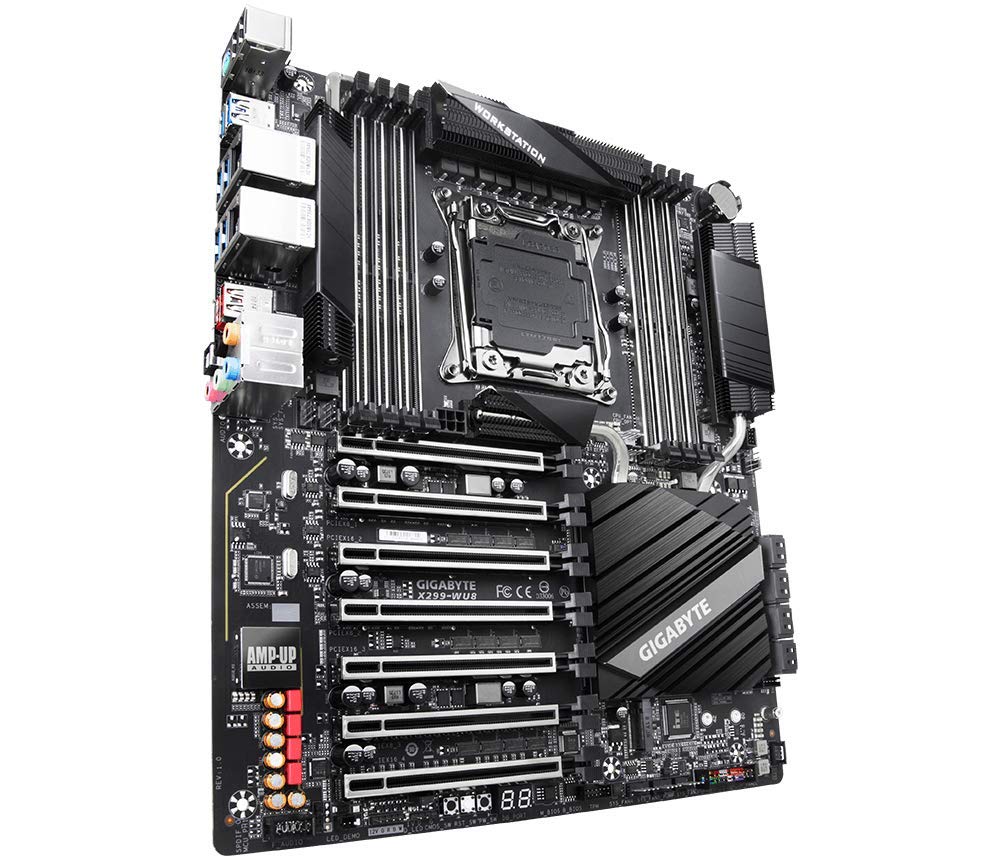

Gigabyte Intel LGA 2066/CEB/7xPCIEx16/ Dual Intel LAN/USB 3.1 Gen 2 Type-C Motherboards X299-WU8

Price: ₹75,000 - ₹71,999.00
(as of Oct 21, 2025 12:10:37 UTC – Details)


Intel X299 motherboard with 7 PCIe x16 slots, Dual Intel Server LAN, PCIe x4 M.2, USB 3.1 gen 2 Type-C, 120dB SNR ALC1220, Digital LED strip support C
Supports Intel Core X-Series Processor Family
Quad Channel DDR4, 8 DIMMs
7 PCIe x16 slots design: 2 PLX 8747 design supports total bandwidth of 64 PCIe lanes and four dual-slot graphics cards. It also supports 4-way NVIDIA SLI or AMD CrossFireX GPU configurations
Dual Intel Server LAN
Intel Optane Memory Ready
Next-gen transfer speeds: PCIe x4 M.2, USB 3.1 Type-A and Type-C connections
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
Two RGBW Pin Headers support digital LED and RGB LED strips
ALC1220 120dB SNR HD Audio with Smart Headphone AMP and WIMA audio capacitors
Powerful heatsink design: an efficient thermal cooling design to provide absolute maximum performance
Lightning-Fast Intel Thunderbolt 3 AIC Support
Intel VROC ready
CPUC
1.Support for Intel Core X series 44-lane / 28-lane processors (6-core or above) in the LGA2066 package
2.L3 cache varies with CPU
(Please refer CPU Support List for more information.)ChipsetC
1.Intel X299 Express ChipsetMemoryC
1.8 x DDR4 DIMM sockets supporting up to 128 GB of system memory
2.4 channel memory architecture
3.Support for DDR4 2667 / 2400 / 2133 MHz memory modules
4.Support for non-ECC Un-buffered DIMM
5.Support for Extreme Memory Profile (XMP) memory modules
(Please refer Memory Support List for more information.)AudioC
1.Realtek ALC1220-VB codec
The back panel line out jack supports DSD audio.
2.High Definition Audio
3.2 / 4 / 5.1 / 7.1-channel
4.Support for S / PDIF OutLANC
1.2 x Intel GbE LAN chips (10 / 100 / 1000 Mbit)Expansion SlotsC
1.4 x PCI Express x16 slots, running at x16 (PCIEX16_1 / 2 / 3 / 4)
2.3 x PCI Express x16 slots, running at x8 (PCIEX8_1 / 2 / 3)
(All of the PCI Express slots conform to …
Supports Intel Core X-Series Processor Family
Quad Channel DDR4, 8 DIMMs
7 PCIe x16 slots design: 2 PLX 8747 design supports total bandwidth of 64 PCIe lanes and four dual-slot Graphics cards. It also supports
4-Way NVIDIA SLI or AMD CrossFireX GPU configurations
Dual Intel Server LAN
