MACHINIST X79 Micro ATX Motherboard, LGA 2011 (Intel 3th Gen) Server Gaming Motherboard (PCIe 3.0, NVME/SATA M.2, Dual Channel DDR3, SATA 6Gb/s) for Intel Xeon E5 V1/V2, Core i7 Processor

Price: ₹21,416.82 - ₹13,385.51
(as of Nov 14, 2025 07:27:44 UTC – Details)


Are you worried about the mainboard burning out? Are you building a pc and choosing a motherboard for your pc?
MACHINIST X79 mobo is designed for high performance and stability with Intel chips and 8 PCB layers. Dual channel DDR3 ECC memory up to 64 GB and one M.2 slot ensures smooth computer experience no matter in games, latest memory-intensive applications, etc. This motherboard supports RAID, which means once the user data is damaged, the backup information can help restore the damaged data.
>Main products: MACHINIST X79 Z9-D7 motherboard *1PCS.
>Accessories: i/o shield, CPU cooling bracket, sata cable (all are hand-tested and packaged, there may be omissions, please forgive me!);
Specification:
Brand: MACHINIST
Condition: Brand New
CPU socket: LGA 2011
Motherboard model: X79 Z9-D7
Structure: M-ATX
Chipset:Intel X79
Memory slot: 4*DDR3
Maximum memory supported: 4*16GB DDR3
Supported memory types: The memory types support DDR3 desktop and server memory. (Please use Samsung, Kingston, SanDisk, Micron, Hynix and other international brands, other brands are incompatible)
LAN port: 10/100/1000Mbps/s
Video output port: requires graphics card support
Interface: 1*RJ45/2*PS2/3*SATA2.0/1*SATA3.0/6*USB2.0/1*PCI-E x16/1*PCI-E x1/1*NVME/NGFF M.2 interface;
Motherboard size: 235*185mm
Motherboard weight (including packaging): about 0.8kg.
Intel 3th Gen LGA 2011 Socket: These computer pc motherboards are equipped with X79 chipset, which can support Intel Xeon E5 V1, V2 and 3th/4th Gen Core i7 series processors. (E.g Xeon E5-1650, Xeon E5-2650 v2, Xeon E5-2660 v2, Xeon E5-2670 v2, Core i7-3820, Core i7-3930K, Core i7-4820K, etc.)
Dual Channel DDR3 Ram Slot: This LGA 2011 motherboard supports DDR3 SDRAM and DDR3 ECC SDRAM. Dual channel design, support overclocking, maximum capacity 64GB. Support 800/ 1280/ 1333/ 1600/ 1866MHz Effective frequency. (If you use less than 4 rams, fill the orange slots first)
NVME/SATA M.2 SSD Interface: This x79 gaming motherboard is equipped with an M.2 interface, which can be converted between NVME and NGFF after debugging through the four black parts on the right side. (See Figure 3 for details) NVME M.2 is transmitted through the PCI_E channel, with a maximum rate of 32Gbps. Also supports 2242, 2260 and 2280 M.2 SSDs
Premium Performance Components: This micro ATX motherboard is made of 8-layer PCB material, 7-phase enhanced power supply, fully enclosed R80 inductor and solid capacitor design. The copper-aluminum alloy heat sink can provide a strong heat dissipation effect for the chip. The buzzer on board can detect all motherboard problems
More expansion interfaces: The Intel server motherboard has strong expandability, including 6*USB 2.0 (with 2 front interfaces), 1*USB 3.0 (front), 3*SATA 2.0, 1* SATA 3.0, 2*PS/2, 1*PCIE X16 and 1*PCIE X1 slots

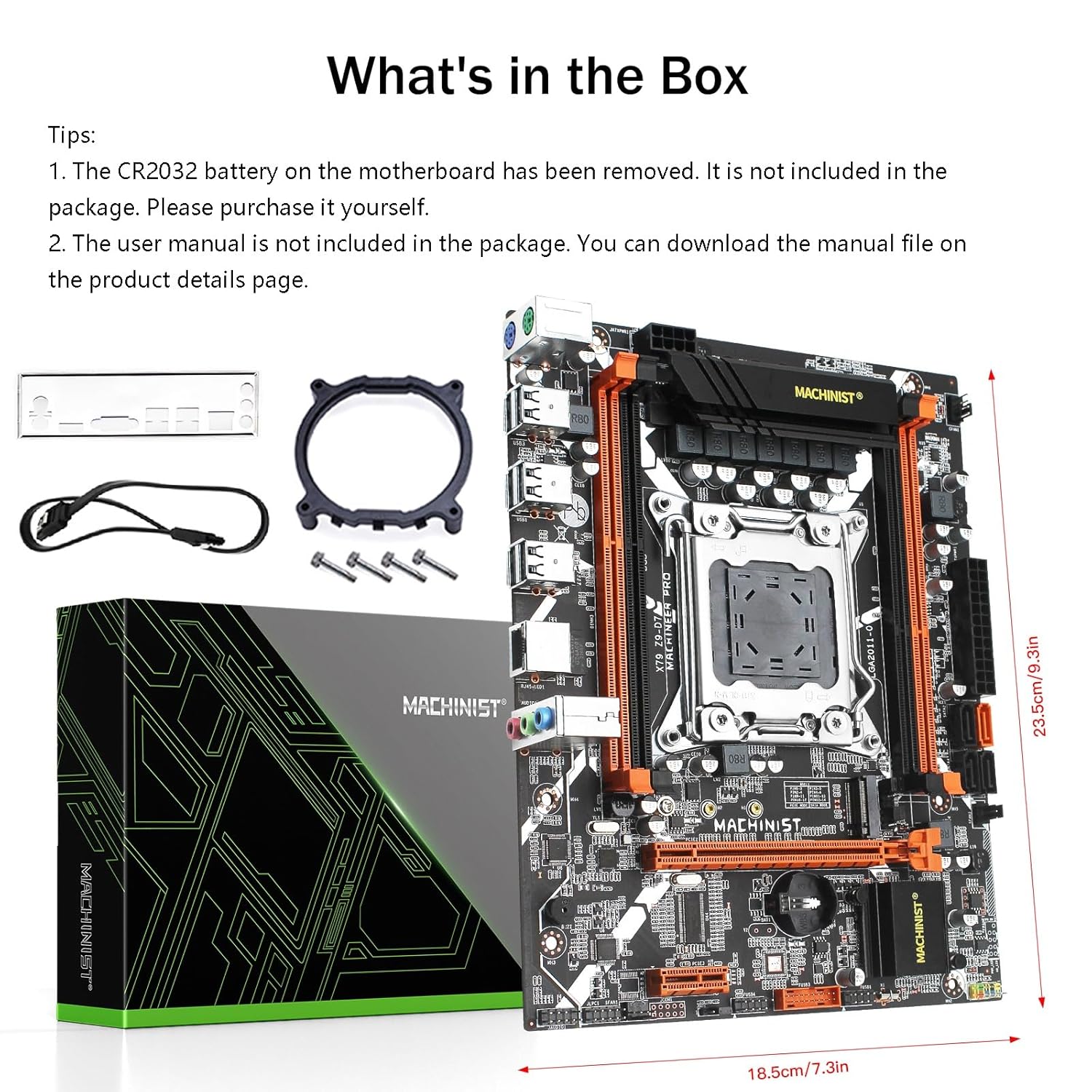

Tips: The package includes: 1*CPU fan bracket, 1*SATA cable, 1*I/O baffle, 1*motherboard. The CR2032 battery on the motherboard has been removed. It is not included in the package. Please purchase it yourself. And the user manual is not included in the package. You can download the manual file on the product details page.
Tips: Before purchasing this ddr3 motherboard, make sure you can install it yourself. After the motherboard is installed normally, if there is no display, no boot, no picture, no network card, no sound card, etc. It is recommended that customers restore factory settings, reset CMOS, or use an eraser to erase the metal pins on the memory, CPU, or graphics card
Note: If you need the motherboard to enter the BIOS, please press the “Del” key continuously after pressing the startup key. Please do not wait until the startup LOGO screen appears on the computer screen before operating, because it is already too late. If you don’t know where to download the driver, it is recommended to use the win 10 system, which can help you solve all driver problems
