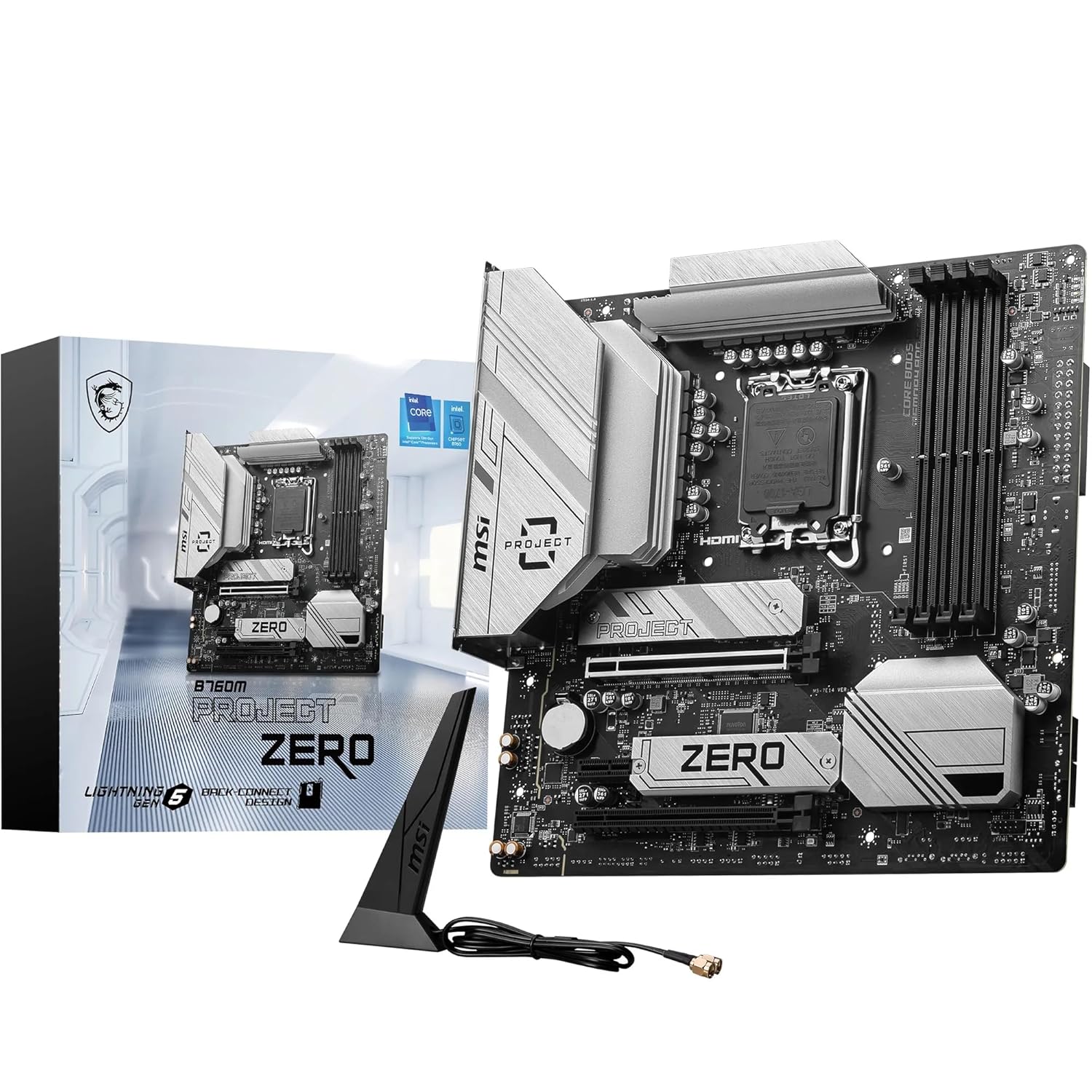

MSI B760M Project Zero, Back-Connect Micro-ATX – Supports 14th/13th/12th Gen Intel Core Processors, LGA 1700-75A DrMOS VRM, DDR5 Memory Boost 7800+MHz/OC, PCIe 5.0 x16, 2 x M.2 Gen4, Intel Wi-Fi 6E

Price: ₹35,999 - ₹24,461.00
(as of Nov 16, 2025 16:28:15 UTC – Details)

From the manufacturer

B760M PROJECT ZERO

MSI Business & Productivity

MSI Business & Productivity specializes in home & commercial office computing hardware with a design emphasis on productivity and user comfort.

For business professionals searching for elegant, world class solutions engineered with cutting edge components, premium reliability and refined aesthetics, MSI Business & Productivity offers a broad array of innovative products to ensure a competitive working environment.

B760M PROJECT ZERO

Absolute Simplicity

B760M PROJECT ZERO features the back-connect design, which allows for a cleaner front view and easier cable management, showcasing the beauty of simplicity.

Supports Intel Core 12th & 13th Gen Processors (LGA 1700) 12 Phase Duet Rail Power System with 75A DrMOS 4 x DDR5 DIMMs with Memory Boost: Dual Channel (192GB Max. / 7800MHz OC) 1 x PCI-e 5.0 x16, 1 x PCI-e 4.0 x16, 1x PCIe 3.0 x1 Gen4 M.2 slots with M.2 Shield Frozr 7.1 HD Audio with Audio Boost USB 3.2 Gen 2×2 Type-C (20Gbps) Realtek 2.5G LAN, Wi-Fi 6E & Bluetooth 5.3

Cleaner Front View

The B760M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card’s aesthetic design to be fully displayed.

Back-Connect Design

Back-Connect Design: Moving the connectors to the back not only keeps the front clean but also makes connector access easier and more effortless. Easy cable management: Eliminate the step of routing the cables from front to back to lower the difficulty of cable management.

Supports Intel Core 12th & 13th Gen Processors (LGA 1700)

The B760M PROJECT ZERO motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors. Form Factor: Back-connect Micro-ATX* Socket Type: LGA1700 Chipset: Intel B760 *Requires a compatible case.

12+1+1 Phase Duet Rail Power System with 75A DrMOS

With its dual 8 pin power connectors and exclusive Core Boost technology, the B760M PROJECT ZERO is able to sustain heavy CPU power loads to support system-demanding game settings: 1. Digital PWM IC 2. 12-Phase Duet Rail Power System (75A DrMOS) 3. 1-Phase GT Power 4. 1-Phase AUX Power

Integrated Cooling Features

VRM Cooling: Features an extended heatsink, 7W/mK thermal pads and additional choke thermal pads for improved thermal dissipation. PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability. SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

4 x DDR5 Dual Channel (7800+ MHz OC)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability. *1DPC 1R Max. overclocking frequency 7800+ MHz, supports Intel XMP.

1 x Fortified PCI-e 5.0 x16 Slot

MSI PCI Express Steel Armor slot are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference. 1 x PCI-e 5.0/4.0/3.0 x16 slot* (with Steel Armor**) 1 x PCI-e 4.0/3.0 x16 slot* 1 x PCI-e 3.0 x1 slot *Supports x16/x4 **MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

Gen4 M.2 Connectors

The B760M PROJECT ZERO motherboard features MSI’s Gen4 M.2 slots: 2 x Gen4 x4 64Gbps slots (with M.2 Shield Frozr)

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.2 out of 5 stars 29

4.3 out of 5 stars 25

4.6 out of 5 stars 82

4.6 out of 5 stars 38

Price

₹23,999.00₹23,999.00 ₹24,461.00₹24,461.00 ₹26,239.00₹26,239.00 ₹20,059.00₹20,059.00

MSI Gaming Series
MAG no data
MAG

Form Factor
Micro-ATX Back-connect Micro-ATX Back-connect Micro-ATX Micro-ATX

VRM
12 Duet Rail Power System / 75A DrMOS 12 Duet Rail Power System / 75A DrMOS Direct 10-Phase Power Design / 80A SPS 12 Duet Rail Power System / 75A DrMOS

DIMM Slots
4 x DDR5 (7200+MHz/OC) 4 x DDR5 (7800+MHz/OC) 4 x DDR5 (7600+MHz/OC) 4 x DDR5 (7200+MHz/OC)

PCI-E x16 Slots
1 x 5.0, 1x 4.0 1 x 5.0, 1x 4.0 1 x 4.0 1 x 5.0 / 1 x 4.0

M.2 Slots
2 x Gen4 x4 2 x Gen4 x4 2 x Gen4 x4 2 x Gen4 x4

M.2 Shield Frozr
Single-sided 2 x Single-sided 2 x Single-sided Single-sided

Audio
8-Channel (7.1) HD Audio with Audio Boost 8-Channel (7.1) HD Audio with Audio Boost 8-Channel (7.1) HD Audio with Audio Boost 8-Channel (7.1) HD Audio with Audio Boost

LAN
Realtek 2.5G LAN Realtek 2.5G LAN Realtek 2.5G LAN Realtek 2.5G LAN

WiFi & Bluetooth
Intel Wi-Fi 6E, Bluetooth 5.3 Intel Wi-Fi 6E, Bluetooth 5.3 AMD Wi-Fi 6E, Bluetooth 5.3 Intel Wi-Fi 6E, Bluetooth 5.3

NEXT/13TH/12TH GEN CORE, HIGH PERFORMANCE – The B760M PROJECT ZERO employs a 12 Phase Duet Rail Power System (75A, DrMOS) VRM for the Intel B760 chipset (LGA 1700, 12th & 13th Gen Core) with Core Boost for high CPU core count power demands
INTEGRATED COOLING – VRM cooling features 7W/mK MOSFET thermal pads and an extended heatsink with heat-pipe; Includes chipset heatsink, M.2 Shield Frozr, a dedicated pump-fan cooling header & 6-layer server grade PCB with 2 oz. thickened copper
DDR5 MEMORY, PCIe 5.0 x16 SLOTS – 4 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, 7800+ MHz); A PCIe 5.0 x16 Steel Armor slot supports the primary graphics card
DOUBLE M.2 CONNECTORS – Storage options include 2 x M.2 Gen4 x4 64Gbps slots with Shield Frozr to prevent SSD thermal throttling; Features a tool-free installation system with EZ M.2 Clips

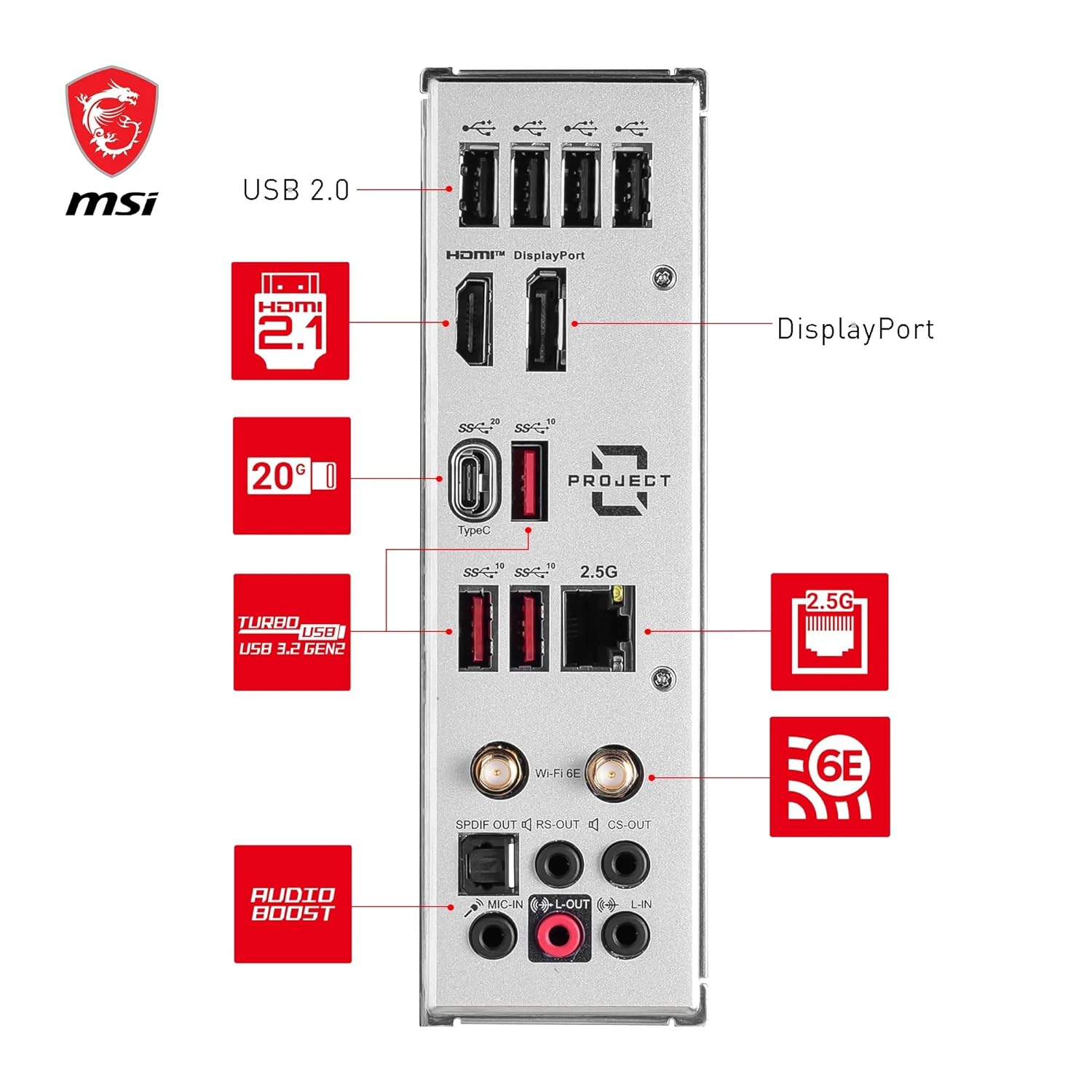

WI-FI 6E CONNECTIVITY – Network hardware includes an Intel Wi-Fi 6E module with Bluetooth 5.3 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2×2 Type-C (20Gbps), HDMI 2.1, DP 1.4, and 7.1 HD Audio with Audio Boost (supports S/PDIF output)
