MSI MEG Z890 ACE Motherboard, ATX – Supports Intel Core Ultra Processors, LGA 1851, DDR5 6400+MHz/OC, PCIe 5.0 & 4.0 x16, M.2 Gen5, Marvell AQC113CS 10G LAN, Wi-Fi 7, Thunderbolt 4

Price: ₹1,30,999 - ₹78,999.00
(as of Nov 17, 2025 00:26:40 UTC – Details)

From the manufacturer

MEG Z890 ACE

MSI Business & Productivity

MSI Business & Productivity specializes in home & commercial office computing hardware with a design emphasis on productivity and user comfort.

For business professionals searching for elegant, world class solutions engineered with cutting edge components, premium reliability and refined aesthetics, MSI Business & Productivity offers a broad array of innovative products to ensure a competitive working environment.

MEG Z890 ACE

Ascendant Crafted Excellence

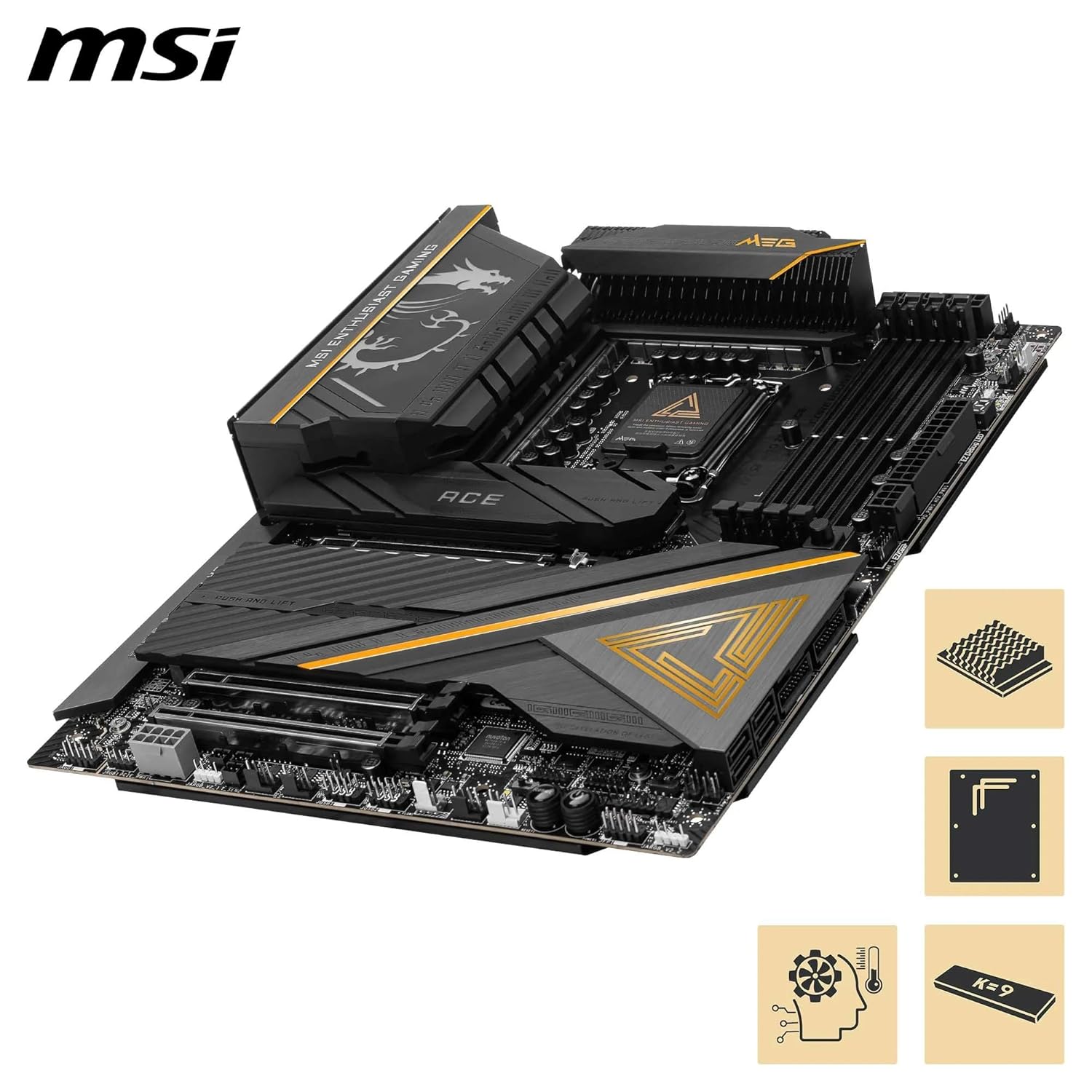

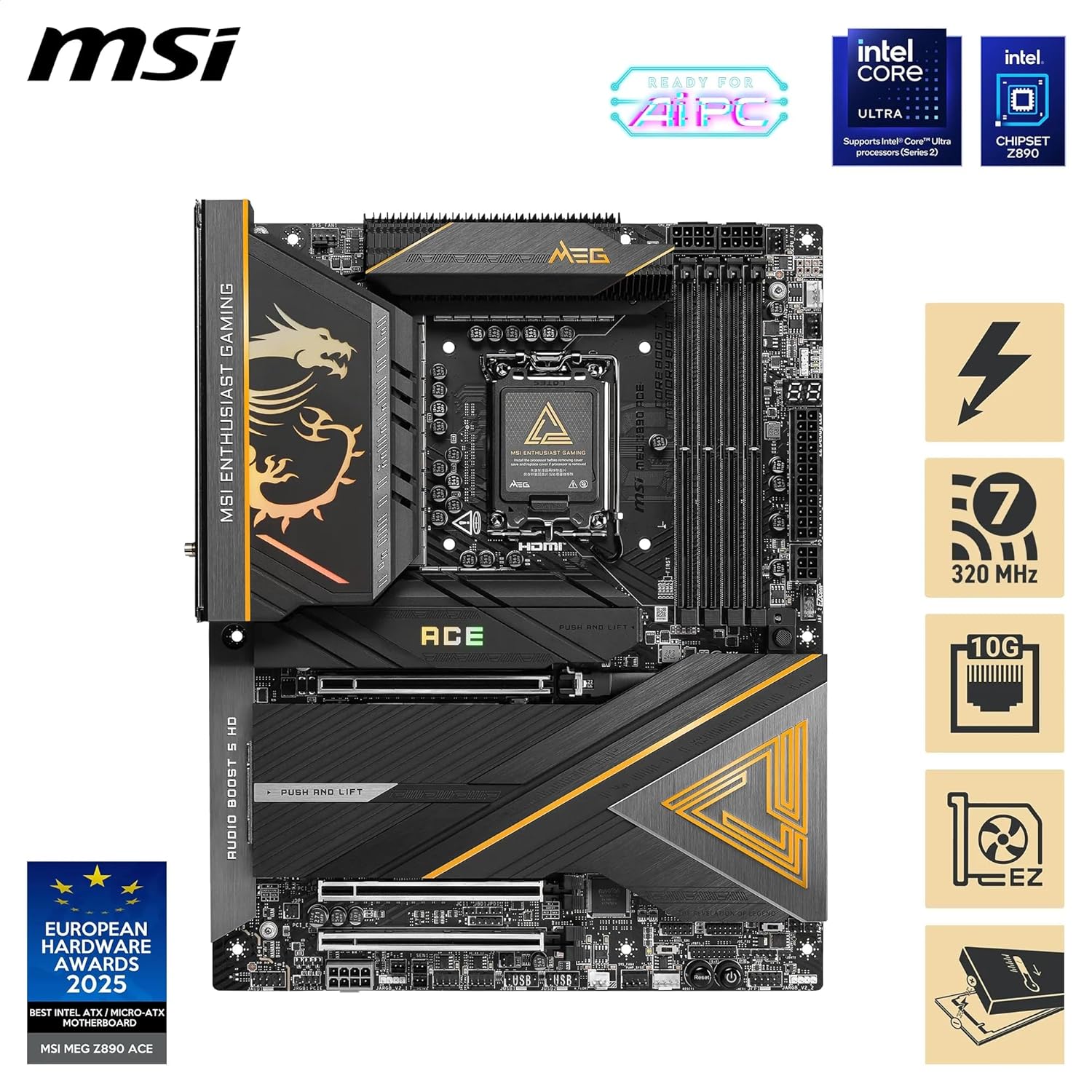

The MEG Z890 ACE is a gaming oriented ATX motherboard featuring premium aesthetics with its dark black finish and pale gold embellishes. Constructed around the latest Intel Z890 chipset which supports Intel Core Ultra Processors (Series 2), featuring 24 Duet Rail Power System phases CPU power, PCIe 5.0, 10G LAN, Thunderbolt 4, Wi-Fi 7, DDR5, premium Frozr and EZ DIY design that delivers superb AI and gaming performance.

Supports Intel Core Ultra Processors (Series 2) (LGA 1851) Ultra Power+: 24 Duet Rail Power System with 110A SPS, OC Engine, 8-layer PCB, Server Grade PCB material 4 x DDR5 DIMMs with Memory Boost: Dual Channel (256GB Max. / 9200+MT/s OC) 2 x PCIe 5.0 x16, 1 x PCIe 4.0 x4 Lightning Gen5 & Gen4 M.2 slots with double-sided M.2 Shield Frozr Ultra Connect: Thunderbolt 4 Type-C, 10G Super LAN, Full-speed Wi-Fi 7 solution, Bluetooth 5.4 8-Channel (7.1) USB High Performance Audio with Audio Boost 5 HD EZ DIY: EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release, EZ Antenna, Steel Armor II, Smart Button

Intel Core Ultra 9, Z890 Chipset, Ultra Power+, Frozr Design, DDR5 Memory

Supports Intel Core Ultra Processors (Series 2)

The MEG Z890 ACE motherboard supports Intel Core Ultra Processors (Series 2). Form Factor: ATX Socket Type: LGA 1851 Chipset: Intel Z890

Ultra Power+ – 24 Duet Rail Power System with 110A Smart Power Stage

With exclusive Core Boost technology and EZ OC Tuning functions, the MEG Z890 ACE is able to sustain heavy CPU power loads to support system-demanding game settings: Digital PWM IC 24 Duet Rail Power System with 110A SPS 2-Phase SA Power 1-Phase GT Power 1-Phase VNNAON Power

Frozr Design

Frozr Guard: Wavy Fin design, Direct-touch Cross Heat-pipe, 9W/mK MOSFET thermal pads, extra choke thermal pads and Double-sided M.2 Shield Frozr for improved thermal dissipation. Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers – including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans. Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

4 x DDR5 Dual Channel (9200+ MT/s OC)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. Memory Extension Mode: Provides optimized memory parameters for enhanced capability at the same frequency, achieving lower latency and higher performance. XMP Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability. *1DPC 1R Max. overclocking frequency 9200+ MT/s, supports Intel XMP.

2 x PCI-e 5.0 x16 Slot, Gen5 M.2, EZ DIY, Ultra Connect

Fortified PCIe 5.0 x16 Slot

The MSI PCI Express Steel Armor II slot is reinforced with additional solder points on the motherboard, supporting 21% more graphics card weight compared to 1st Gen Steel Armor. 2 x PCIe 5.0/4.0/3.0 x16 slots* (one with Steel Armor II** and EZ PCIe Release) 1 x PCIe 4.0/3.0 x4 slot* *Supports x16/x0/x4, x8/x8/x4, x8/x4+x4/x4 **MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

Gen5 M.2 Connector

The MEG Z890 ACE motherboard features MSI’s M.2 slots: 1 x Gen5 x4 128Gbps slot (with magnetic double-sided M.2 Shield Frozr) 4 x Gen4 x4 64Gbps slots (with double-sided M.2 Shield Frozr)

EZ DIY

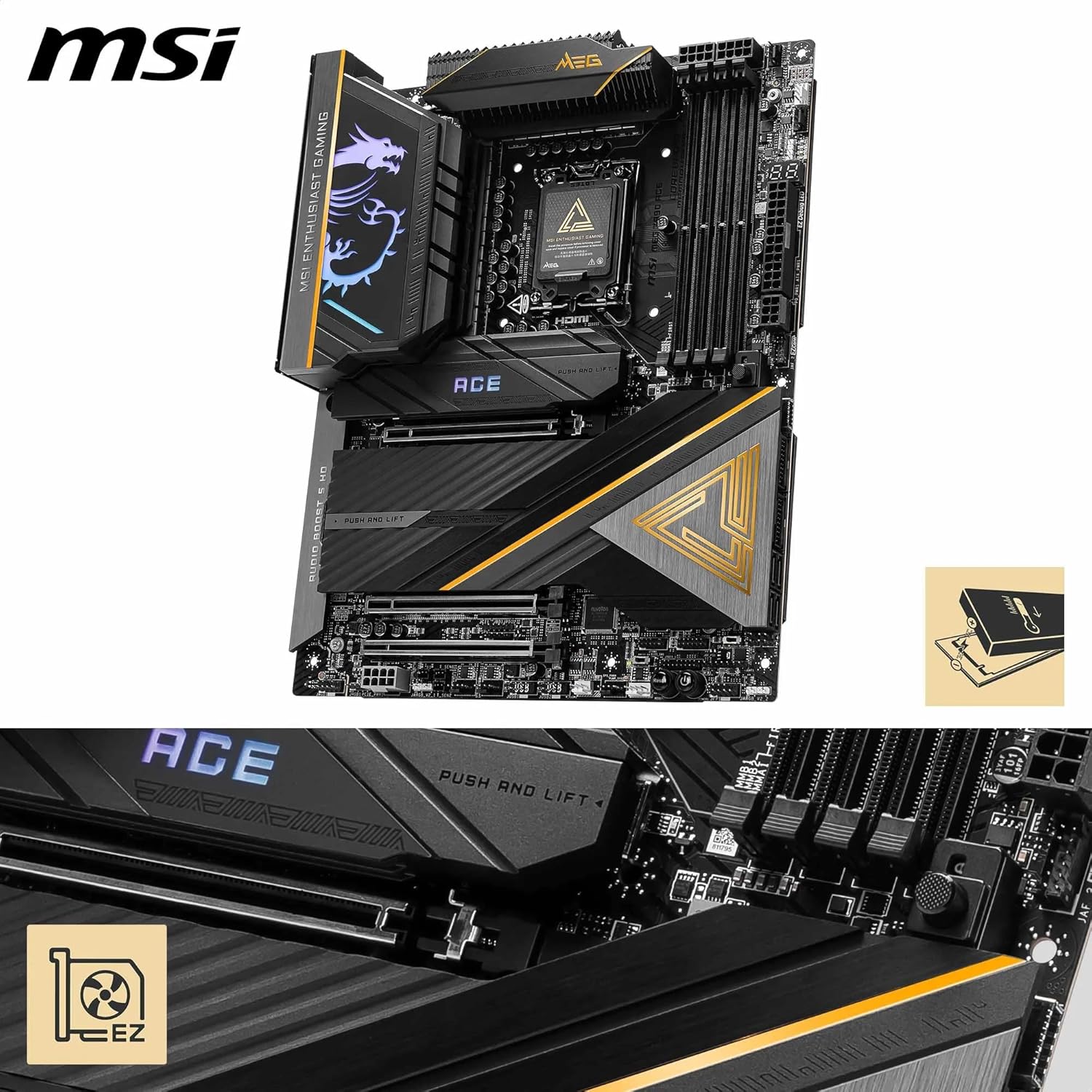

The DIY Friendly designs optimize the assemble process and experience. EZ Magnetic M.2 Shield Frozr II: MSI patented magnetic Shield Frozr cover features a tool-free design so users don’t have to worry about lost screws or overtightening. EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws. EZ PCIe Release: With just one press of a button, users can easily install or remove the graphics card with one hand. EZ Antenna: MSI’s latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna’s placement. Smart Button: By simply pressing the Smart Button, users can reset the system or turn Mystic Light on/off without entering the BIOS.

Ultra Connect

10G Super LAN: Premium Marvell 10Gbps Super LAN delivers an utmost network gaming experience. Wi-Fi 7: Features the full-speed Intel Killer Wi-Fi 7 (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology. Thunderbolt 4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 8K@60Hz display support.* HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5 HD & S/PDIF output. *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

3.7 out of 5 stars 31

4.5 out of 5 stars 74

4.7 out of 5 stars 28

4.3 out of 5 stars 23

4.4 out of 5 stars 29

Price

₹30,150.00₹30,150.00 ₹36,225.00₹36,225.00 ₹43,641.00₹43,641.00 ₹47,723.00₹47,723.00 ₹78,999.00₹78,999.00

MSI Gaming Series
PRO MAG MPG MPG MEG

Form Factor
ATX ATX ATX ATX ATX

VRM
16 Duet Rail Power System / 90A SPS 16 Duet Rail Power System / 90A SPS 16 Duet Rail Power System / 90A SPS Direct 20 phase power / 110A SPS 24 Duet Rail Power System / 110A SPS

DIMM Slots
“4 x DDR5 (9200+ MT/s OC) ” “4 x DDR5 (9200+ MT/s OC) ” “4 x DDR5 (9200+ MT/s OC) ” “4 x DDR5 (9200+ MT/s OC) ” 4 x DDR5 (9200+ MT/s OC)

PCI-E x16 Slots
1 x 5.0 / 2 x 4.0 1 x 5.0 / 2 x 4.0 1 x 5.0 / 1 x 4.0 2 x 5.0 / 1 x 4.0 2 x 5.0 / 1 x 4.0

M.2 Slots
1 x Gen5 x4 / 3 x Gen4 x4 1 x Gen5 x4 / 3 x Gen4 x4 1 x Gen5 x4 / 4 x Gen4 x4 1 x Gen5 x4 / 4 x Gen4 x4 1 x Gen5 x4 / 4 x Gen4 x4

M.2 Shield Frozr
3 x Single-sided x Gen4 x4 1 x Double-sided / 3 x Single-sided x Gen4 x4 1 x Double-sided / 4 x Single-sided 5 x Double-sided 5 x Double-sided

Audio
8-Channel (7.1) USB High Performance Audio with Audio Boost 4 8-Channel (7.1) USB High Performance Audio with Audio Boost 4 8-Channel (7.1) USB High Performance Audio with Audio Boost 4 8-Channel (7.1) USB High Performance Audio with Audio Boost 5 8-Channel (7.1) USB High Performance Audio with Audio Boost 5 HD

LAN
Realtek 5G LAN Intel Killer 5G LAN Intel Killer 5G LAN Intel Killer 5G LAN + Intel 2.5G LAN Marvell 10G LAN

WiFi & Bluetooth
Wi-Fi 7, Bluetooth 5.4 Wi-Fi 7, Bluetooth 5.4 Wi-Fi 7, Bluetooth 5.4 Wi-Fi 7, Bluetooth 5.4 Wi-Fi 7, Bluetooth 5.4

INTEL ULTRA CORE, EXTREME PERFORMANCE – The MEG Z890 ACE employs a 24+1+2+1 DRPS (110A, SPS) VRM system for the Intel Z890 chipset (LGA 1851, Intel Ultra Core); Core Boost architecture unlocks the full potential for multi-core overclocking
FROZR DESIGN – Wavy fin design, direct touch cross heat-pipe, aluminum cover, double-sided M.2 Shield Frozr, metal backplate and Frozr AI software ensure the utmost performance with low temp.
DDR5 MEMORY, PCIe 5.0 & 4.0 x16 SLOTS – 4 x DDR5 DIMM SMT slots with Memory Boost isolated circuitry for overclocking (6400+ MHz); 2 x PCIe 5.0 x16 slots supports the primary graphics card (PCIe 4.0 x4 slot)
QUINTUPLE M.2 CONNECTORS – Premium storage options consist of 1 x M.2 Gen5 x4 128Gbps slots and 4 x M.2 Gen4 x4 64Gbps slots with double-sided Shield Frozr to prevent SSD thermal throttling; Features a tool-free installation system with EZ M.2 Clips

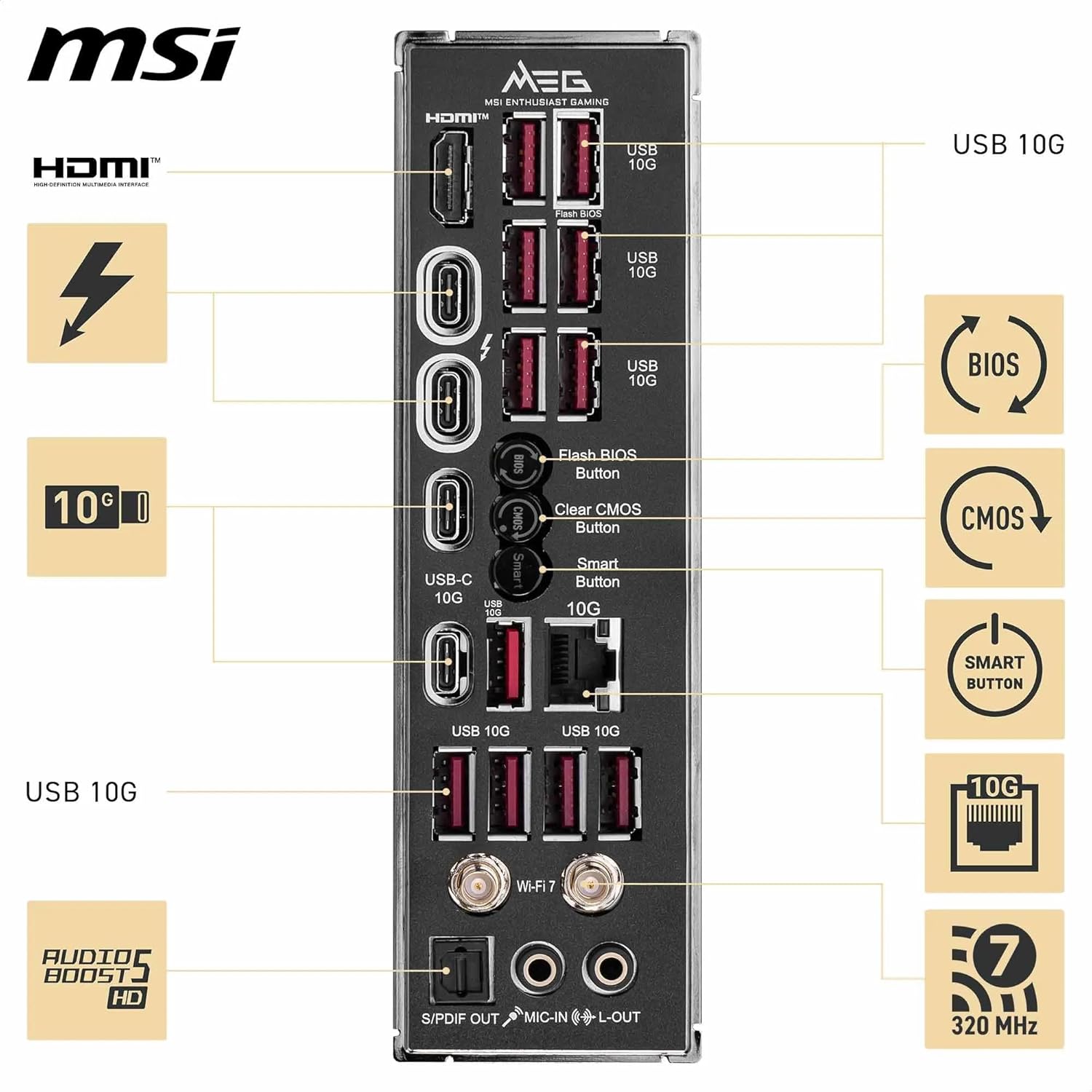

EXCELLENT CONNECTIVITY – Network includes an Intel Wi-Fi 7 module with Bluetooth 5.4 & Marvell AQC113CS 10G LAN; Rear ports include 2 x Thunderbolt 4 (USB Type-C, 40Gbps) & 7.1 USB High Performance Audio with Audio Boost 5 HD (S/PDIF output)
