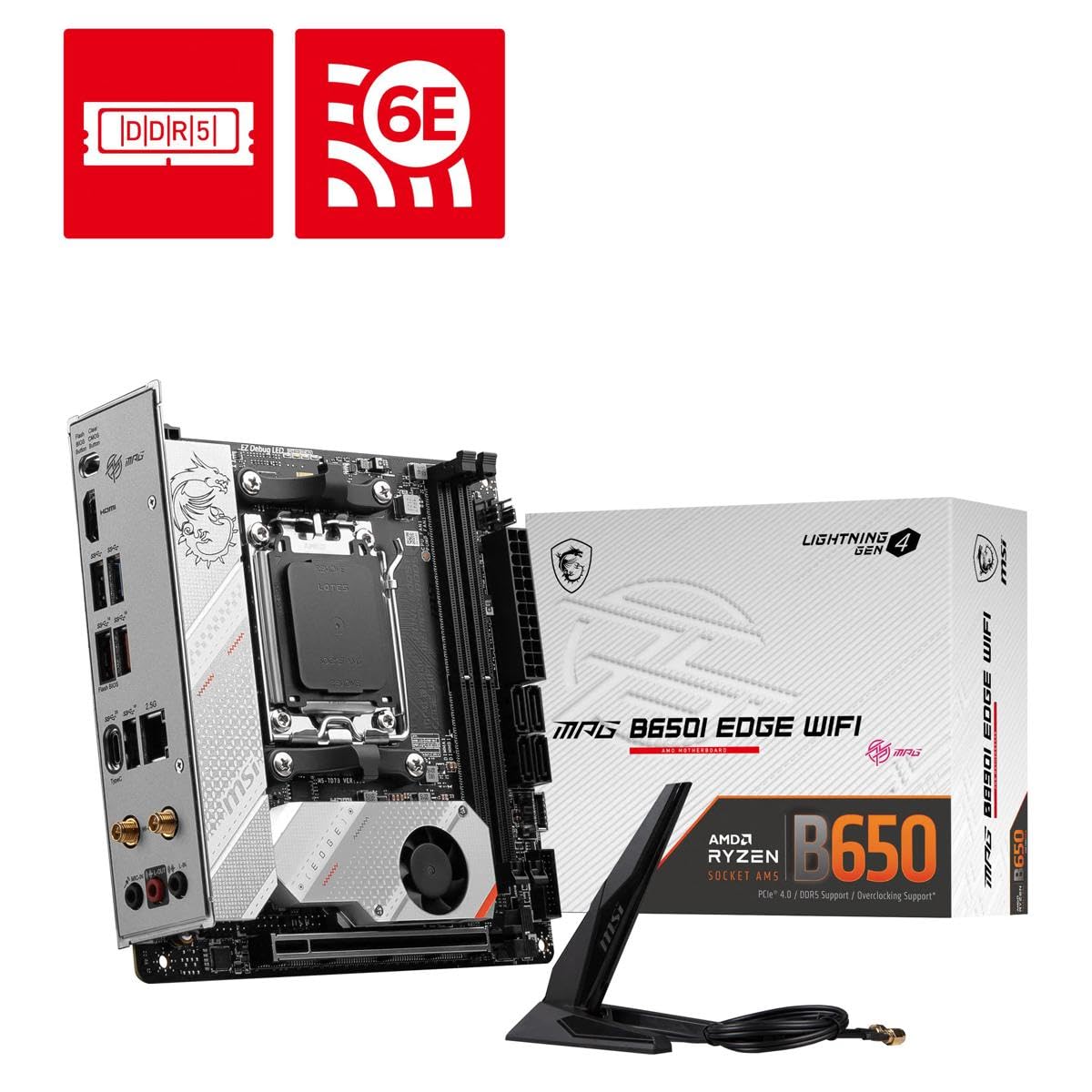

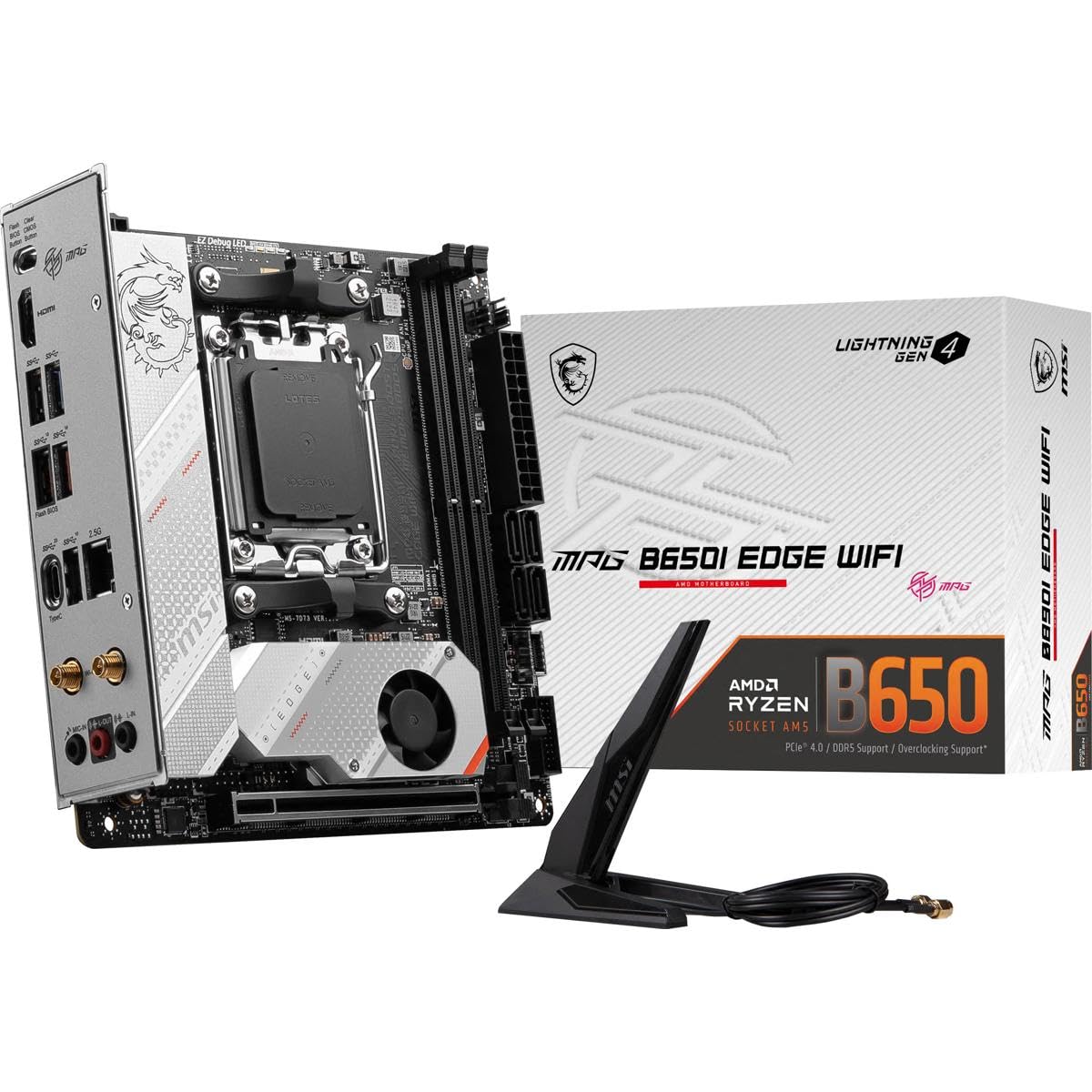

MSI MPG B650I Edge WIFI Gaming Motherboard (AMD AM5, Mini ITX, DDR5, PCIe 4.0, M.2, SATA 6Gb/s, USB 3.2 Gen 2, HDMI, Wi-Fi 6E, AMD Ryzen 7000 Series Desktop Processors)

Price: ₹41,999 - ₹24,729.00
(as of Oct 15, 2025 02:57:46 UTC – Details)

From the manufacturer

MPG B650I EDGE WIFI

MSI Business & Productivity

MSI Business & Productivity specializes in home & commercial office computing hardware with a design emphasis on productivity and user comfort.

For business professionals searching for elegant, world class solutions engineered with cutting edge components, premium reliability and refined aesthetics, MSI Business & Productivity offers a broad array of innovative products to ensure a competitive working environment.

MPG B650I EDGE WIFI

Perform in Style

The MPG B650I EDGE WIFI is a gaming oriented Mini-ITX motherboard constructed around the latest AMD B650 chipset that delivers both performance and style.

Supports AMD Ryzen 7000 Processors (Zen 4, AM5) 8 phases direct CPU power with 80A SPS 1 x PCI-e 4.0 x16 slot 2 x DDR5 DIMMs with Memory Boost: Dual Channel (64GB Max. / 6600MHz OC) 2 x Lightning Gen4 M.2 slots with Shield Frozr (M2_1) 7.1 HD Audio with Audio Boost 5 USB 3.2 Gen 2×2 Type-C (20Gbps) 2.5G LAN, AMD Wi-Fi 6E & Bluetooth 5.2

Supports AMD Ryzen 7000 Processors

The MPG B650I EDGE WIFI motherboard supports AMD Ryzen 7000 processors. Form Factor: Mini-ITX Socket Type: AM5 Chipset: AMD B650

Direct 8+2 Phase VRM with 80A Smart Power Stage

With exclusive Core Boost technology, the MPG B650I EDGE WIFI is able to sustain heavy CPU power loads (up to 170W) to support system-demanding game settings: 1. Digital PWM IC 2. 8-Phase Direct CPU Power (80A) 3. 2-Phase SOC Power 4. 1-Phase MISC Power

Integrated Cooling Features

VRM Cooling: Features an extended heatsink and 7W/mK thermal pads. PCB Cooling: Premium 10-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability. SSD Cooling: M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.

1 x Fortified PCI-e 4.0 x16 Slot

MSI PCI Express Steel Armor slot is secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference: 1 x PCI-e 4.0/3.0 x16 slot (with Steel Armor)

2 x DDR5 Dual Channel (6600+ MHz OC)

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability. *1DPC 1R Max. overclocking frequency 6600 MHz, supports AMD EXPO.

Gen4 M.2 Connectors

The MPG B650I EDGE WIFI motherboard features MSI’s Gen4 M.2 slots: 2 x Gen4 x4 64Gb/s slots

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

Wi-Fi 6E & Bluetooth 5.2

2.5G LAN: A Realtek RTL8125BG 2.5Gbps LAN controller delivers a premium network gaming experience. Wi-Fi 6E: Features an AMD Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology. USB 3.2 Gen 2×2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s. HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5.

Add to Cart

Add to Cart

Customer Reviews

4.1 out of 5 stars 186

4.2 out of 5 stars 144

Price

₹24,729.00₹24,729.00 ₹20,329.00₹20,329.00

MSI Gaming Series
MPG MAG

Form Factor
Mini-ITX Micro-ATX

VRM
8 phases Direct CPU power / 80A SPS 12 Duet Rail Power System / 80A SPS

DIMM Slots
2 x DDR5 (6600+MHz/OC) 4 x DDR5 (6400+MHz/OC)

PCI-e x16 Slots
1 x 4.0 2 x 4.0

M.2 Slots
2 x Gen4 x4 2 x Gen4 x4

M.2 Shield Frozr
Single-sided Single-sided

Audio
8-Channel (7.1) USB High Performance Audio with Audio Boost 5 8-Channel (7.1) USB High Performance Audio with Audio Boost 5

LAN
RTL8125BG 2.5G LAN RTL8125BG 2.5G LAN

WiFi & Bluetooth
AMD Wi-Fi 6E module, Bluetooth 5.2 AMD Wi-Fi 6E module, Bluetooth 5.2

Supports AMD Ryzen 7000 Series Desktop Processors
Enhanced Power Design: Direct 8+2+1 VRM power, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
High Quality PCB: 10-layer PCB made by 2oz thickened copper and server grade level material
