MSI MPG B760I Edge WiFi Mini ITX Motherboard, Mini ITX – Supports Intel 12/13/14th Gen Core Processors, LGA 1700-8 Direct 90A VRM, DDR5 Memory Boost 7200+MHz/OC, Pcie 5.0 X16, 2 X M.2 Gen4, Wi-Fi 6E

Price: ₹37,999 - ₹22,243.00
(as of Oct 17, 2025 06:18:51 UTC – Details)

From the manufacturer

MPG B760I EDGE WIFI WIFI

MSI Business & Productivity

MSI Business & Productivity specializes in home & commercial office computing hardware with a design emphasis on productivity and user comfort.

For business professionals searching for elegant, world class solutions engineered with cutting edge components, premium reliability and refined aesthetics, MSI Business & Productivity offers a broad array of innovative products to ensure a competitive working environment.

MPG Z790 EDGE TI MAX WIFI

Perform in Style

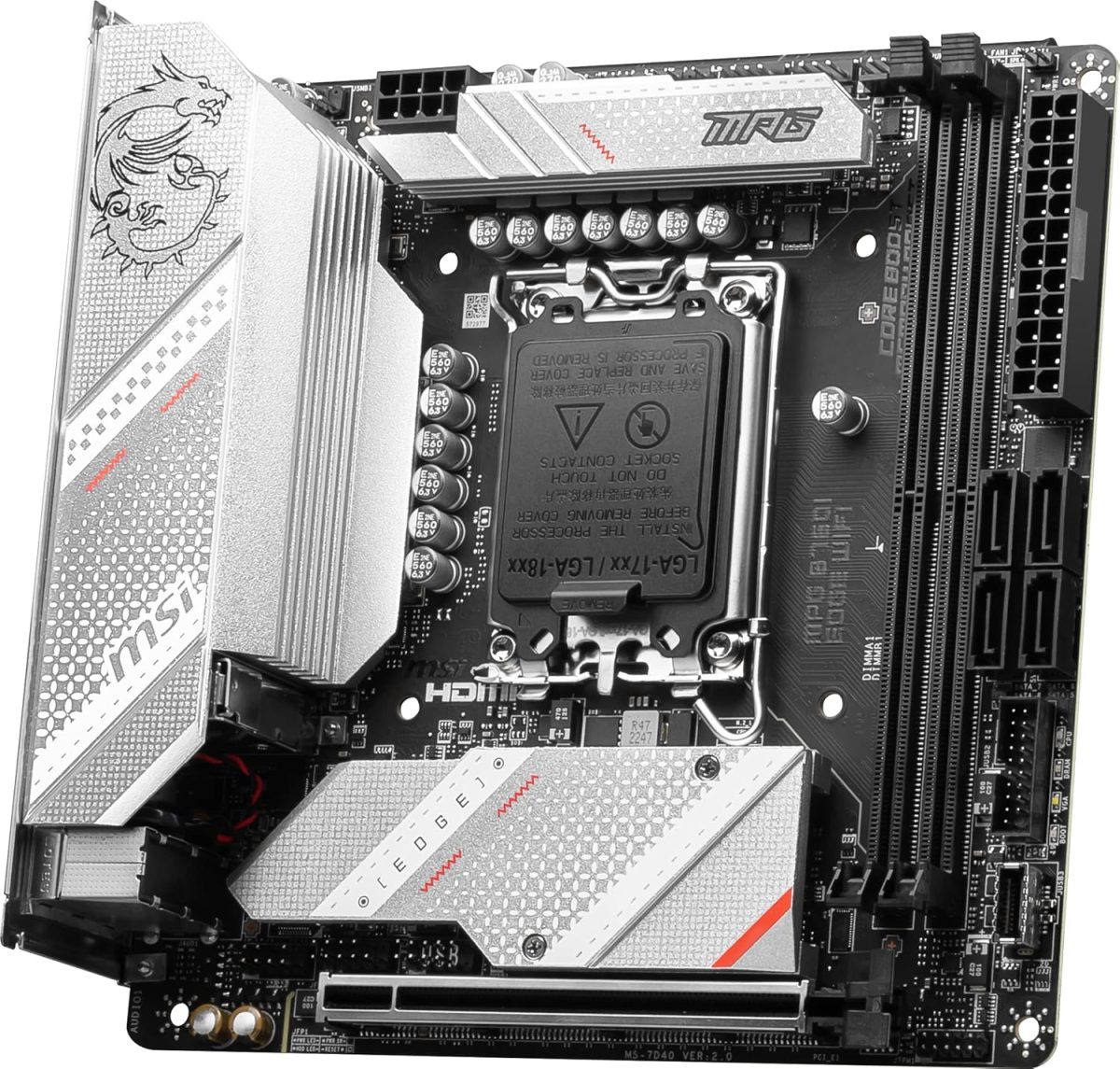

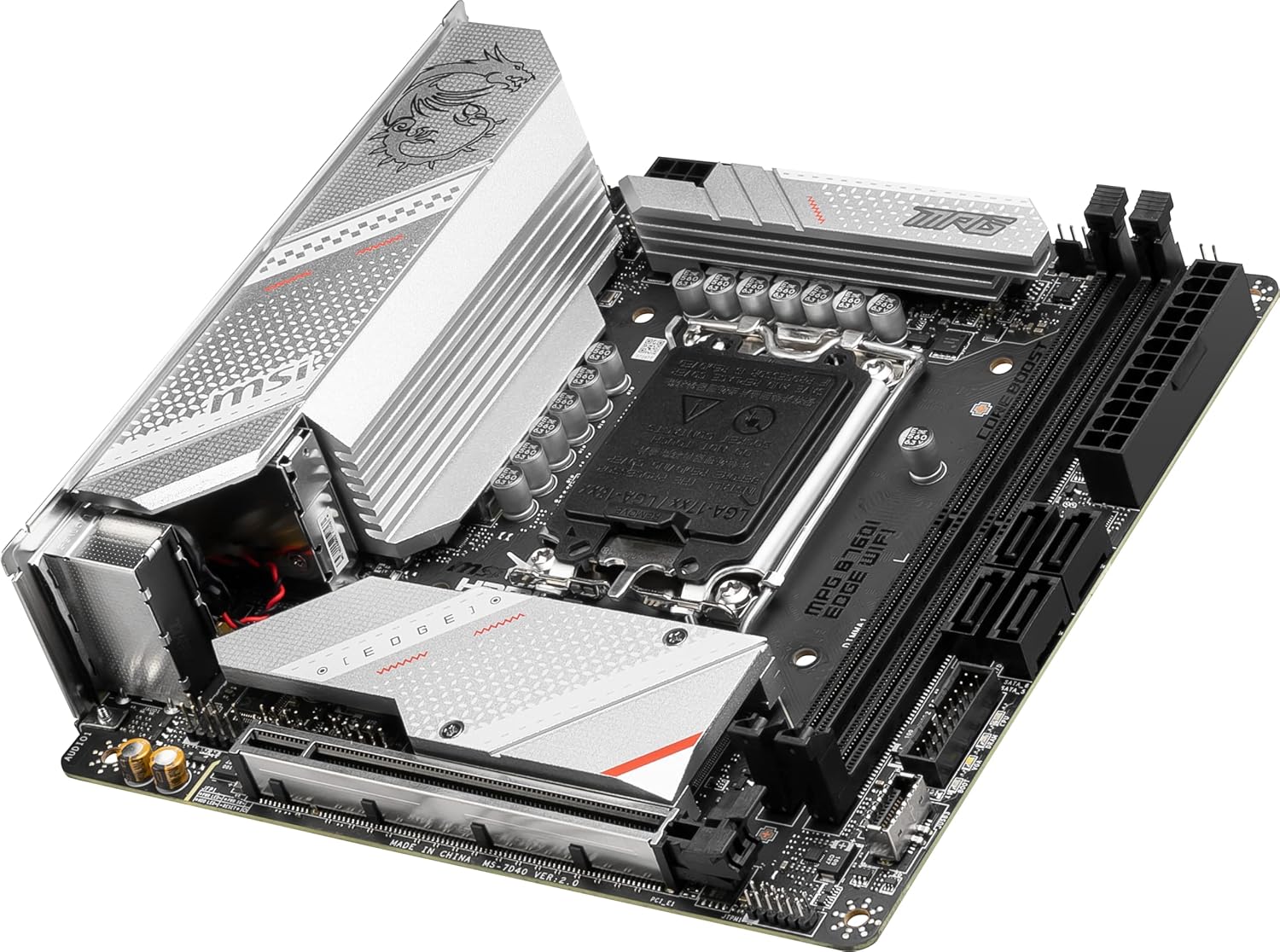

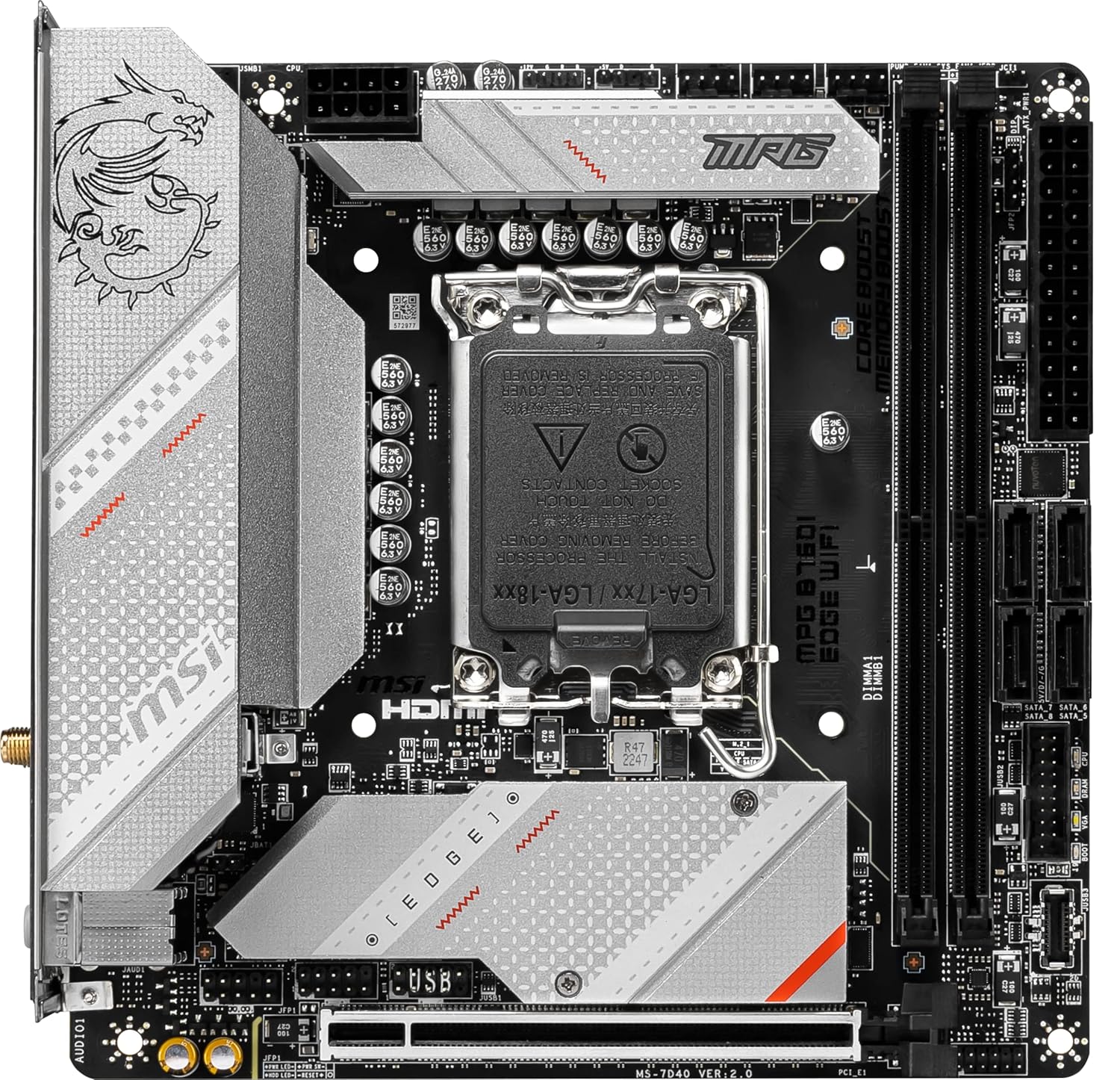

The MPG B760I EDGE WIFI is a gaming oriented Mini-ITX motherboard constructed around the latest Intel B760 chipset that delivers both performance and style.

Supports Intel Core 12th & 13th Gen Processors (LGA 1700) 8-Phase Direct CPU Power with 90A DrMOS 1 x PCIe 5.0 x16 slot 2 x DDR5 DIMMs with Memory Boost: Dual Channel (96GB Max. / 7200MHz OC) Lightning Gen4 M.2 & M.2 Shield Frozr 7.1 HD Audio with Audio Boost Realtek 2.5G LAN, Intel Wi-Fi 6E & Bluetooth 5.3

Supports Intel Core 12th & 13th Gen Processors

The MPG B760I EDGE WIFI motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors. Form Factor: Mini-ITX Socket Type: LGA 1700 Chipset: Intel B760

Direct 8+1+1 phase VRM power with 90A DrMOS

With its exclusive Core Boost technology, the MPG B760I EDGE WIFI is able to sustain heavy CPU power loads to support system-demanding game settings: 1. Digital PWM IC 2. 8-Phase Direct CPU Power (DrMOS / 90A) 3. 1-Phase GT Power 4. 1-Phase AUX Power

Integrated Cooling Features

VRM Cooling: Features an extended heatsink and 7W/mK thermal pads and additional choke thermal pads for improved thermal dissipation. . PCB Cooling: Premium 8-layer server-grade printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability. . SSD Cooling: M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.

Fortified PCIe 5.0 x16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference: 1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor)

2 x DDR5 Dual Channel (7200+ MHz OC)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. . Memory OC profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability. *1DPC 1R Max. overclocking frequency 7200+ MHz, supports Intel XMP.

Gen4 M.2 Connectors

The MPG B760I EDGE WIFI motherboard features MSI’s Gen4 M.2 slots: 2 x Gen4 x4 64Gbps slots* *1 with M.2 Shield Frozr

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

Wi-Fi 6E & Bluetooth 5.3

2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience. Wi-Fi 6E: Features the latest Intel Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology. USB 3.2 Gen 2 Type-C: Connect to devices and transfer files at high bandwidth rates: 10Gbps. HD Audio: 7.1-Channel High Definition Audio with Audio Boost

Add to Cart

Customer Reviews

4.1 out of 5 stars 71

4.4 out of 5 stars 46

4.4 out of 5 stars 46

4.2 out of 5 stars 57

—

—

Price

₹22,243.00₹22,243.00
— no data

— no data

— no data

— no data

— no data

MSI Gaming Series
MPG MAG MAG MAG MAG MPG

Form Factor
Mini-ITX Micro-ATX Micro-ATX Micro-ATX ATX Mini-ITX

VRM
8-Phase Direct CPU Power / 90A DrMOSSPS 12 Duet Rail Power System / 75A DrMOS 12 Duet Rail Power System / 75A DrMOS 12 Duet Rail Power System / 75A DrMOS 12 Duet Rail Power System / 75A DrMOS 8-Phase Direct CPU Power / 90A DrMOS

DIMM Slots
2 x DDR5 (7200+MHz/OC) 4 x DDR4 (5333+MHz/OC) 4 x DDR4 (5333+MHz/OC) 4 x DDR4 (5333+MHz/OC) 4 x DDR4 (5333+MHz/OC) 2 x DDR4 (5333+MHz/OC)

PCI-E x16 Slots
1 x 5.0 1 x 5.0 / 1 x 4.0 1 x 5.0 / 1 x 4.0 1 x 5.0 / 1 x 4.0 1 x 5.0 / 1 x 3.0 1 x 5.0

M.2 Slots
2 x Gen4 x4 2 x Gen4 x4 2 x Gen4 x4 2 x Gen4 x4 3 x Gen4 x4 2 x Gen4 x4

M.2 Shield Frozr
Single-sided Single-sided Single-sided Single-sided Single-sided Single-sided

Audio
8-Channel (7.1) HD Audio with Audio Boost 8-Channel (7.1) HD Audio with Audio Boost 8-Channel (7.1) HD Audio with Audio Boost 8-Channel (7.1) HD Audio with Audio Boost 8-Channel (7.1) HD Audio with Audio Boost 8-Channel (7.1) HD Audio with Audio Boost

LAN
Realtek 2.5G LAN Realtek 2.5G LAN Realtek 2.5G LAN Realtek 2.5G LAN Realtek 2.5G LAN Realtek 2.5G LAN

WiFi & Bluetooth
Intel Wi-Fi 6E module, Bluetooth 5.3 Intel Wi-Fi 6E module, Bluetooth 5.3 Intel Wi-Fi 6E module, Bluetooth 5.3 Intel Wi-Fi 6E module, Bluetooth 5.3 Intel Wi-Fi 6E module, Bluetooth 5.3 Intel Wi-Fi 6E module, Bluetooth 5.3

12TH & 13TH GEN CORE, HIGH PERFORMANCE – The MPG B760I EDGE WIFI (Mini-ITX) employs an 8+1+1 Direct (90A, DrMOS) VRM for the Intel B760 chipset (LGA 1700, 12th & 13th Gen Core) with Core Boost architecture for high CPU core count power demands
DDR5 MEMORY, PCIe 5.0 x16 SLOT – 2 x DDR5 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 7200+ MHz); Primary PCIe x16 slot supports PCIe 5.0 (128Gbps) and includes Steel Armor
DUAL M.2 CONNECTORS – Storage options include 2 x M.2 Gen4 x4 64Gbps slots, the primary slot with Shield Frozr to prevent thermal throttling during hyper-fast SSD access

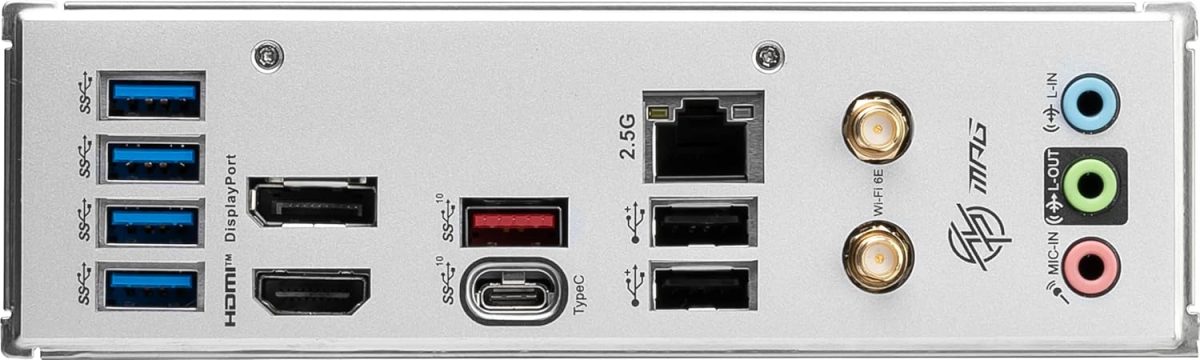

WI-FI 6E CONNECTIVITY – Network hardware includes an Intel Wi-Fi 6E module with Bluetooth 5.3 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2 Type-C (10Gbps), HDMI 2.1 & DisplayPort 1.4, and 7.1 HD Audio with Audio Boost
