MSI MPG X870E Carbon WiFi Motherboard, ATX – Supports AMD Ryzen 9000/8000/7000 Series Processors, AM5, DDR5 Memory Boost 8400+MHz/OC, 3 x PCIe 5.0 x16, 1 x M.2 Gen5, Wi-Fi 7

Price: ₹90,999 - ₹50,300.00
(as of Oct 23, 2025 06:14:25 UTC – Details)

From the manufacturer

Z890 GAMING PLUS WIFI

MSI Business & Productivity

MSI Business & Productivity specializes in home & commercial office computing hardware with a design emphasis on productivity and user comfort.

For business professionals searching for elegant, world class solutions engineered with cutting edge components, premium reliability and refined aesthetics, MSI Business & Productivity offers a broad array of innovative products to ensure a competitive working environment.

MPG X870E CARBON WIFI

Perform in Style

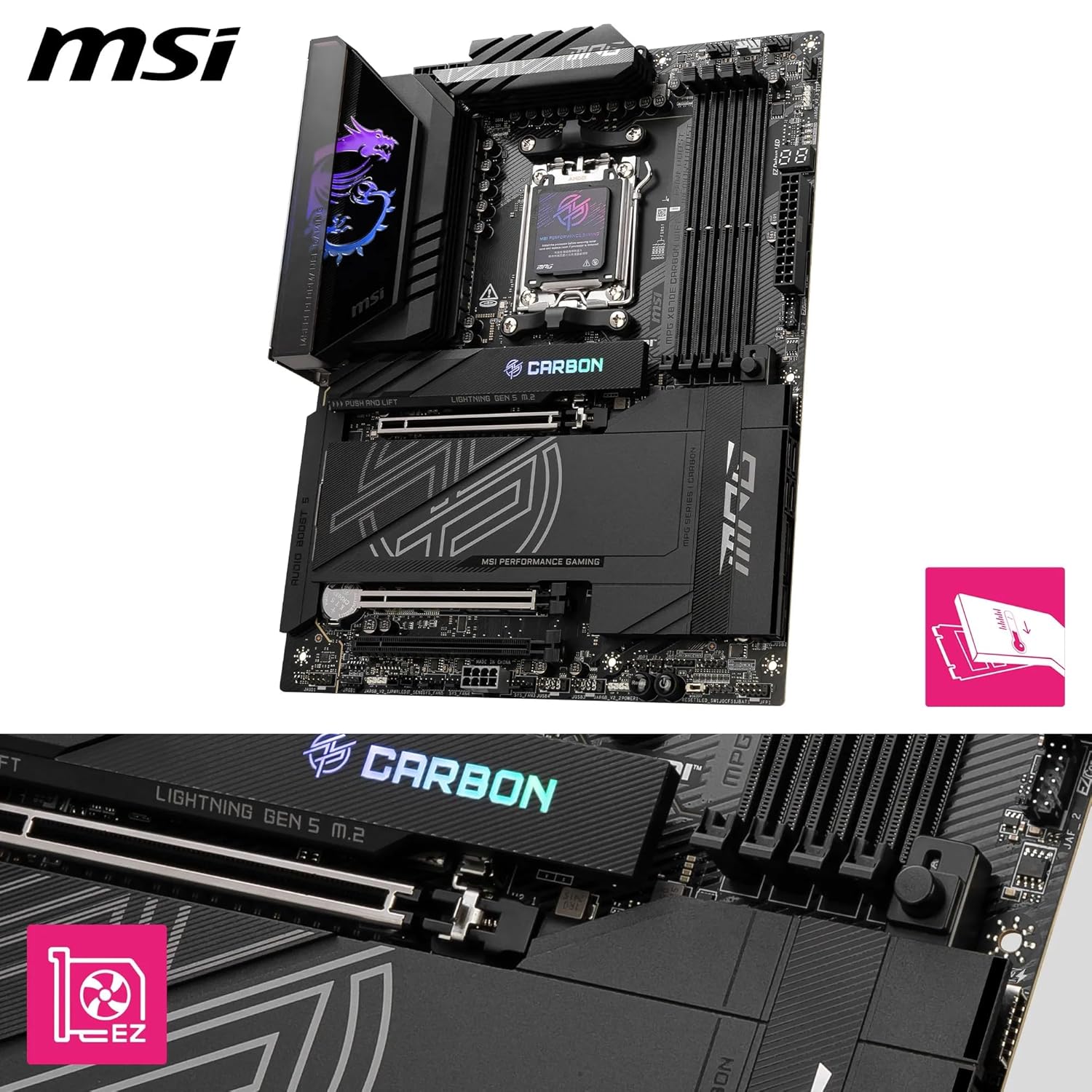

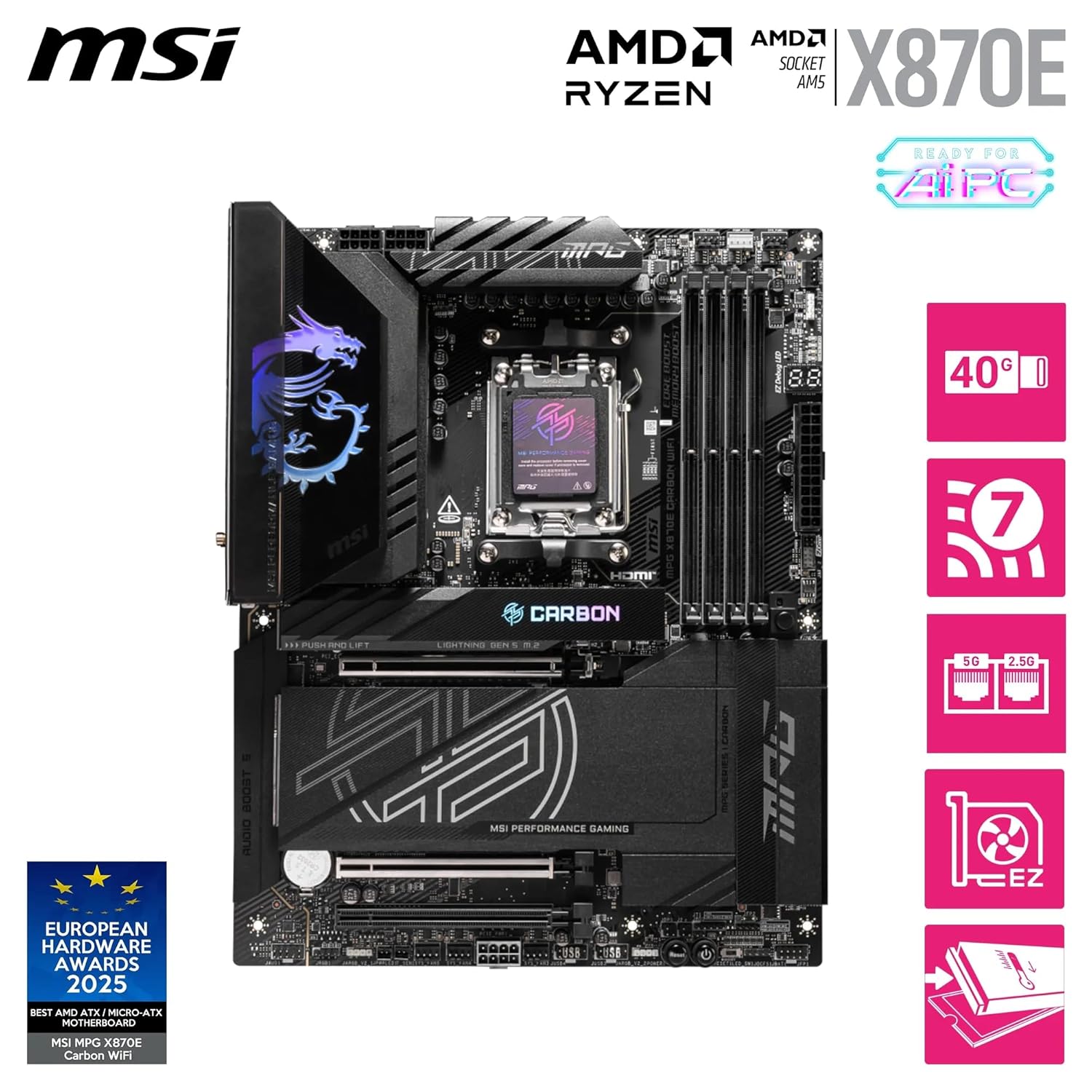

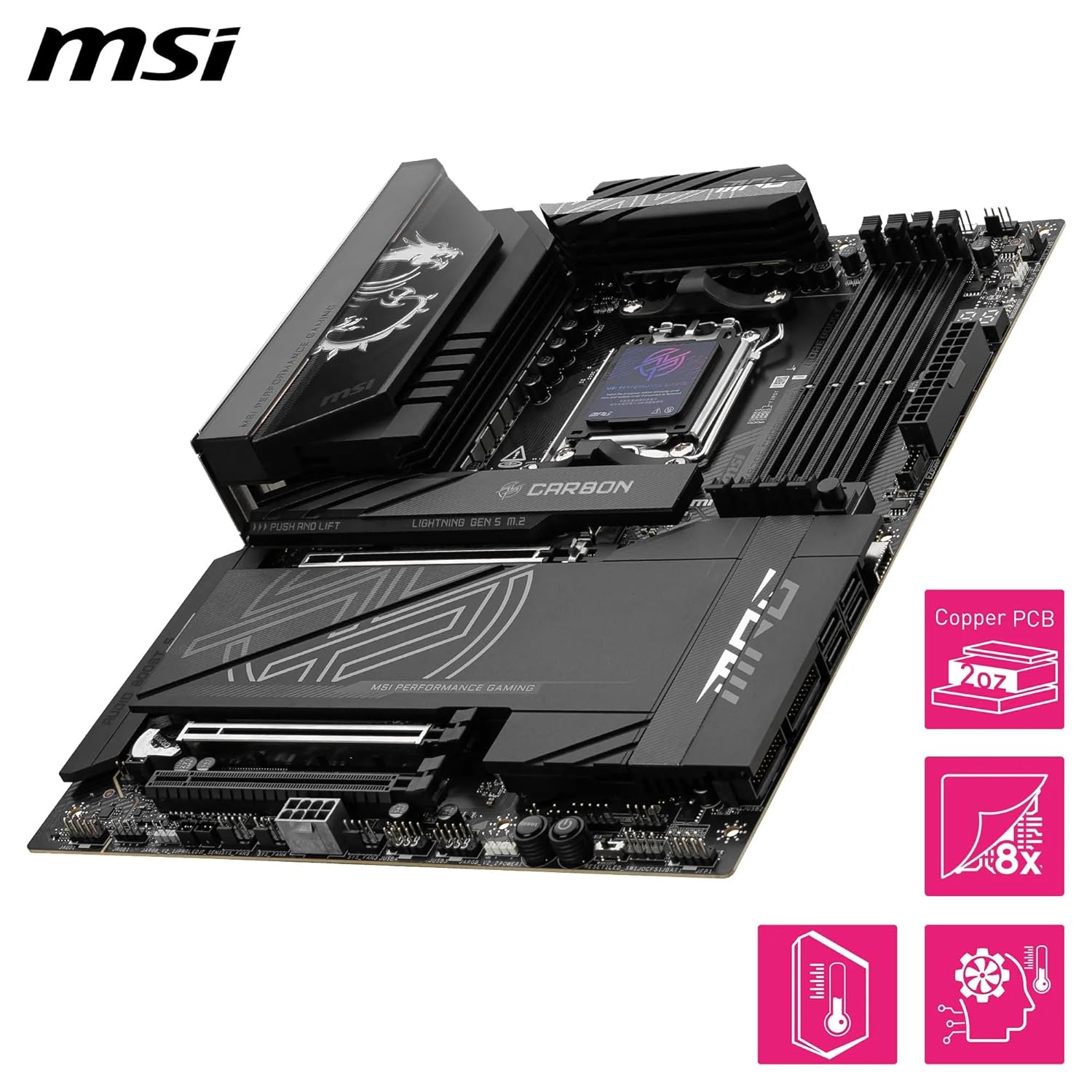

The MPG X870E CARBON WIFI is a gaming oriented ATX motherboard with an 18 Duet Rail Power System, constructed around the latest AMD X870E chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, Wi-Fi 7, DDR5 and premium Frozr design that delivers both performance and style.

Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors (Zen 5, Zen 4, AM5) Ultra Power: 18 Duet Rail Power System with 110A SPS, 8-layer PCB, Server Grade PCB material 4 x DDR5 DIMMs with Memory Boost: Dual Channel (256GB Max. / 8400MT/s OC) 2 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 Lightning Gen5 & Gen4 M.2 slots with double-sided M.2 Shield Frozr Ultra Connect: USB4 Type-C (40Gbps), Realtek 5G & 2.5G LAN, Full-speed Wi-Fi 7 solution, Bluetooth 5.4 8-Channel (7.1) USB High Performance Audio with Audio Boost 5 EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release, EZ Antenna, Smart Button

Rzyen 9000, X870E Chipset, Ultra Power, Frozr Design, DDR5 Memory

Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors

The MPG X870E CARBON WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors. Form Factor: ATX Socket Type: AM5 Chipset: AMD X870E

Ultra Power – 18 Duet Rail Power System with 110A Smart Power Stage

With exclusive Core Boost technology and EZ OC Tuning functions, the MPG X870E CARBON WIFI is able to sustain heavy CPU power loads to support system-demanding game settings: Digital PWM IC 18 Duet Rail Power System (110A / SPS) 2 Phase SOC Power 1 Phase MISC Power

Frozr Design

Frozr Guard: Extended Heatsink design, Heat-pipe, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation. Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers – including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans. Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

4 x DDR5 Dual Channel (8400+ MT/s OC)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules. EXPO Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability. *1DPC 1R Max. overclocking frequency 8400+ MT/s, supports AMD EXPO.

2 x PCI-e 5.0 x16 Slots, Gen5 M.2, EZ DIY, Ultra Connect

Fortified PCIe 5.0 x16 Slot

The MSI PCI Express Steel Armor II slot is reinforced with additional solder points on the motherboard, supporting 21% more graphics card weight compared to 1st Gen Steel Armor. 2 x PCIe 5.0/4.0/3.0 x16 slots* (one with Steel Armor II** and EZ PCIe Release) 1 x PCIe 4.0/3.0 x16 slot* *Supports x16x0x4 / x8x4x4 **MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

Gen5 M.2 Connector

The MPG X870E CARBON WIFI motherboard features MSI’s M.2 slots: 2 x Gen5 x4 128Gbps slots (with double-sided M.2 Shield Frozr) 2 x Gen4 x4 64Gbps slots (with double-sided M.2 Shield Frozr)

EZ DIY

The DIY Friendly designs optimize the assemble process and experience. EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don’t have to worry about lost screws or overtightening. EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws. EZ PCIe Release: With just one press of a button, users can easily install or remove the graphics card with one hand. EZ Antenna: MSI’s latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna’s placement. Smart Button: By simply pressing the Smart Button, users can reset the system or turn Mystic Light on/off without entering the BIOS.

Ultra Connect

5G LAN + 2.5G LAN: A Realtek 5Gbps LAN & Realtek 2.5Gbps LAN controller delivers a premium network gaming experience. Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology. USB4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 4K@60Hz display support.

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.3 out of 5 stars 67

4.4 out of 5 stars 307

4.2 out of 5 stars 1,033

4.5 out of 5 stars 284

Price

₹25,349.00₹25,349.00 ₹35,953.00₹35,953.00 ₹42,239.00₹42,239.00 ₹50,300.00₹50,300.00

MSI Gaming Series
PRO MAG MPG MPG

Form Factor
ATX ATX ATX ATX

VRM
14 Duet Rail Power System / 60A SPS 14 Duet Rail Power System / 80A SPS 14 Duet Rail Power System / 80A SPS 18 Duet Rail Power System / 110A SPS

DIMM Slots
4 x DDR5 (8200+ MT/s /OC) 4 x DDR5 (8400+ MT/s /OC) 4 x DDR5 (8400+ MT/s /OC) 4 x DDR5 (8400+ MT/s /OC)

PCI-E x16 Slots
1 x 5.0 / 1 x 4.0 1 x 5.0 / 1 x 4.0 1 x 5.0 / 1 x 4.0 2 x 5.0 / 1 x 4.0

M.2 Slots
2 x Gen5 x4 / 1 x Gen4 x4 / 1 x Gen4 x2 2 x Gen5 x4 / 1 x Gen4 x4 / 1 x Gen4 x2 2 x Gen5 x4 / 2 x Gen4 x4 1 x Gen5 x4 / 3 x Gen4 x4

M.2 Shield Frozrctor
1 x Single-sided 1 x Double-sided / 3 x Single-sided 1 x Double-sided / 3 x Single-sided 4 x Double-sided

Audio
8-Channel (7.1) HD Audio with Audio Boost 8-Channel (7.1) USB High Performance Audio with Audio Boost 5 8-Channel (7.1) USB High Performance Audio with Audio Boost 5 8-Channel (7.1) USB High Performance Audio with Audio Boost 5

LAN
Realtek 5G LAN Realtek 5G LAN Realtek 5G LAN Realtek 5G LAN + Realtek 2.5G LAN

WiFi & Bluetooth
Wi-Fi 7, Bluetooth 5.4 Wi-Fi 7, Bluetooth 5.4 Wi-Fi 7, Bluetooth 5.4 Wi-Fi 7, Bluetooth 5.4

POWERFUL VRM, Ryzen 7000 READY – The MPG X870E CARBON WIFI employs an 18+2+1 phase Duet Rail VRM with 110A Power Stage for the AMD X870 chipset (AM5, Ryzen 7000 ready). An Extended Heatsink with a Heat-Pipe manages thermals effectively by effectively moving heat away from the VRMs.
Premium Thermal Design – Heavy plated MOSFET heatsink with heat-pipe / high-quality 7W/mK MOSFET thermal pads / extra choke thermal pads / onboard M.2 Shield Frozr
Lightening Gen 5 – The latest PCIE 5.0 solution with up to 128gb/s bandwidth for maximum transfer speed.
Dual LAN – Dual premium network solution for both intranet and internet, offering a smooth gaming experience for effective network connection.
WI-FI 7 CONNECTIVITY – Network hardware includes a Wi-Fi 7 with Bluetooth 5.4 & 5 and 2.5 Gbps LAN controller; Rear ports include USB 3.2 Gen 1 Type-A (5Gbps), HDMI 2.1 and 7.1 HD Audio with Audio Boost 5.
