Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
Original price was: ₹32,100.00.₹29,999.00Current price is: ₹29,999.00.
Pick up from the Woodmart Store
To pick up today
Free
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
Warranty 1 year
Free 30-Day returns
Payment Methods:
Price: ₹32,100 - ₹29,999.00
(as of Oct 20, 2025 20:45:58 UTC – Details)
From the manufacturer
MSI: For Gamers & Creators
MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today’s performance limits.
Game in Style

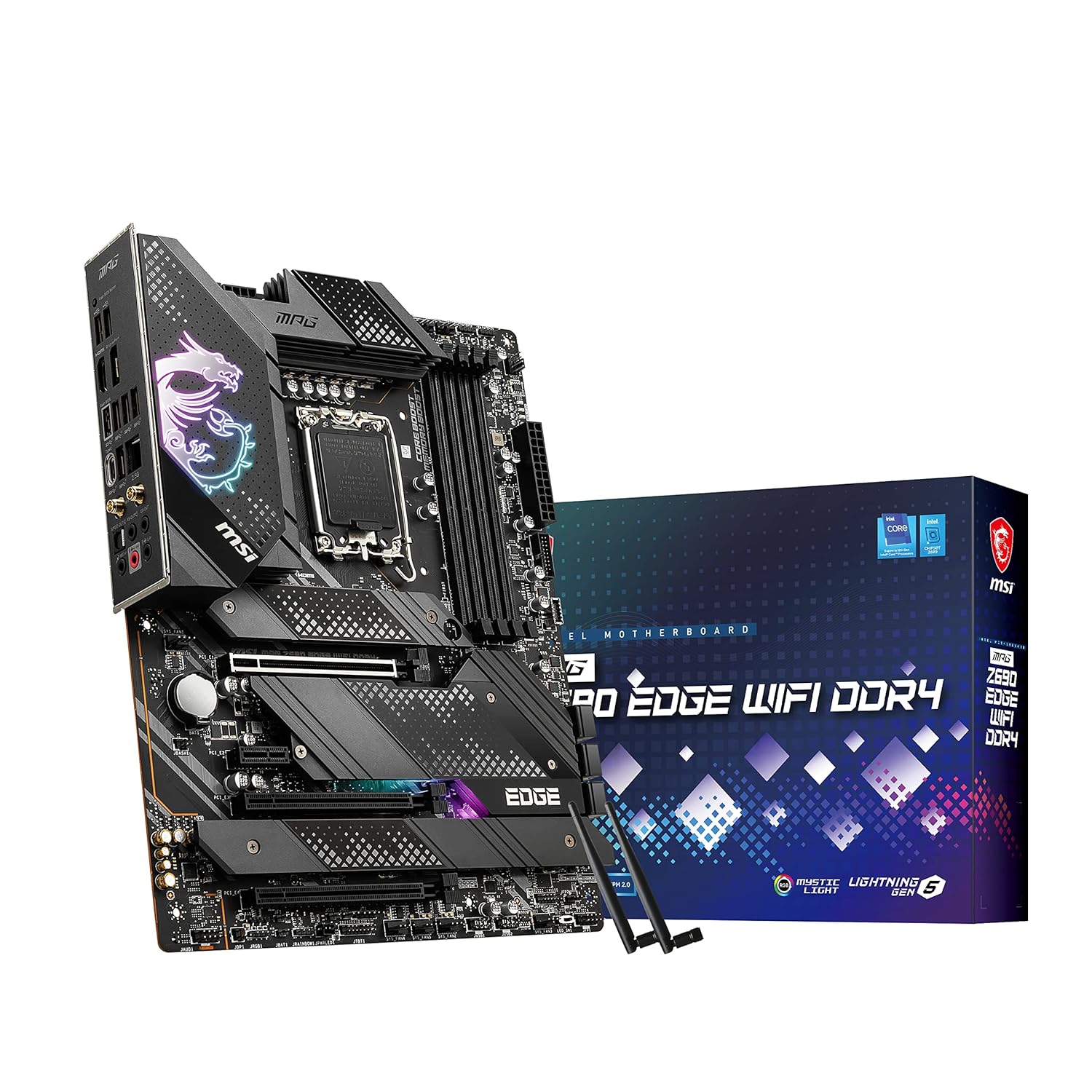

For competitive gamers looking for premium 12th Gen Intel Core performance with PCI-e 5.0 x16 graphics card architecture, improved DDR4 memory, and a vast array of M.2 Gen4 storage options, the MSI MPG Z690 EDGE WIFI DDR4 gaming motherboard is perfect for gaming in style.
Supports Intel Core 12th Gen Processors (LGA 1700) 4 x DDR4 DIMMs, Memory Boost (5200MHz+ OC) Direct 16+1+1 Phase Power Design with 75A SPS 4 x M.2 Gen4 Slots with Shield Frozr 1 x PCI-e 5.0 x16 (128GB/s), 2 x PCI-e 3.0 x16 Graphic Card Slots Intel I225-V 2.5G LAN Wi-Fi 6 with Bluetooth 5.2 USB 3.2 Gen 2×2 Type-C (20Gbps)

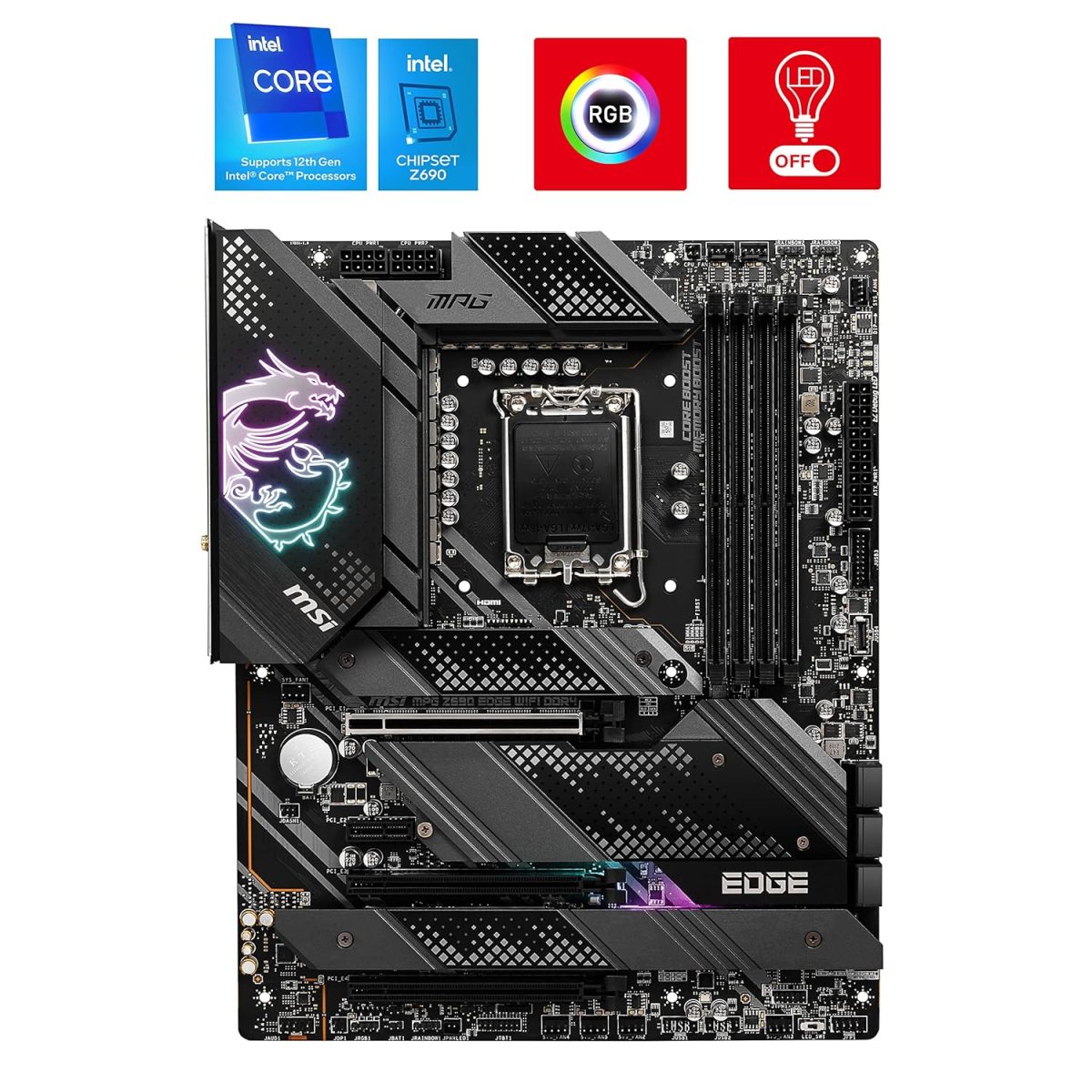

Supports Intel Core 12th Gen Processors
The MPG Z690 EDGE WIFI DDR4 motherboard supports 12th Gen Intel Core processors.
Form Factor: ATXSocket Type: LGA 1700Chipset: Intel Z690
Direct 16+1+1 Phase VRM with 75A SPS
The robust VRM design features MSI exclusive Core Boost Technology powered by 2 x 8-pin CPU power connectors:
Digital PWM IC1 Phase GT Power16 Direct Power Phases (Smart Power Stage / 75A)1 Phase AUX Power
A 6-layer server-grade PCB with 2oz of thickened copper improves performance & system stability.
Complete Cooling Solution
VRM Cooling: Features heavy-plated heatsinks, connecting heat pipe, choke and 7W/mK thermal pads for improved thermal dissipation.
SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.
Chipset Cooling: Includes an enlarged heatsink.
4 x DDR4 Dual Channel (5200+ MHz Overclocked*)
Memory Boost: A fully-isolated circuit delivers pure DDR4 data signals for optimal gaming and overclocking performance.
XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for improved memory speed and stability.
*1DPC 1R Max. overclocking frequency 5200+ MHz, supports Intel XMP.

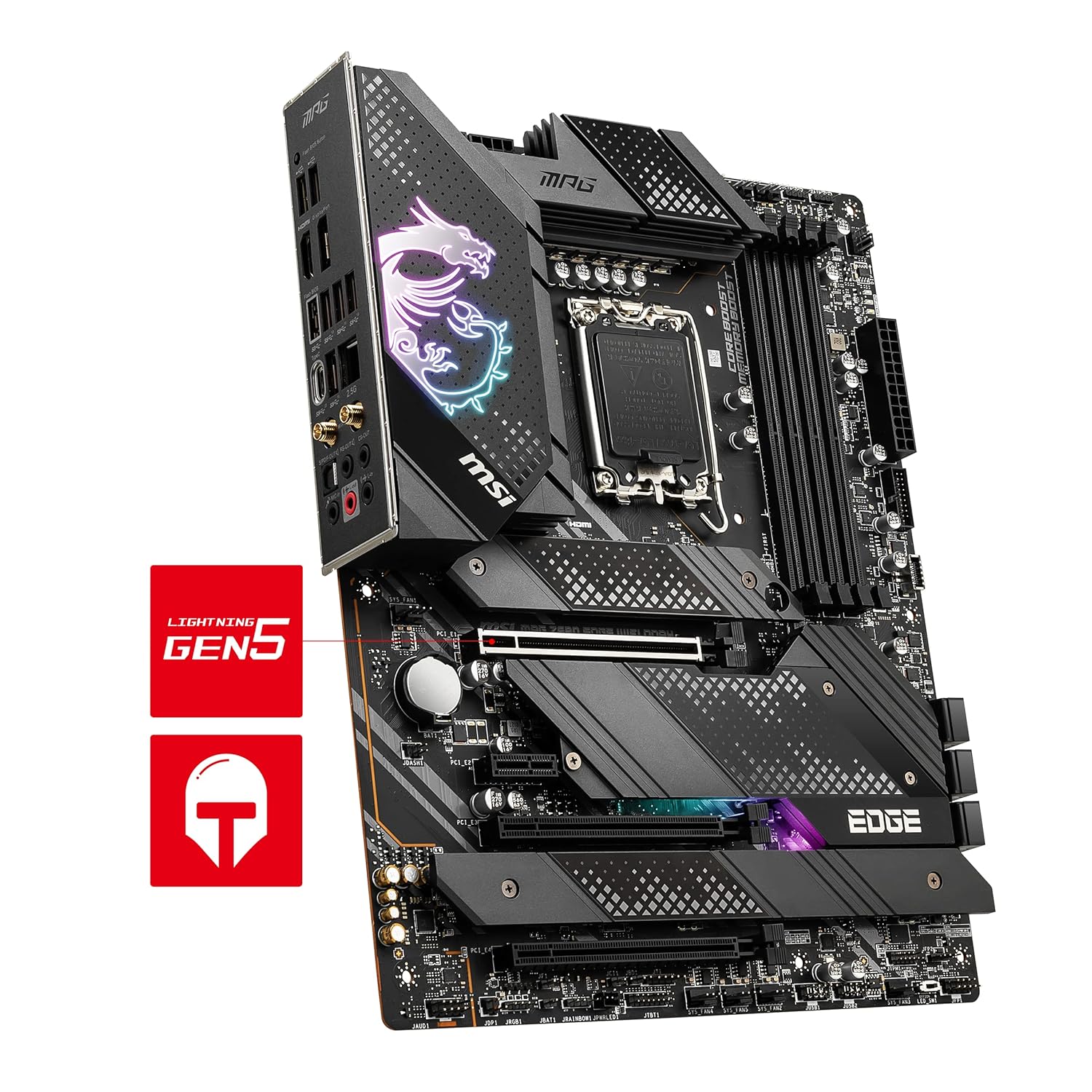

Fortified PCI-e 5.0 x16
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points* to support the weight of heavy graphics cards and shields the point of contact from electromagnetic interference:
1 x PCI-e 5.0 x16 slot (with Steel Armor)2 x PCI-e 3.0 x16 slots
*All-new MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Gen4 M.2 Connectors
The MPG Z690 EDGE WIFI DDR4 motherboard features MSI’s latest M.2 slots (Intel Optane supported):
4 x Gen4 x4 64Gb/s slots
*M.2 specifications may vary depending on the CPU installed.
M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

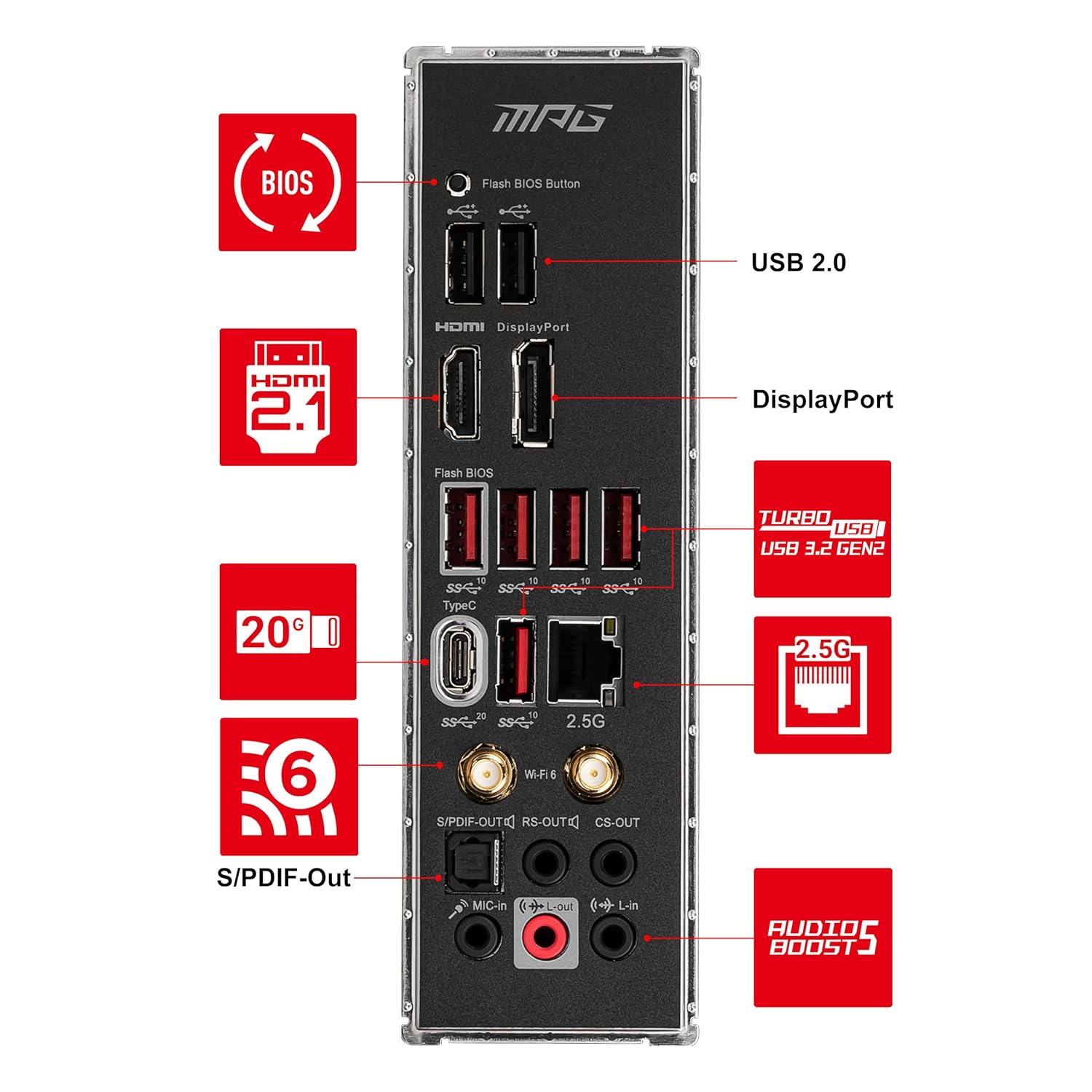

Wi-Fi 6 & Bluetooth 5.2
2.5G LAN: An Intel I225-V 2.5Gbps LAN controller delivers a premium network gaming experience.
USB 3.2 Gen 2×2 Type-C: Enables ultra-fast 20Gbps data transfer rates between devices.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost 5 & S/PDIF output.
Wi-Fi 6: Features an Intel Wi-Fi 6 module & Bluetooth 5.2 technology.
Add to Cart
Add to Cart
Customer Reviews
4.5 out of 5 stars 1,283
4.5 out of 5 stars 1,283
4.5 out of 5 stars 1,283
4.5 out of 5 stars 1,283
4.5 out of 5 stars 1,283
Price
— no data
— no data
₹31,599.00₹31,599.00 ₹29,999.00₹29,999.00
— no data
MSI Gaming Series
MAG MAG MAG MPG MPG
Form Factor
ATX ATX ATX ATX ATX
VRM
16+1+1 Duet Rail Power System, 70A SPS 16+1+1 Duet Rail Power System, 70A SPS 16+1+1 Duet Rail Power System, 70A SPS Direct 16+1+1 Phase Power System, 75A SPS Direct 19+2 Phase Power System, 105A SPS
DIMM Slots
DDR5 x 4 (6400+MHz/OC) DDR4 x 4 (5200+MHz/OC) DDR5 x 4 (6400+MHz/OC) DDR4 x 4 (5200+MHz/OC) DDR5 x 4 (6666+MHz/OC)
PCI-e x16 Slots
5.0 x 1 / 3.0 x 2 5.0 x 1 / 3.0 x 2 5.0 x 1 / 3.0 x 2 5.0 x 1 / 3.0 x 2 5.0 x 2 / 3.0 x 1
M.2 Slots
4.0 x 3 / 3.0 x 1 4.0 x 3 / 3.0 x 1 4.0 x 3 / 3.0 x 1 4.0 x 4 4.0 x 4 / 3.0 x 1
M.2 Shield Frozr
Top Top Top Top Top
Audio
8-Channel (7.1) HD Audio with Audio Boost 5 8-Channel (7.1) HD Audio with Audio Boost 5 8-Channel (7.1) HD Audio with Audio Boost 5 8-Channel (7.1) HD Audio with Audio Boost 5 8-Channel (7.1) HD Audio with Audio Boost 5
LAN
Intel I225V 2.5G LAN Intel I225V 2.5G LAN Intel I225V 2.5G LAN Intel I225V 2.5G LAN Intel I225V 2.5G LAN
WiFi & Bluetooth
no data
Intel Wi-Fi 6, Bluetooth 5.2 Intel Wi-Fi 6E, Bluetooth 5.2 Intel Wi-Fi 6, Bluetooth 5.2 Intel Wi-Fi 6E, Bluetooth 5.2
12TH GEN CORE, HIGH PERFORMANCE – The MPG Z690 EDGE WIFI DDR4 employs a powerful VRM platform for the Intel Z690 chipset (LGA 1700, 12th Gen Core ready) with a Direct 16 phases power 75A SPS (8+8 Pin connector)
PREMIUM COOLING & ARMOUR – The VRM heatsink design includes aluminum cover, heatpipe & 7W/mK MOSFET thermal pads; a 6-layer PCB base & enlarged chipset heatsink help dissipate heat; robust PCIe x16 steel armour ensures excellent durability under heavy loading
MULTI-GPU SLOTS, HIGH RAM SPEEDS – The primary PCIe 5.0 x16 slot (with steel frame) supports AMD CrossFire technology (via secondary/tertiary PCIe 3.0 x16 slots); quad DDR4 DIMMs with Memory Boost architecture enable faster SDRAM for overclocking (5200+MHz/OC)
QUADRUPLE M.2 CONNECTORS – Storage includes 4 x M.2 Gen4 x4 64Gb/s slots (Intel Optane supported) with Shield Frozr to prevent thermal throttling during hyper-fast SSD access
WI-FI 6 CONNECTED – Features the latest Wi-Fi 6 module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology; Fixed ports include USB 3.2 Gen 2×2 Type-C (20Gb/s), 4K/60Hz HDMI 2.1 display, Intel 2.5G LAN, and 7.1 HD Audio with Audio Boost 5
Customers find this motherboard to be a class motherboard that offers top-notch performance for gaming and creation, with one customer noting it maintains stability under load. They appreciate its many features, with one highlighting its extensive BIOS options for overclocking, and find it user-friendly. The wireless connectivity receives mixed feedback, with some customers praising the Wi-Fi 6E support while others report ARGB sync issues.
