MSI PRO Z790-A MAX WiFi Motherboard, ATX – Supports 14th/13th/12th Gen Intel Core Processors, LGA 1700, DDR5 Memory Boost 7800+MHz/OC, PCIe 5.0 & 4.0 x16, 4 x M.2 Gen4, Wi-Fi 7, 2.5G LAN

Price: ₹46,999 - ₹30,169.00
(as of Oct 22, 2025 17:38:21 UTC – Details)

From the manufacturer

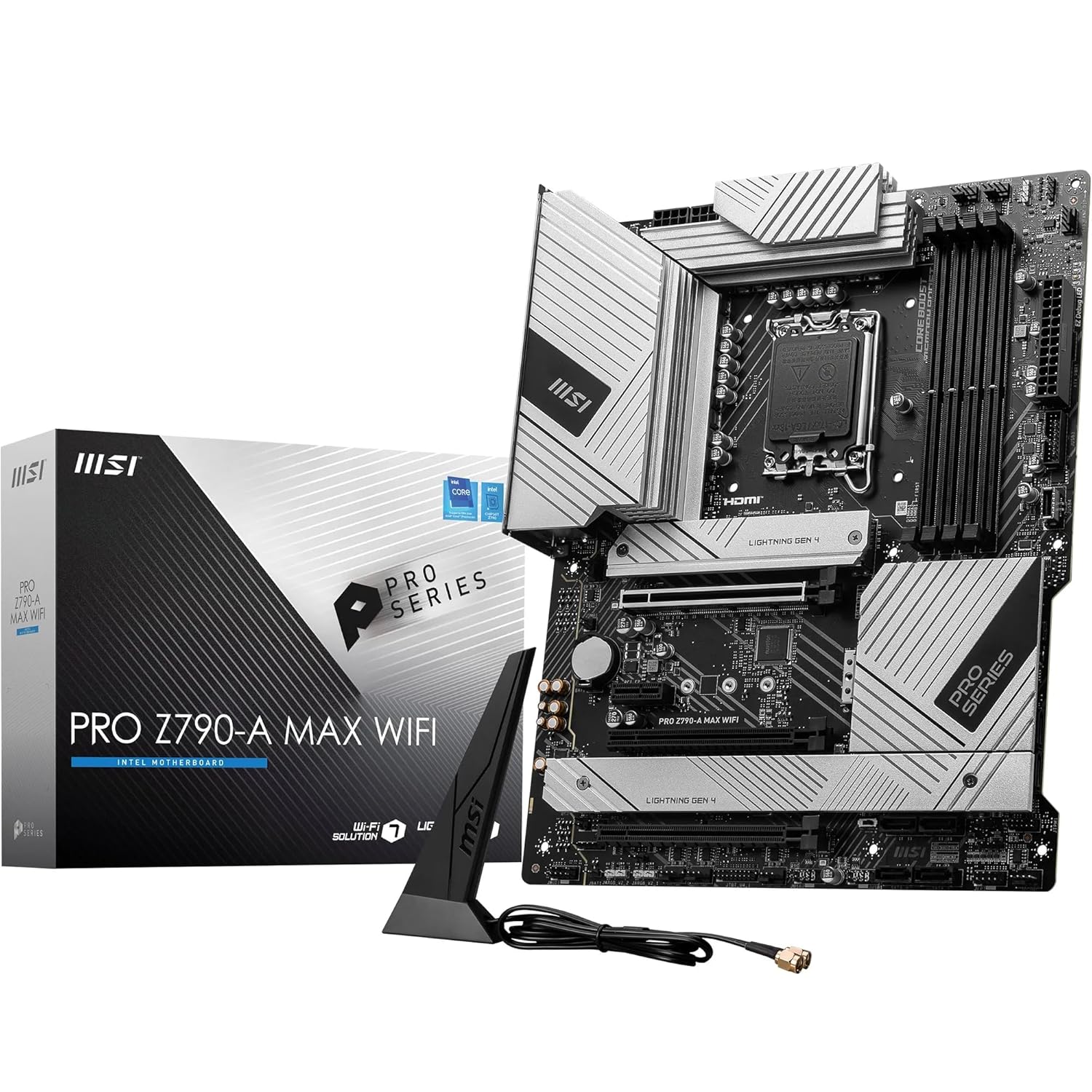

PRO Z790-A MAX WIFI

MSI Business & Productivity

MSI Business & Productivity specializes in home & commercial office computing hardware with a design emphasis on productivity and user comfort.

For business professionals searching for elegant, world class solutions engineered with cutting edge components, premium reliability and refined aesthetics, MSI Business & Productivity offers a broad array of innovative products to ensure a competitive working environment.

PRO Z790-A MAX WIFI

Business Elegance

For creative professionals looking to increase productivity and improve efficiency, the MSI PRO Z790-A MAX WIFI offers a quality platform with the capacity to support a broad spectrum of both cutting-edge and innovative hardware.

Supports Intel Core 12th & 13th Gen Processors (LGA 1700) 16 Duet Rail Power System with 80A Smart Power Stage 4 x DDR5 DIMMs with Memory Boost: Dual Channel (192GB Max. / 7800MHz OC) 1 x PCIe 5.0 x16 slot & 1x PCIe 4.0 x16 slot Lightning Gen4 M.2 & M.2 Shield Frozr USB 3.2 Gen 2×2 Type-C (20Gbps) Intel 2.5G LAN, Wi-Fi 7 & Bluetooth 5.4 7.1-Channel USB High Performance Audio with Audio Boost 5

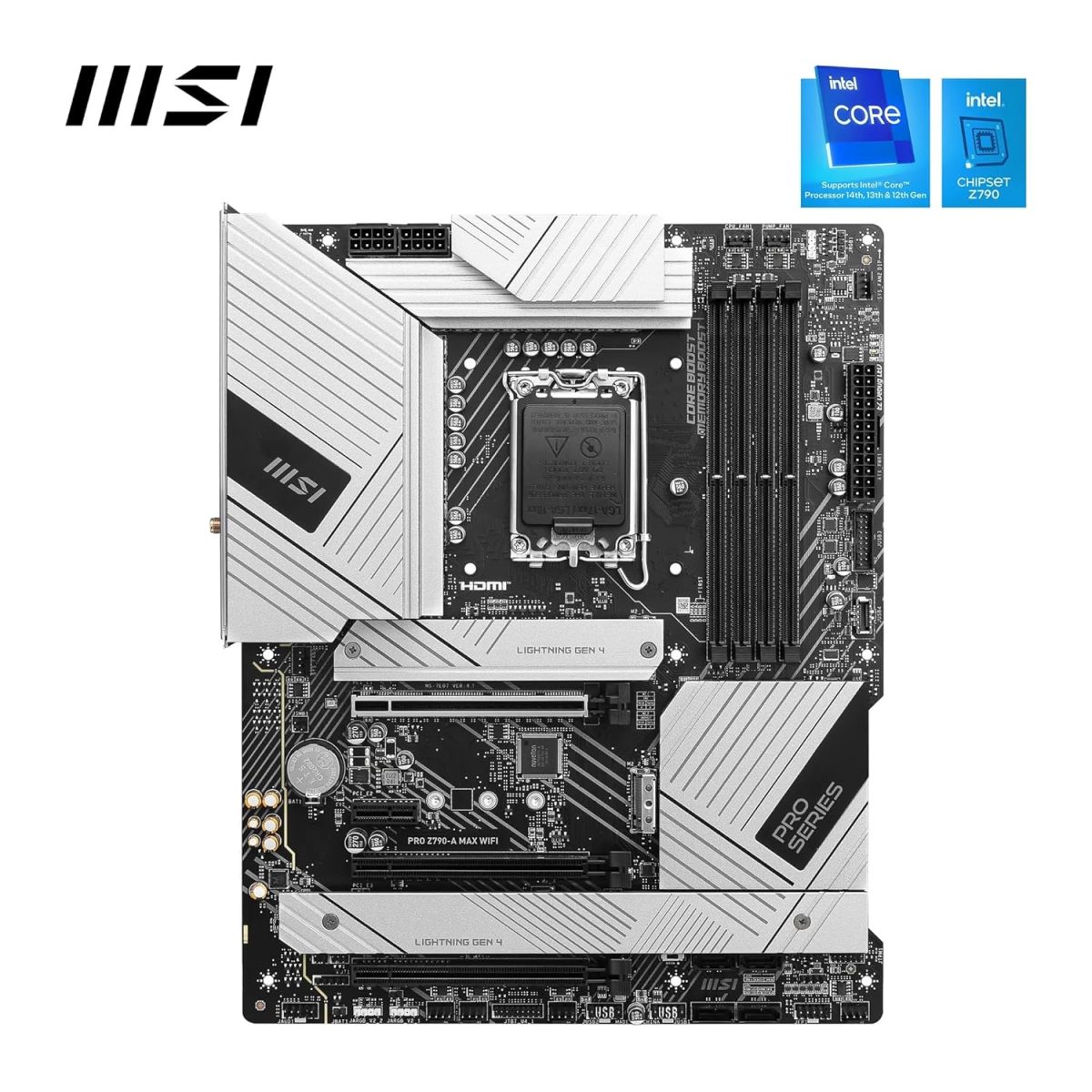

Supports Intel Core 12th & 13th Gen Processors

The PRO Z790-A MAX WIFI motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors. Form Factor: ATX Socket Type: LGA 1700 Chipset: Intel Z790

16 Duet Rail Power System with 80A Smart Power Stage

With its dual 8-pin power connectors and exclusive Core Boost technology, the PRO Z790-A MAX WIFI is able to sustain heavy CPU power loads to support system-demanding work settings: 1. Digital PWM IC 2. 16 Duet Rail CPU Power System with 80A SPS 3. 1-Phase GT Power 4. 1-Phase AUX Power

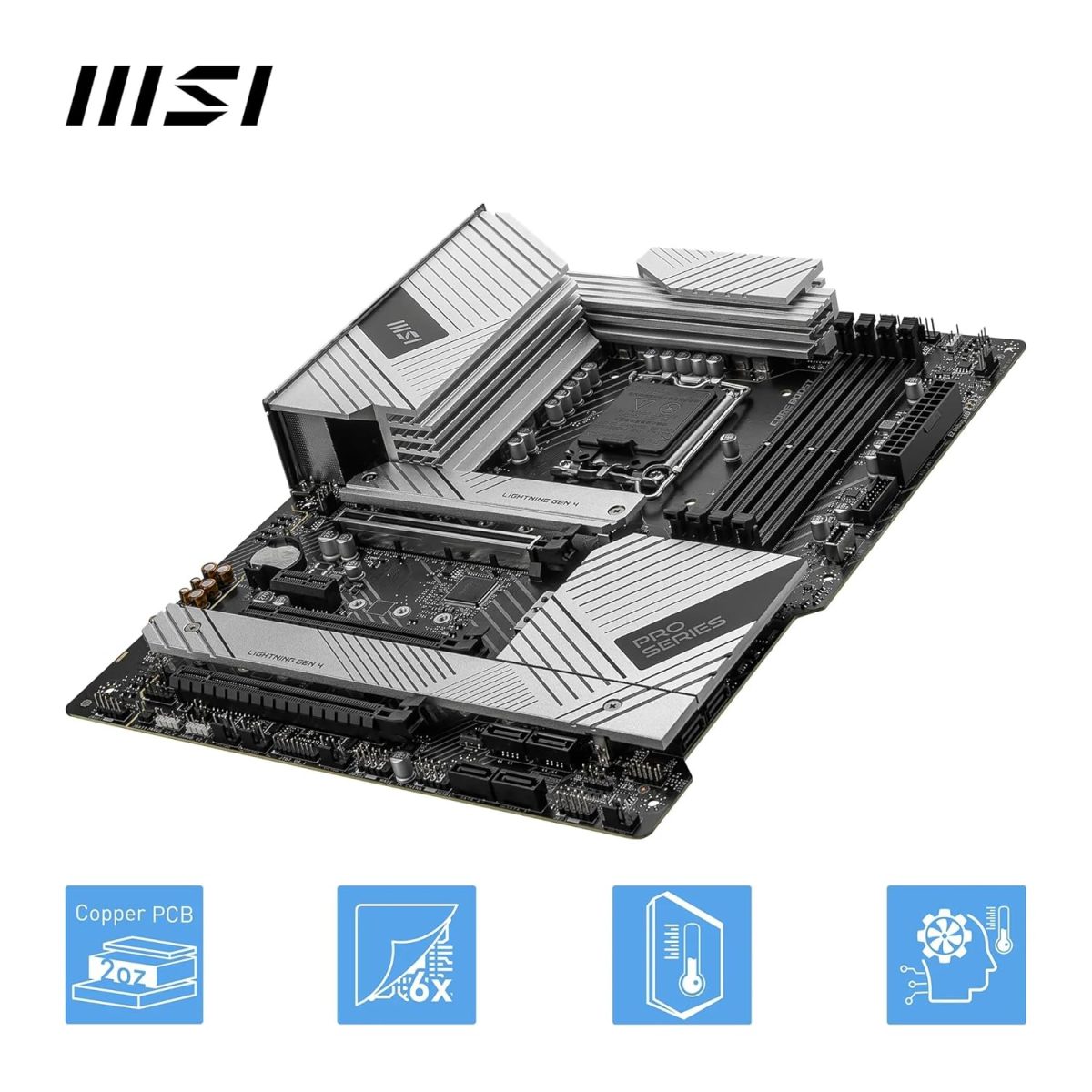

Integrated Cooling Features

VRM Cooling: Features an extended heatsink, 7W/mK MOSFET thermal pads and additional choke thermal pads for improved thermal dissipation. PCB Cooling: A 6-layer server-grade printed circuit design with 2 oz. thickened copper improves heat dissipation & performance. SSD Cooling: M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.

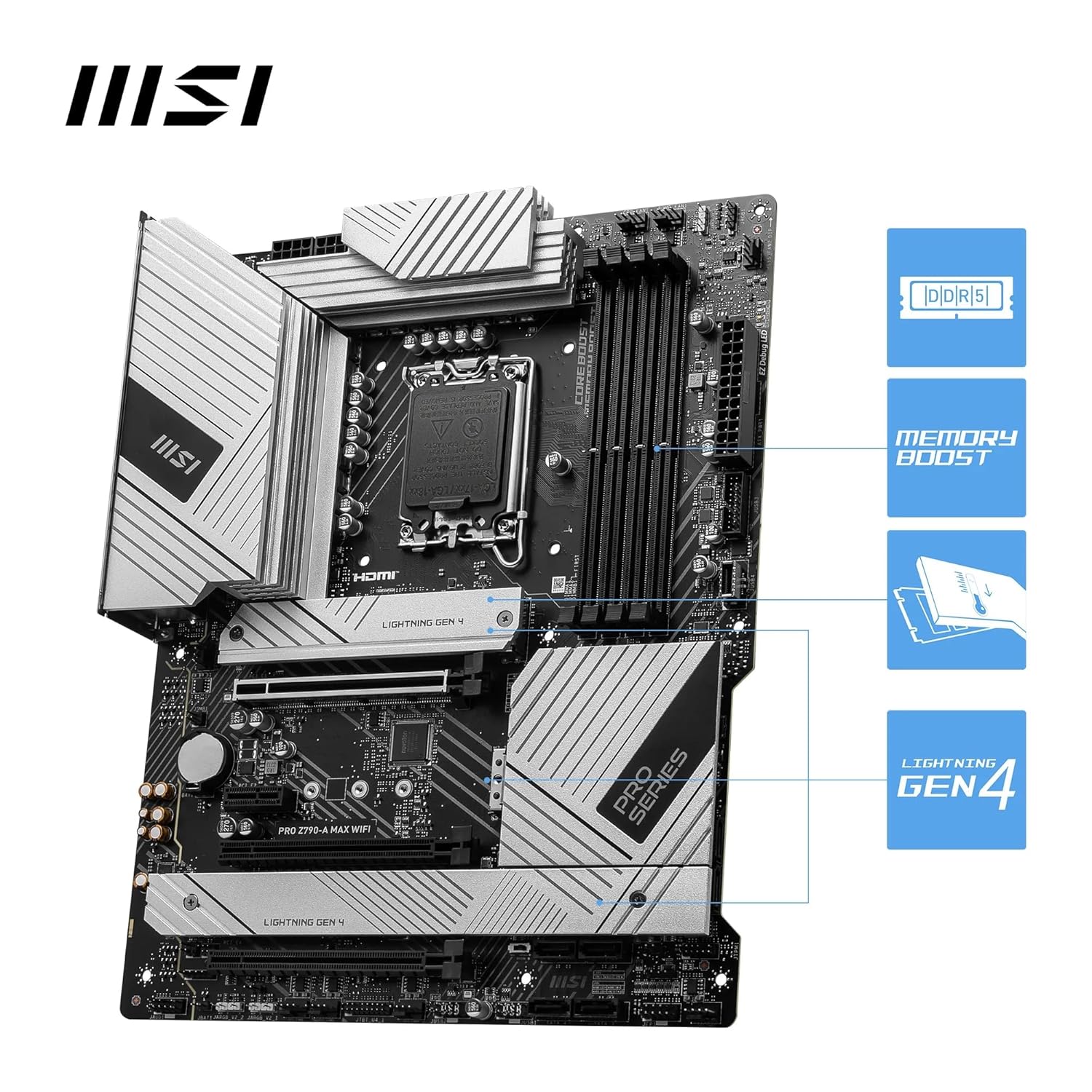

4 x DDR5 Dual Channel (7800 MHz OC)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability. *1DPC 1R Max. overclocking frequency 7800+ MHz, supports Intel XMP.

Fortified PCIe 5.0 x16 slot

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference: 1 x PCIe 5.0/4.0/3.0 x16 slot* (with Steel Armor**) 1 x PCIe 4.0/3.0 x16 slot* *Supports x16/x4 **MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

Lightning Gen4 M.2 Connectors

The PRO Z790-A MAX WIFI motherboard features MSI’s Gen4 M.2 slots: 4 x Gen4 x4 64Gbps slots* *3 x M.2 Shield Frozr

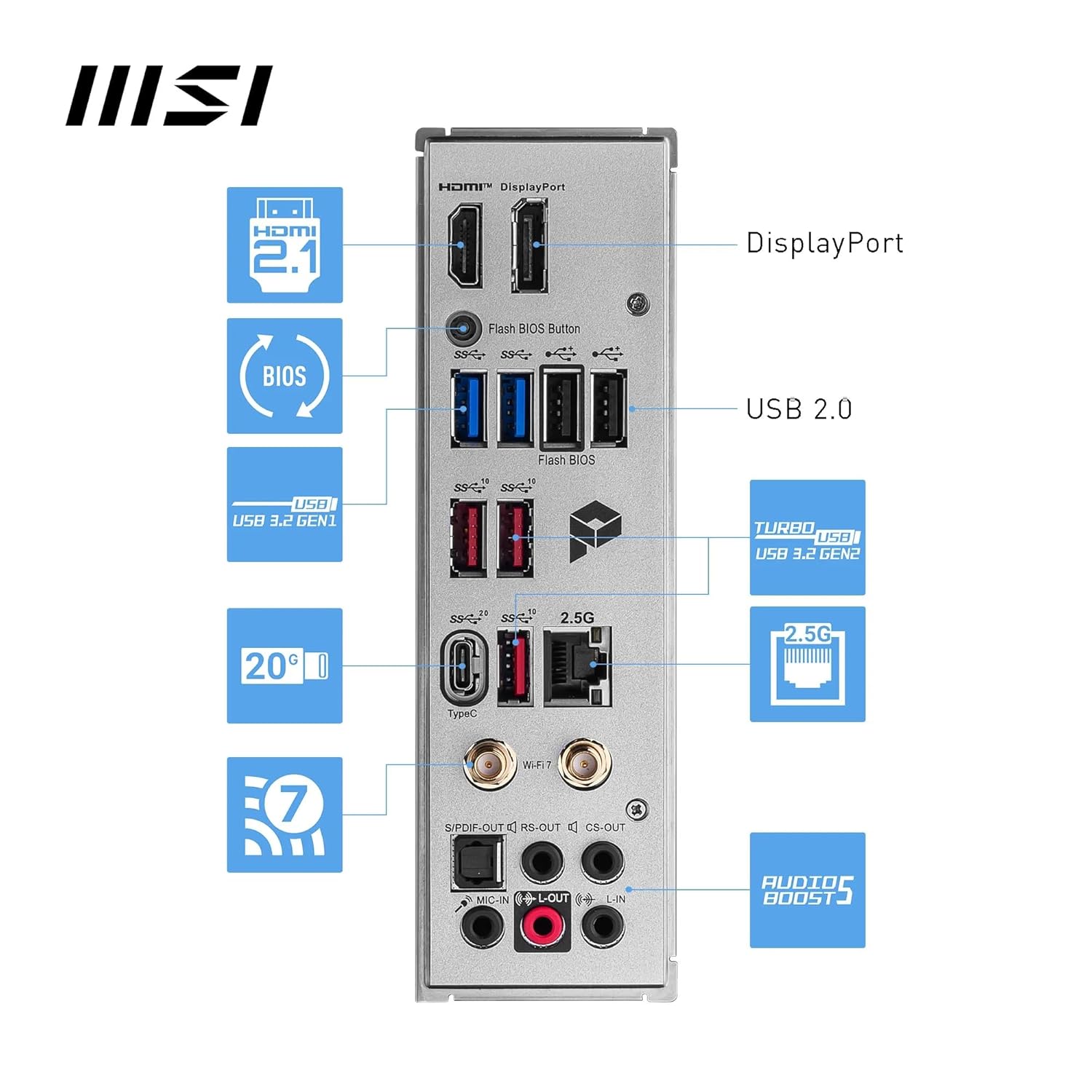

Connectivity

2.5G LAN: An Intel 2.5Gbps LAN controller delivers a premium network experience. USB 3.2 Gen 2×2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s. Wi-Fi 7: Features the latest Wi-Fi 7 module (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology. HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5 & S/PDIF output.

Add to Cart

Add to Cart

Customer Reviews

4.5 out of 5 stars 139

4.2 out of 5 stars 96

—

4.0 out of 5 stars 4

Price

₹30,169.00₹30,169.00 ₹26,000.00₹26,000.00
— no data

— no data

MSI Series
PRO PRO PRO PRO

Form Factor
ATX ATX ATX ATX

DIMM Slots
4 x DDR5 (7800MHz/OC) 4 x DDR4 (5333MHz/OC) 4 x DDR5 (7000MHz/OC) 4 x DDR4 (5333MHz/OC)

PCI-e x16 Slots
1 x 5.0 / 1 x 4.0 1 x 5.0 / 1 x 4.0 1 x 5.0 / 1 x 4.0 1 x 5.0 / 1 x 4.0

M.2 Slots
4 x Gen4 x4 4 x Gen4 x4 4 x Gen4 x4 4 x Gen4 x4

M.2 Shield Frozr
3 x Single-sided Single-sided Single-sided 3 x Single-sided

Audio
8-Channel (7.1) USB High Performance Audio with Audio Boost 5 8-Channel (7.1) HD Audio with Audio Boost 8-Channel (7.1) HD Audio with Audio Boost 8-Channel (7.1) USB High Performance Audio with Audio Boost 5

LAN
Intel 2.5G LAN Intel 2.5G LAN Intel 2.5G LAN Intel 2.5G LAN

WiFi & Bluetooth
Wi-Fi 7, Bluetooth 5.4 Intel Wi-Fi 6E, Bluetooth 5.3 Intel Wi-Fi 6E module, Bluetooth 5.3 Intel Wi-Fi 6E, Bluetooth 5.3

16 Duet Rail Power System / 80A SPS
16 Duet Rail Power System / 80A SPS 14 Duet Rail Power System / 55A DrMOS 14 Duet Rail Power System / 55A DrMOS 16 Duet Rail Power System / 80A SPS

Supports Intel Core Next-gen / 13th Gen / 12th Gen, Pentium Gold and Celeron processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
Enhanced Power Design: 16+1+1 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
2.5G LAN with Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
