MSI PRO Z790-S WiFi Motherboard, ATX – Supports 14th/13th/12th Gen Intel Core Processors, LGA 1700 – DDR5 Memory Boost 6600+MHz/OC, PCIe 5.0 x16 Slot, M.2 Gen4 Slots, Wi-Fi 6E, 2.5G LAN

Price: ₹42,599 - ₹18,809.00
(as of Oct 15, 2025 17:40:20 UTC – Details)

From the manufacturer

PRO B760M-A WIFI DDR4 Banner

MSI Business & Productivity

MSI Business & Productivity specializes in home & commercial office computing hardware with a design emphasis on productivity and user comfort.

For business professionals searching for elegant, world class solutions engineered with cutting edge components, premium reliability and refined aesthetics, MSI Business & Productivity offers a broad array of innovative products to ensure a competitive working environment.

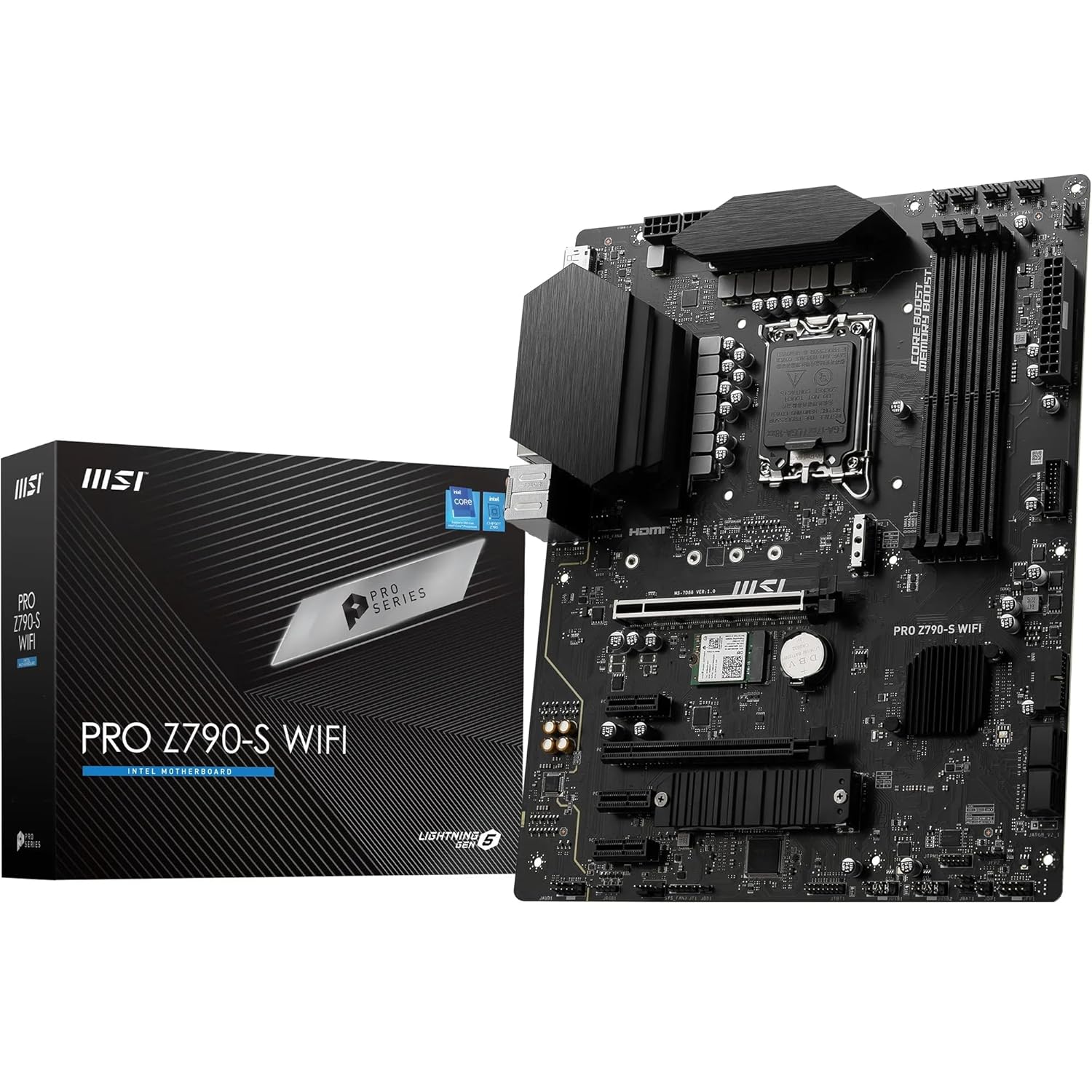

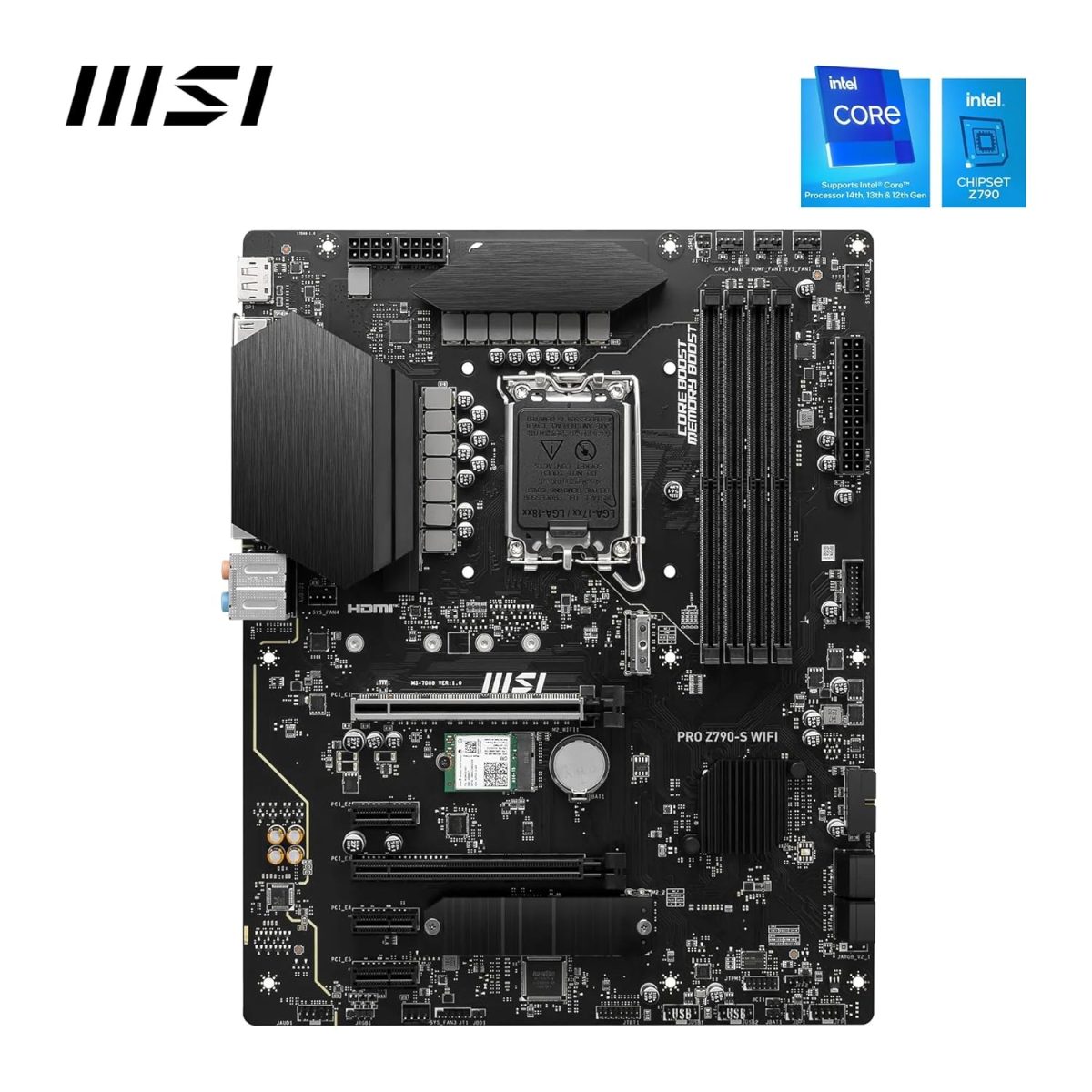

PRO Z790-S WIFI

Business Elegance

For creative professionals looking to increase productivity and improve efficiency, the MSI PRO Z790-S WIFI offers a quality platform with the capacity to support a broad spectrum of both cutting-edge and innovative hardware.

Supports Intel Core 12th & 13th Gen Processors (LGA 1700) 12 Duet Rail Power System with P-PAK 4 x DDR4 DIMMs with Memory Boost: Dual Channel (192GB Max. / 6600MHz OC) 2 x PCIe 5.0 x16 slots Lightning Gen4 M.2 & M.2 Shield Frozr USB 3.2 Gen 2×2 Type-C (20Gbps) 7.1 HD Audio with Audio Boost Realtek 2.5G LAN, Wi-Fi 6E & Bluetooth 5.3

Supports Intel Core 12th & 13th Gen Processors

The PRO Z790-S WIFI motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors. Form Factor: ATX Socket Type: LGA 1700 Chipset: Intel Z790

12+1+1 Duet Rail Power System with P-PAK

With its dual 8-pin power connectors and exclusive Core Boost technology, the PRO Z790-S WIFI is able to sustain heavy CPU power loads to support system-demanding work settings: 1. Digital PWM IC 2. 12-Phase Duet Rail CPU Power (P-PAK) 3. 1-Phase GT Power 4. 1-Phase AUX Power

Integrated Cooling Features

VRM Cooling: Features an extended heatsink, 7W/mK MOSFET thermal pads and additional choke thermal pads for improved thermal dissipation. PCB Cooling: Premium 6-layer printed circuit design improves heat dissipation & reliability. SSD Cooling: M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.

4 x DDR5 Dual Channel (6600 MHz OC)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability. *1DPC 1R Max. overclocking frequency 6600+ MHz, supports Intel XMP.

Fortified PCIe 5.0 x16 slot

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference: 1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor) 1 x PCIe 3.0 x16 slot * 3 x PCIe 3.0 x1 slots *Supports x4

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

Lightning Gen4 M.2 Connectors

The PRO Z790-S WIFI motherboard features MSI’s Gen4 M.2 slots: 2 x Gen4 x4 64Gbps slots* *1 with M.2 Shield Frozr

Connectivity

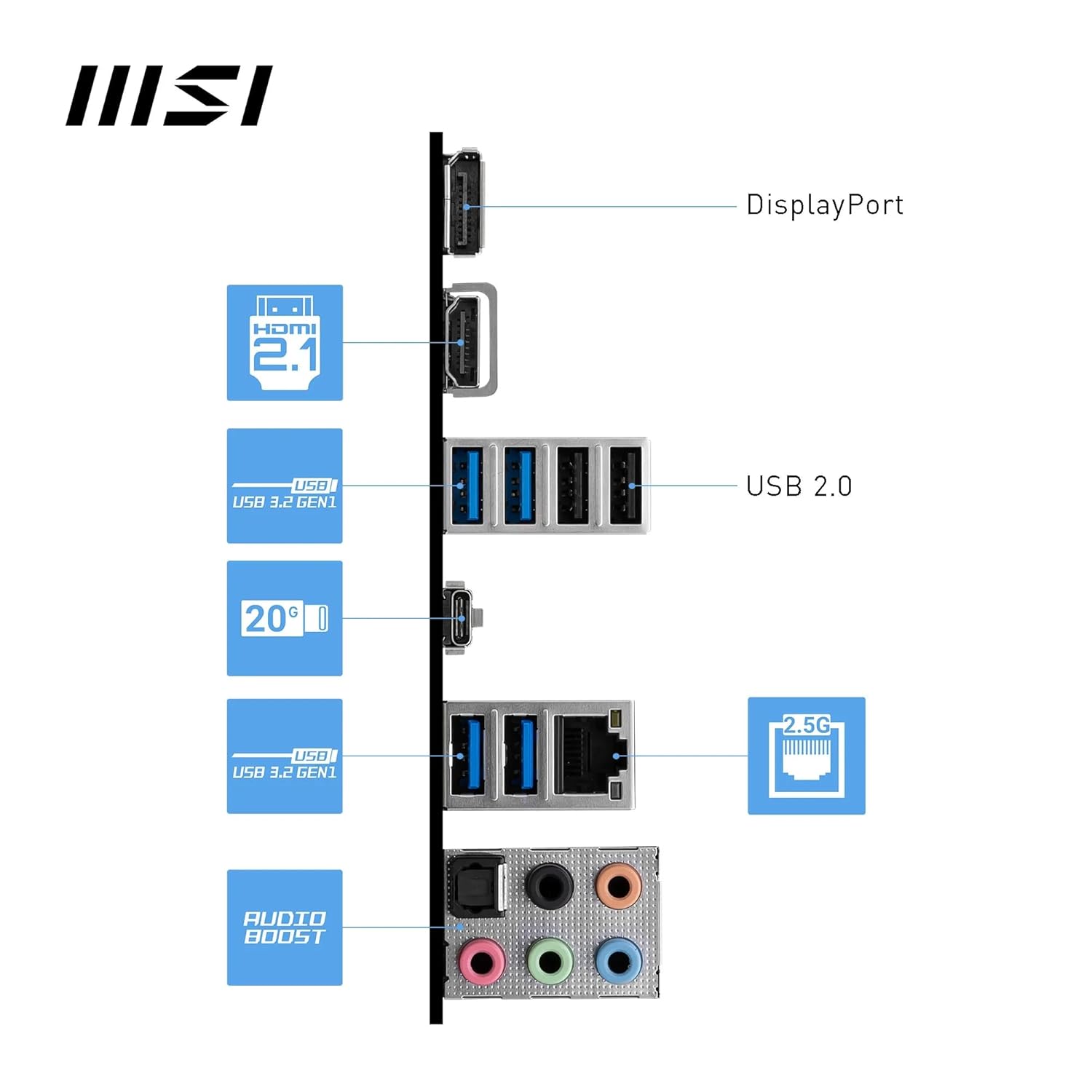

2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network experience. USB 3.2 Gen 2×2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s. Wi-Fi 6E: Features the latest Intel Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology. HD Audio: 7.1-Channel High Definition Audio with Audio Boost. Display Outputs: Include HDMI 1.4 (4K/30Hz) and DisplayPort 1.4 (4K/60Hz)

Add to Cart

Add to Cart

Customer Reviews

4.0 out of 5 stars 91

4.2 out of 5 stars 96

—

4.0 out of 5 stars 4

Price

₹18,809.00₹18,809.00 ₹26,000.00₹26,000.00
— no data

— no data

MSI Series
PRO PRO PRO PRO

Form Factor
ATX ATX ATX ATX

DIMM Slots
4 x DDR5 (6600MHz/OC) 4 x DDR4 (5333MHz/OC) 4 x DDR5 (7000MHz/OC) 4 x DDR4 (5333+MHz/OC)

PCIe x16 Slots
1 x 5.0 / 1 x 3.0 1 x 5.0 / 1 x 4.0 1 x 5.0 / 1 x 4.0 1 x 5.0 / 1 x 4.0

M.2 Slots
2 x Gen4 x4 4 x Gen4 x4 4 x Gen4 x4 4 x Gen4 x4

M.2 Shield Frozr
1 x Single-sided 1 x Single-sided 1 x Single-sided 3 x Single-sided

Audio
8-Channel (7.1) HD Audio with Audio Boost 8-Channel (7.1) HD Audio with Audio Boost 8-Channel (7.1) HD Audio with Audio Boost 8-Channel (7.1) USB High Performance Audio with Audio Boost 5

LAN
Realtek 2.5G LAN Intel 2.5G LAN Intel 2.5G LAN Intel 2.5G LAN

WiFi & Bluetooth
Intel Wi-Fi 6E module, Bluetooth 5.3 Intel Wi-Fi 6E module, Bluetooth 5.3 Intel Wi-Fi 6E module, Bluetooth 5.3 Intel Wi-Fi 6E module, Bluetooth 5.3

VRM
12 Duet Rail Power System / P-PAK 14 Duet Rail Power System / 55A DrMOS 14 Duet Rail Power System / 55A DrMOS 16 Duet Rail Power System / 80A SPS

12TH & 13TH GEN CORE – The PRO Z790-S WIFI (ATX) employs a 12 Duet Rail Power System (P-PAK) VRM for the Intel Z790 chipset (LGA 1700, 12th & 13th Gen Core); The VRM features MSI Core Boost technology for improved stability & performance
INTEGRATED COOLING – VRM cooling features 7W/mK MOSFET thermal pads and an extended heatsink; Includes chipset heatsink, M.2 Shield Frozr, active Frozr AI CPU & GPU responsive cooling, a dedicated pump-fan header & 6-layer PCB
DDR5 MEMORY, PCIe 5.0 x16 SLOT – 4 x DDR5 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 6600+ MHz); Primary PCIe x16 slot supports PCIe 5.0 (128GB/s) and includes Steel Armor
DUAL M.2 CONNECTORS – Storage options include 2 x M.2 Gen4 x4 64Gbps slots; The secondary M.2 slot includes Shield Frozr to prevent thermal throttling during hyper-fast SSD access
WI-FI 6E CONNECTIVITY – Network hardware includes an Intel Wi-Fi 6E module with Bluetooth 5.3 & 2.5Gbps LAN controller; Rear ports include USB 3.2 Gen 2×2 Type-C (20Gbps), HDMI 1.4, DisplayPort 1.4, and 7.1 HD Audio with Audio Boost
