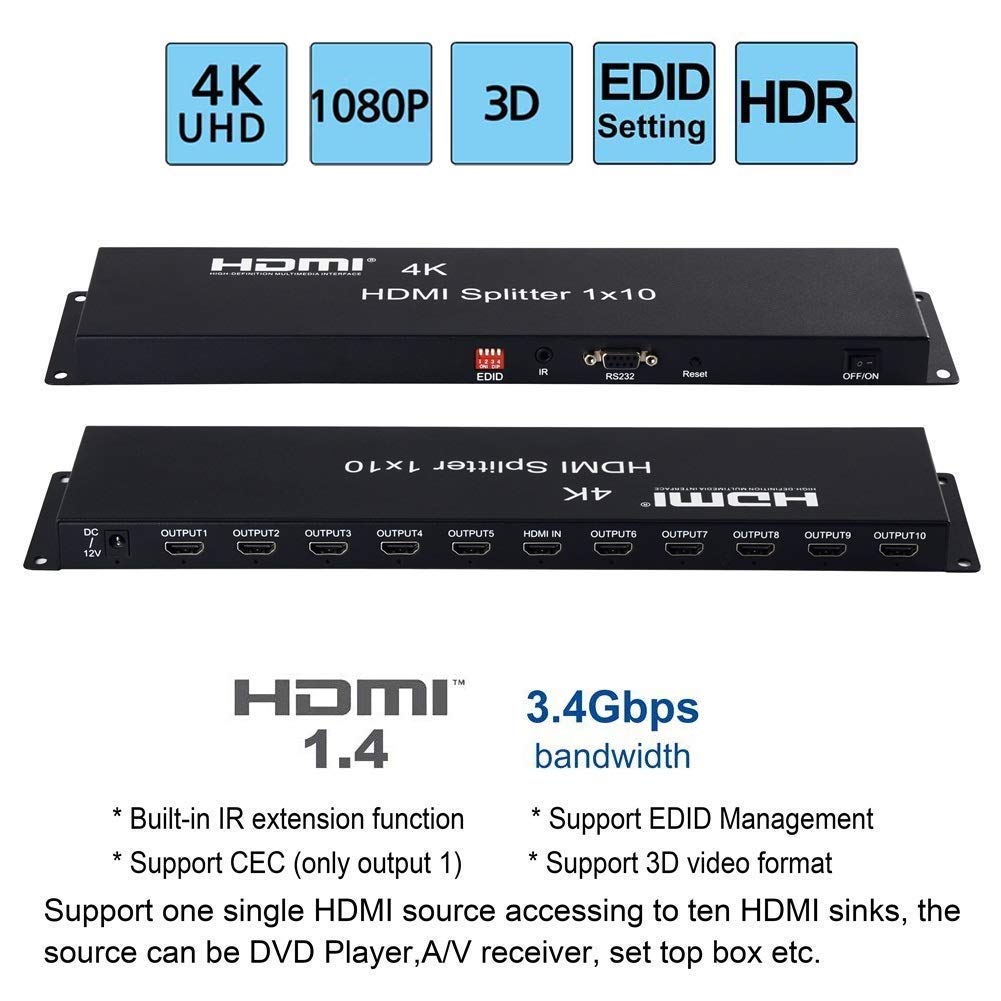

Microware 1×10 HDMI Splitter 1 in 10 Out Full HD 4K/2K 3D Resolution with IR Extension EDID Management Works with Monitors Projectors DVD Player A/V Receiver Set Top Box

Price: ₹19,999 - ₹8,273.00
(as of Oct 25, 2025 04:27:46 UTC – Details)


Microware 1×10 HDMI Splitter uses a single HDMI source,accessing to ten HDMI sinks. It allows one HDMI device to be split easily to ten HDMI compatible monitors or projectors. In addition,it can be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this HDMI splitter can be up to 3840×2160/30Hz.
Features:

1. Support one single HDMI source,accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and etc.
2. Built-in IR extension function(via the IR-RX of HDMI repeater to control the HDMI sources)
3. Support serial port online upgrade
4. Support EDID management.
5. Support audio format:.DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD.

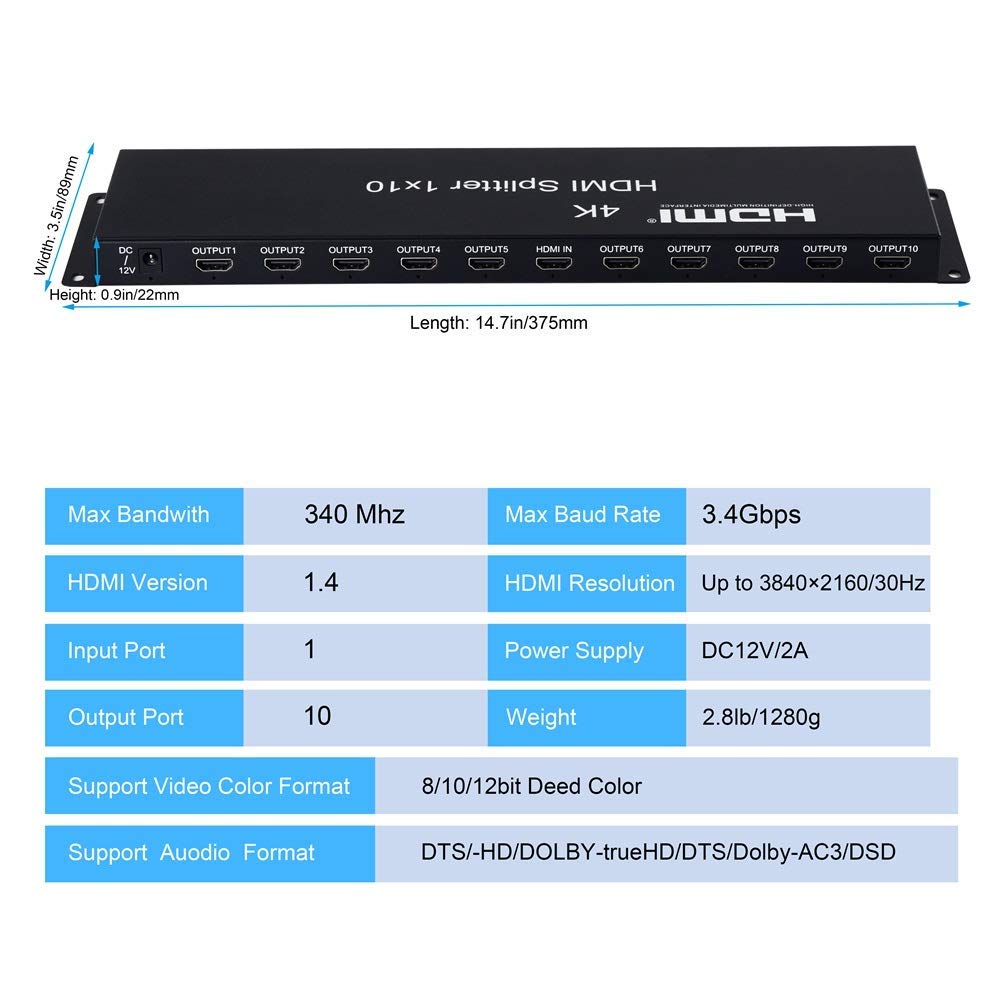

SPECIFICATION:

1. Support HDMI 1.4b ,HDCP1.4
2. Support 3D video format
3. Support CEC (only output1)
4. Support high resolution up to 3840X2160/30H
5. Support highest rate of 3.4G and TMDS clock can be up to 340 MHz
6. Support video format: Support 8/10/12 bit deep color
7. Support AWG26 HDMI standard cable,input up to 5 meters ,output up to 10 meters.

Working Mode Description: There are two working modes for product, normal operating mode and upgrade mode, which is decided by DIP EDID switch 1, 1 is upgrade mode，0 is normal operating mode.
IR extension Description: There is an IR TX Extension port, it can work with an optional HDMI repeater which works as IR-RX and IR extended via HDMI cable.

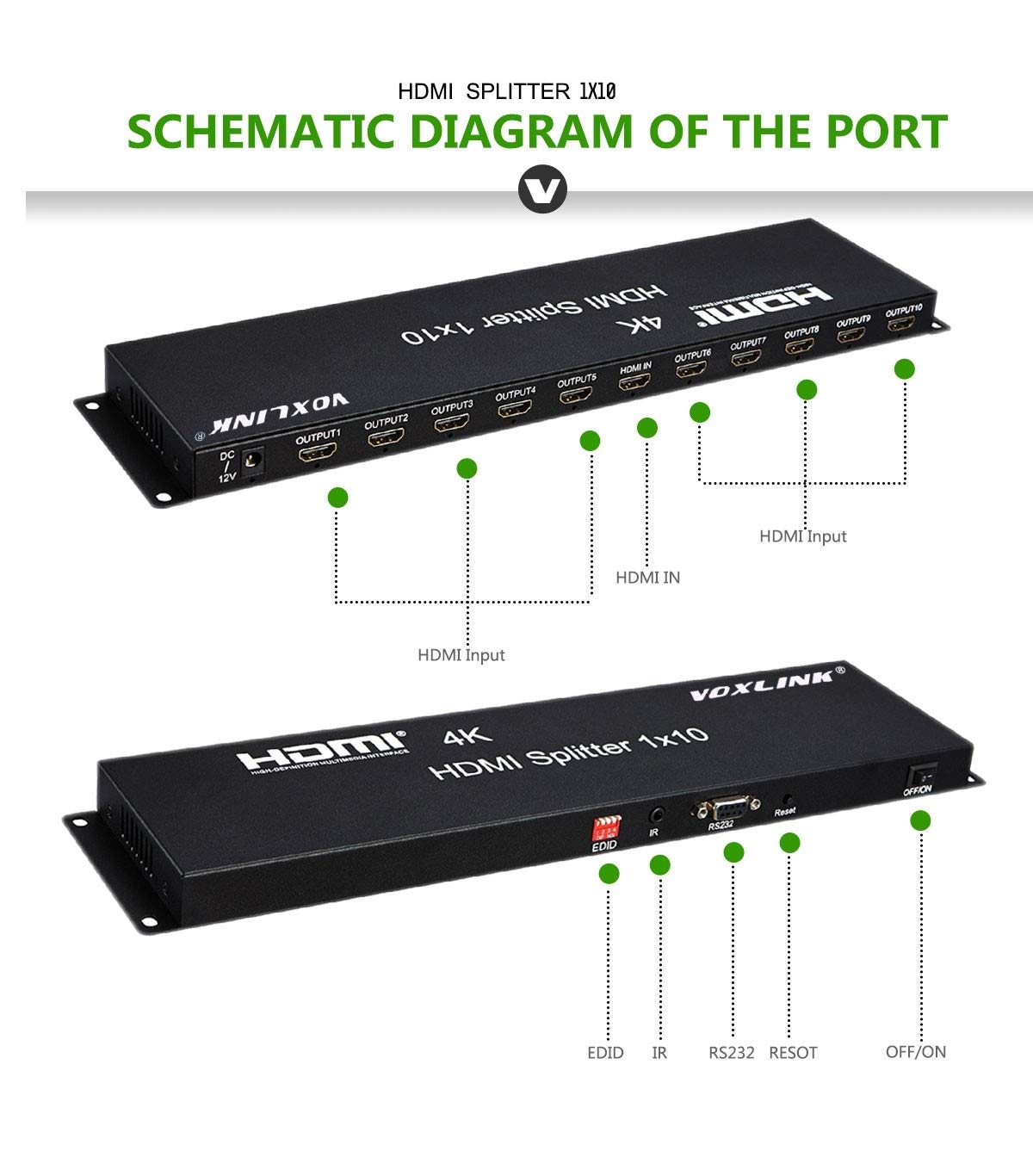

Connection and Operation:

1. Connect the HD source to the splitter input with one HDMI cable.
2. Connect the splitter output to the displays with 10 HDMI cables.
3. Connect 12V/2A power adapter to the splitter.
4. Reset button: it’s a Reset key for system Reset.

Support HDMI 1.4, CEC(only output 1), HDCP1.4, 3D video format, high resolution up to 3840X2160/30Hz, highest rate of 3.4G and TMDS clock can be up to 340 MHz, 8/10/12 bit deep color, serial port online upgrade, EDID managements.
