MSI MAG X870E Tomahawk WiFi Motherboard, ATX – Supports AMD Ryzen 9000/8000 / 7000 Processors, AM5-80A SPS VRM, DDR5 Memory Boost 8400+ MT/s (OC), PCIe 5.0 x16, M.2 Gen5, Wi-Fi 7, 5G LAN

Price: ₹69,999 - ₹36,870.00
(as of Nov 01, 2025 02:39:02 UTC – Details)

From the manufacturer

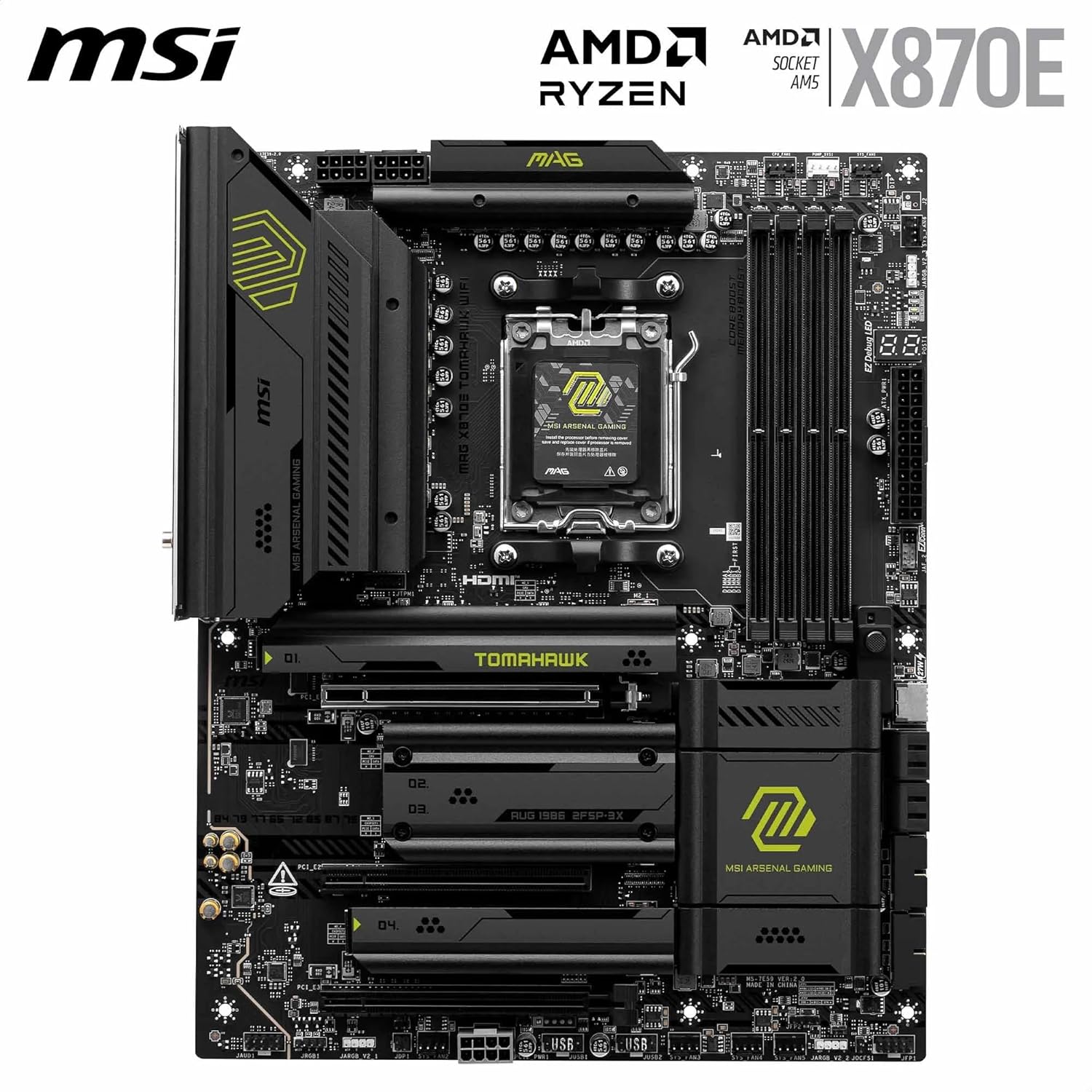

MAG X870E TOMAHAWK WIFI

MSI: For Gamers & Creators

MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today’s performance limits.

MAG X870E TOMAHAWK WIFI

Stable Foundation, Durably Built

The MAG X870E TOMAHAWK WIFI is a gaming oriented ATX motherboard that is constructued with a 14 Duet Rail Power System and the latest AMD X870E chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, Wi-Fi 7 and DDR5 support that balances both value and premium hardware.

Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors (Zen 5, Zen 4, AM5) Ultra Power: 14 Duet Rail Power System with 80A SPS, 8-layer PCB, Server Grade PCB material 4 x DDR5 DIMMs with Memory Boost: Dual Channel (256GB Max. / 8400+ MT/s OC) 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 Lightning Gen5 & Gen4 M.2 slots Ultra Connect: USB4 Type-C (40Gbps), Realtek 5G LAN, Full-speed Wi-Fi 7 solution, Bluetooth 5.4 8-Channel (7.1) USB High Performance Audio with Audio Boost 5 EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release, EZ Antenna

Rzyen 9000, X870 Chipset, Ultra Power, Frozr Design, DDR5 Memory

Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors

The MAG X870E TOMAHAWK WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.

Form Factor: ATXSocket Type: AM5Chipset: AMD X870E

Ultra Power – 14 Duet Rail Power System with 80A Smart Power Stage

With exclusive Core Boost technology and dual 8 pin power connectors, the MAG X870E TOMAHAWK WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:

Digital PWM IC14 Duet Rail Power System (80A / SPS)2 Phase SOC Power1 Phase MISC Power

Frozr Design

Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.

Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers – including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.

Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

4 x DDR5 Dual Channel (8400+ MT/s OC)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.

EXPO Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 8400+ MT/s, supports AMD EXPO and Intel XMP.

1 x PCI-e 5.0 x16 Slot, Gen5 M.2, EZ DIY, Ultra Connect

Fortified PCIe 5.0 x16 Slot

The MSI PCI Express Steel Armor II slot is reinforced with additional solder points on the motherboard, supporting up to twice the weight of graphics cards compared to 1st Gen Steel Armor.

1 x PCIe 5.0/4.0/3.0 x16 slot* (one with Steel Armor II** and EZ PCIe Release)1 x PCIe 4.0/3.0 x16 slot*1 x PCIe 3.0 x1 slot*

*Supports x16x4

**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

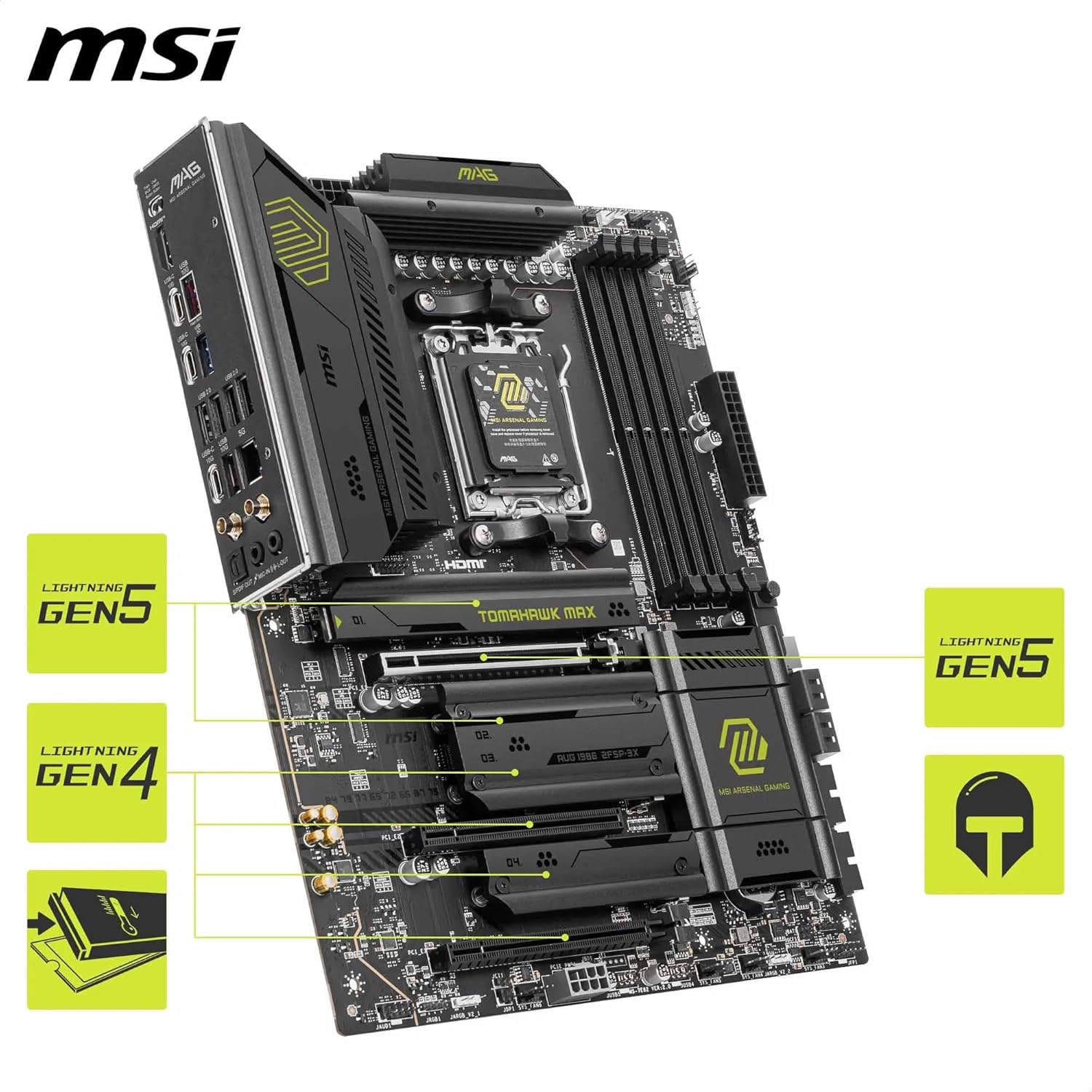

Gen5 M.2 Connector

The MAG X870E TOMAHAWK WIFI motherboard features MSI’s M.2 slots:

2 x Gen5 x4 128Gbps slots*/** (one with double-sided M.2 Shield Frozr)

2 x Gen4 x4 64Gbps slots**

*M2_1 & M2_4 equipes with EZ M.2 Shield Frozr II

**M2_2 & M2_3 equipes with M.2 Shield Frozr

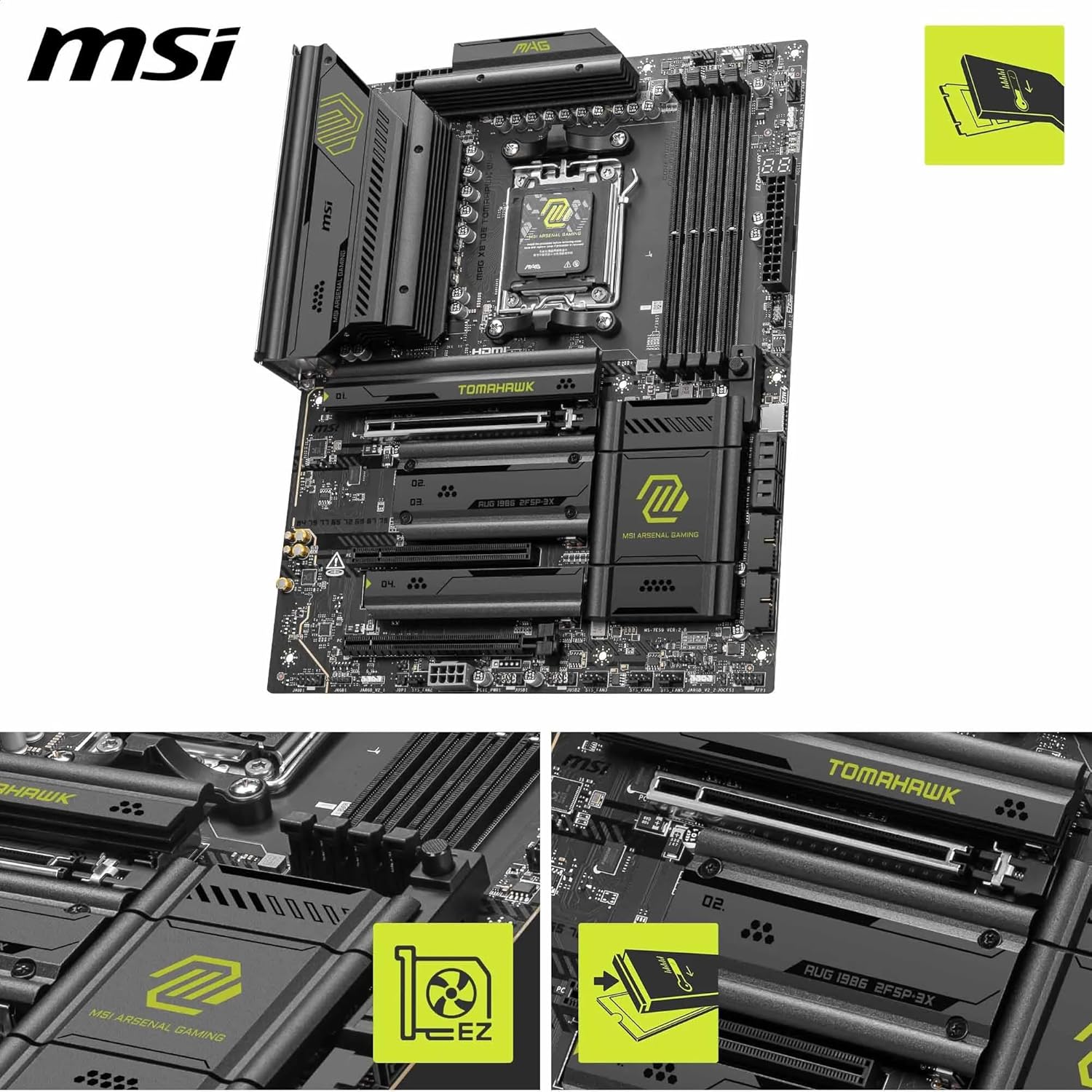

EZ DIY

The DIY Friendly designs optimize the assemble process and experience.

EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don’t have to worry about lost screws or overtightening.

EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.

EZ PCIe Release: With just one press of a button, users can easily install or remove the graphics card with one hand.

EZ Antenna: MSI’s latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna’s placement.

Ultra Connect

5G LAN: A Realtek 5Gbps LAN controller delivers a premium network gaming experience.

Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.

USB4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 4K/60Hz display support*.

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.2 out of 5 stars 69

4.5 out of 5 stars 206

4.2 out of 5 stars 1,033

4.5 out of 5 stars 285

Price

₹25,349.00₹25,349.00 ₹36,870.00₹36,870.00 ₹42,239.00₹42,239.00 ₹50,300.00₹50,300.00

MSI Gaming Series
PRO MAG MPG MPG

Form Factor
ATX ATX ATX ATX

VRM
14 Duet Rail Power System / 60A SPS 14 Duet Rail Power System / 80A SPS 14 Duet Rail Power System / 80A SPS 18 Duet Rail Power System / 110A SPS

DIMM Slots
4 x DDR5 (7800+ MT/s /OC) 4 x DDR5 (8400+ MT/s /OC) 4 x DDR5 (7800+ MT/s /OC) 4 x DDR5 (8400+ MT/s /OC)

PCI-E x16 Slots
1 x 5.0 / 1 x 4.0 1 x 5.0 / 1 x 4.0 1 x 5.0 / 1 x 4.0 2 x 5.0 / 1 x 4.0

M.2 Slots
2 x Gen5 x4 / 1 x Gen4 x4 / 1 x Gen4 x2 2 x Gen5 x4 / 1 x Gen4 x4 / 1 x Gen4 x2 2 x Gen5 x4 / 2 x Gen4 x4 2 x Gen5 x4 / 2 x Gen4 x4

M.2 Shield Frozr
1 x Single-sided 1 x Double-sided / 3 x Single-sided 1 x Double-sided / 3 x Single-sided 4 x Double-sided

Audio
8-Channel (7.1) HD Audio with Audio Boost 8-Channel (7.1) USB High Performance Audio with Audio Boost 5 8-Channel (7.1) USB High Performance Audio with Audio Boost 5 8-Channel (7.1) USB High Performance Audio with Audio Boost 5

LAN
Realtek 5G LAN Realtek 5G LAN Realtek 5G LAN Realtek 5G LAN + Realtek 2.5G LAN

WiFi & Bluetooth
Wi-Fi 7, Bluetooth 5.4 Wi-Fi 7, Bluetooth 5.4 Wi-Fi 7, Bluetooth 5.4 Wi-Fi 7, Bluetooth 5.4

ULTRA POWER – SUPPORTS THE LATEST RYZEN 9000 PROCESSORS IN HIGH PERFORMANCE – The MAG X870E TOMAHAWK WIFI employs a 14 Duet Rail Power System (80A, SPS) VRM for the AMD X870E chipset (AM5, Ryzen 9000 / 8000 / 7000) with Core Boost architecture
FROZR GUARD – Premium cooling features such as 7W/mK MOSFET thermal pads, extra choke thermal pads and an Extended Heatsink; Includes chipset heatsink, double-sided EZ M.2 Shield Frozr II, a Combo-fan (for pump & system) header (3A)
DDR5 MEMORY, PCIe 5.0 x16 SLOT – 4 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, 8400+ MT/s); 1 x PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor II supports cutting-edge graphics cards
QUADRUPLE M.2 CONNECTORS – Storage options include 2 x M.2 Gen5 x4 128Gbps slots, 2 x M.2 Gen4 x4 64Gbps slots; Features EZ M.2 Shield Frozr II to prevent thermal throttling and EZ M.2 Clip II for EZ DIY experience
ULTRA CONNECT – Network hardware includes a full-speed Wi-Fi 7 module with Bluetooth 5.4 & 5Gbps LAN; Rear ports include USB4 Type-C 40Gbps with display output and 7.1 USB High Performance Audio with Audio Boost 5 (supports S/PDIF output)
