MSI MAG Z690 Tomahawk WiFi Motherboard ATX – Supports Intel 12th Gen Core Processors, LGA 1700-70A VRM, Memory Boost (DDR5-6400MHz/OC), 1 x PCIe 5.0 x16, 3 x M.2 Gen4/ x4, Wi-Fi 6E, Black

Price: ₹62,999 - ₹31,599.00
(as of Nov 04, 2025 02:14:25 UTC – Details)

From the manufacturer

MSI: For Gamers & Creators

MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today’s performance limits.

MAG Z690 TOMAHAWK WIFI

Conquer the Battlefield

For gamers looking for a 12th Gen Intel Core platform with PCI-e 5.0 x16 graphics card architecture, accelerated DDR5 memory, and a vast array of M.2 Gen4 storage options, the MSI MAG Z690 TOMAHAWK WIFI gaming motherboard is built to help conquer the battlefield.

Supports Intel Core 12th Gen Processors (LGA 1700) 4 x DDR5 DIMMs, Memory Boost (6400MHz+ OC) 16+1+1 Duet Rail Power Design with 70A SPS 4 x M.2 Slots (3 x Gen4, 1 x Gen3) with Shield Frozr 1 x PCI-e 5.0 x16 (128GB/s), 2 x PCI-e 3.0 x16 Graphic Card Slots Intel I225-V 2.5G LAN Intel Wi-Fi 6E & Bluetooth 5.2

Z690 Chipset, 16+1+1 Duet Rail VRM, Complete Cooling, DDR5 Memory Boost

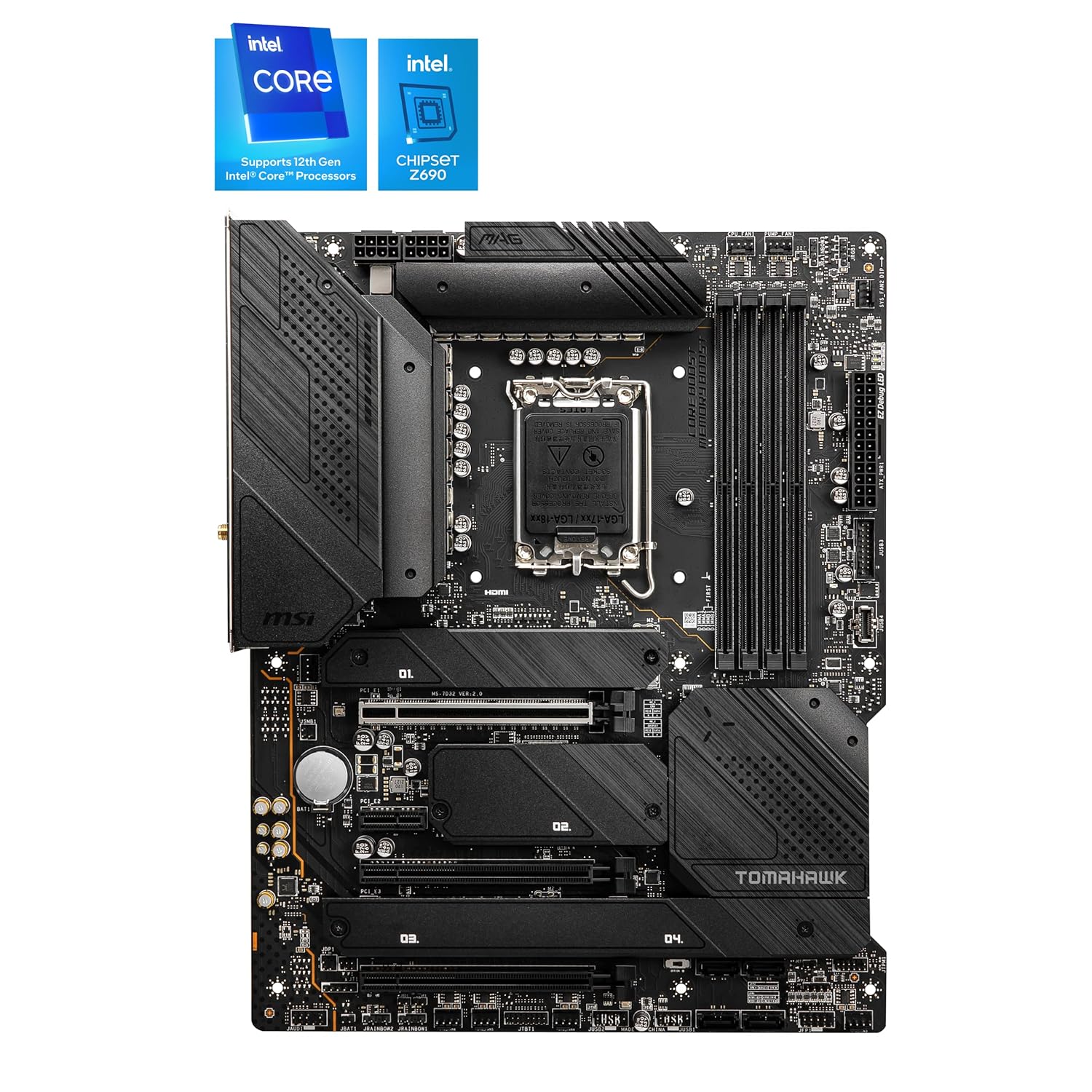

Supports Intel Core 12th Gen Processors

The MAG Z690 TOMAHAWK WIFI motherboard supports 12th Gen Intel Core processors.

Form Factor: ATXSocket Type: LGA 1700Chipset: Intel Z690

16+1+1 Duet Rail VRM with 70A SPS

The hardy VRM design features MSI exclusive Core Boost Technology powered by 2 x 8-pin CPU power connectors:

Digital PWM IC1 Phase GT Power16 Duet Rail Power System (Smart Power Stage / 70A)1 Phase AUX Power

Complete Cooling Solution

VRM Cooling: Features an extended heatsink and 7W/mK thermal pads for improved thermal dissipation.

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.

A 6-layer server-grade PCB with 2oz of thickened copper improves performance & system stability.

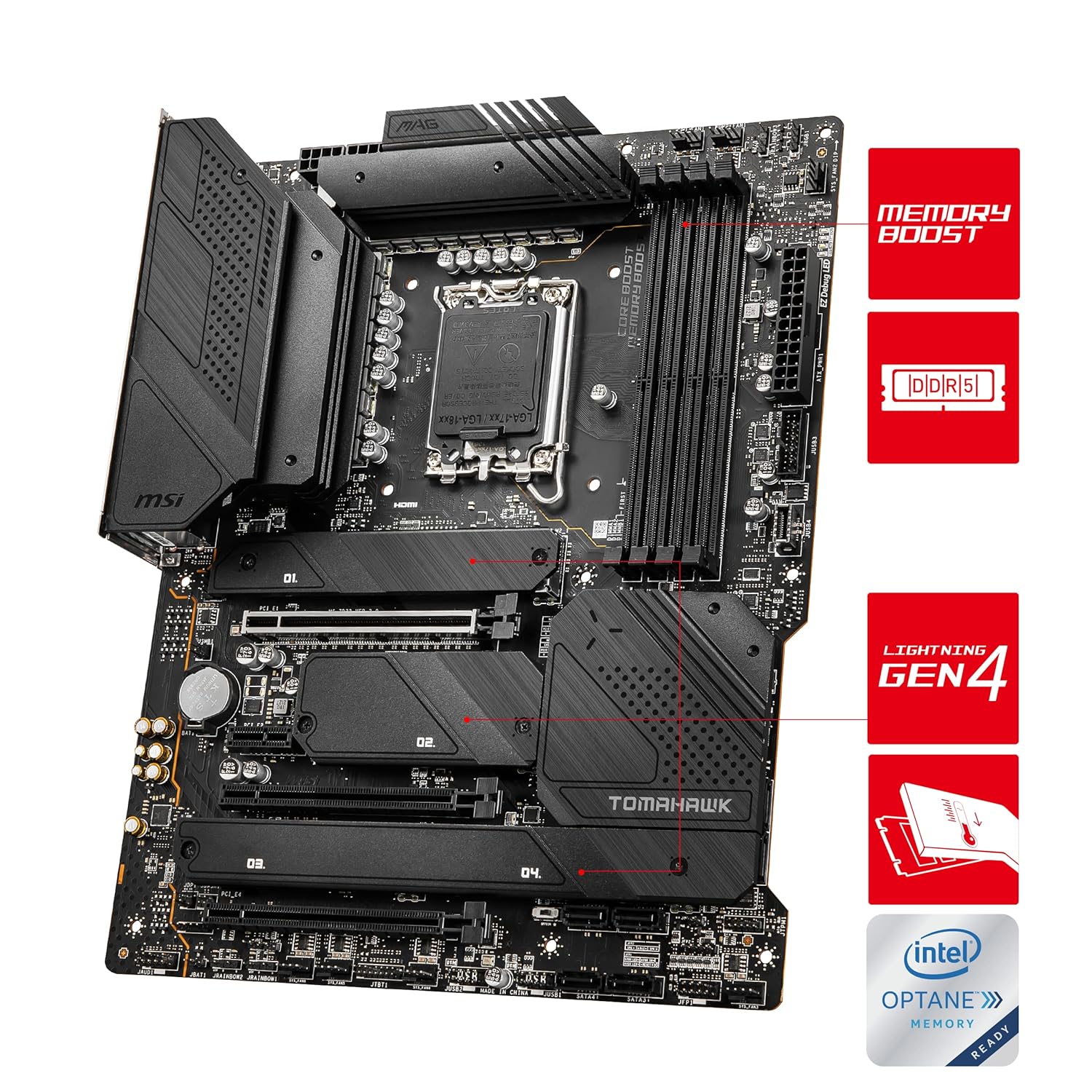

4 x DDR5 Dual Channel (6400+ MHz Overclocked*)

Memory Boost: A fully-isolated circuit delivers pure DDR5 data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for improved memory speed and stability.

*1DPC 1R Max. overclocking frequency 6400+ MHz, supports Intel XMP 3.0 OC.

PCI-e 5.0 x16 Slot, Cutting-Edge Storage Performance, Wi-Fi 6E Connectivity

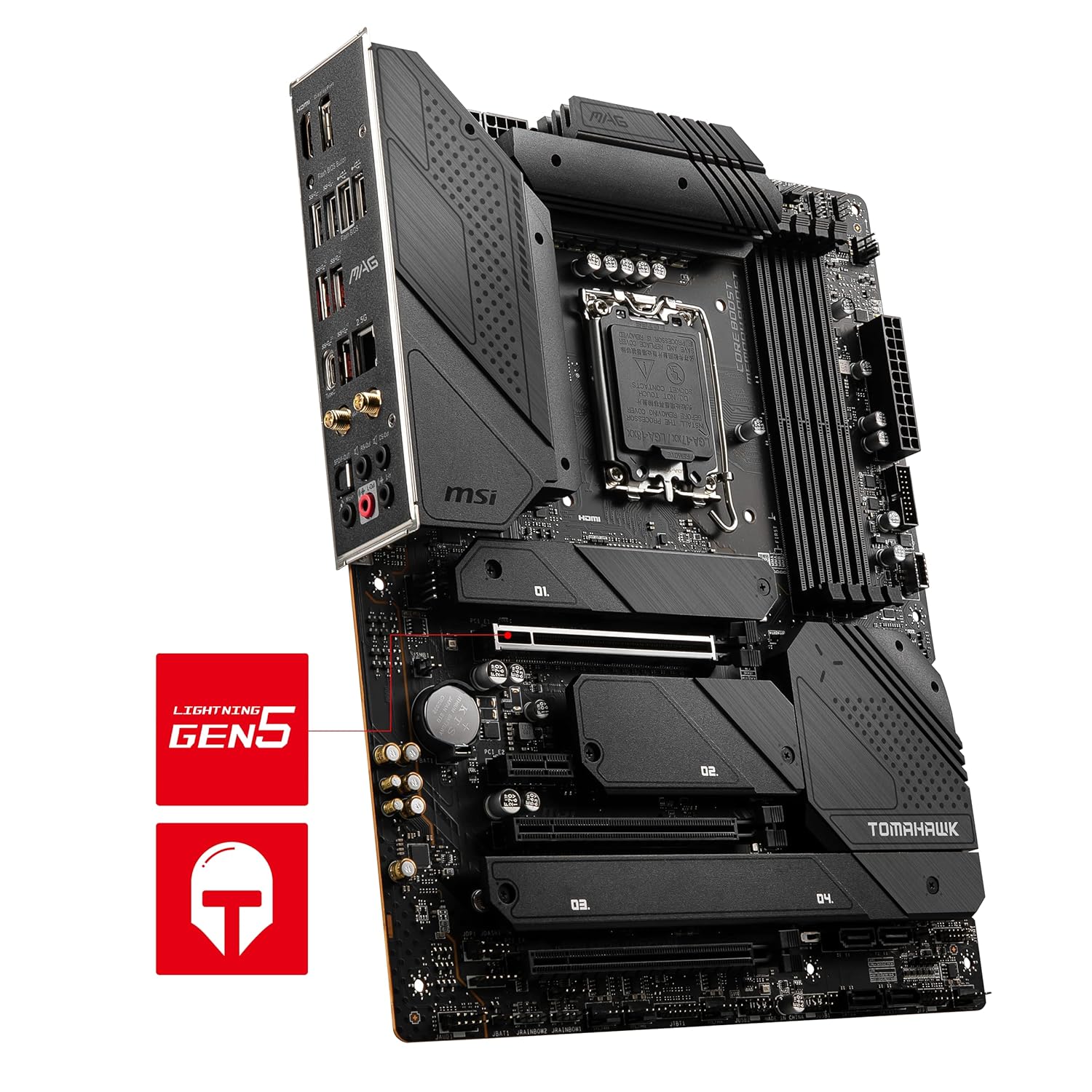

Fortified PCI-e 5.0 x16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points* to support the weight of heavy graphics cards and shields the point of contact from electromagnetic interference:

1 x PCI-e 5.0 x16 slot (with Steel Armor)2 x PCI-e 3.0 x16 slots

*All-new MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

Gen4 & Gen3 M.2 Connectors

The MAG Z690 TOMAHAWK WIFI motherboard features MSI’s latest M.2 slots (Intel Optane supported):

3 x Gen4 x4 64Gb/s slots1 x Gen3 x4 32Gb/s slot

*M.2 specifications may vary depending on the CPU installed.

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

Wi-Fi 6E & Bluetooth 5.2

2.5G LAN: An Intel I225-V 2.5Gbps LAN controller delivers a premium network gaming experience.

USB 3.2 Gen 2×2 Type-C: Enables ultra-fast 20Gbps data transfer rates between devices.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost 5 & S/PDIF output.

Wi-Fi 6E: Features the latest Intel Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.

Add to Cart

Add to Cart

Customer Reviews

4.5 out of 5 stars 704

4.5 out of 5 stars 704

4.5 out of 5 stars 153

4.5 out of 5 stars 313

4.5 out of 5 stars 704

Price

— no data

— no data
₹31,599.00₹31,599.00 ₹29,999.00₹29,999.00
— no data

MSI Gaming Series
MAG MAG MAG MPG MPG

Form Factor
ATX ATX ATX ATX ATX

VRM
16+1+1 Duet Rail Power System, 70A SPS 16+1+1 Duet Rail Power System, 70A SPS 16+1+1 Duet Rail Power System, 70A SPS Direct 16+1+1 Phase Power System, 75A SPS Direct 19+2 Phase Power System, 105A SPS

DIMM Slots
DDR5 x 4 (6400+MHz/OC) DDR4 x 4 (5200+MHz/OC) DDR5 x 4 (6400+MHz/OC) DDR4 x 4 (5200+MHz/OC) DDR5 x 4 (6666+MHz/OC)

PCI-e x16 Slots
5.0 x 1 / 3.0 x 2 5.0 x 1 / 3.0 x 2 5.0 x 1 / 3.0 x 2 5.0 x 1 / 3.0 x 2 5.0 x 2 / 3.0 x 1

M.2 Slots
4.0 x 3 / 3.0 x 1 4.0 x 3 / 3.0 x 1 4.0 x 3 / 3.0 x 1 4.0 x 4 4.0 x 4 / 3.0 x 1

M.2 Shield Frozr
Top Top Top Top Top

Audio
8-Channel (7.1) HD Audio with Audio Boost 5 8-Channel (7.1) HD Audio with Audio Boost 5 8-Channel (7.1) HD Audio with Audio Boost 5 8-Channel (7.1) HD Audio with Audio Boost 5 8-Channel (7.1) HD Audio with Audio Boost 5

LAN
Intel I225V 2.5G LAN Intel I225V 2.5G LAN Intel I225V 2.5G LAN Intel I225V 2.5G LAN Intel I225V 2.5G LAN

WiFi & Bluetooth
no data
Intel Wi-Fi 6, Bluetooth 5.2 Intel Wi-Fi 6E, Bluetooth 5.2 Intel Wi-Fi 6, Bluetooth 5.2 Intel Wi-Fi 6E, Bluetooth 5.2

12TH GEN CORE, HIGH PERFORMANCE – The MAG Z690 TOMAHAWK WIFI employs a powerful VRM platform for the Intel Z690 chipset (LGA 1700, 12th Gen Core ready) with 16 Duet Rail Power System 70A SPS (8+8 Pin connector)
EXTENDED COOLING & ARMOURED X16 – VRM cooling features an enlarged heatsink for improved passive cooling & 7W/mK MOSFET thermal pads; a 6-layer PCB base & enlarged chipset heatsink help dissipate heat; robust PCIe x16 steel armour ensures excellent durability under heavy loading
MULTI-GPU SLOTS, HIGH RAM SPEEDS – The primary PCIe 5.0 x16 slot (with steel frame) supports AMD CrossFire technology; quad DDR5 DIMMs with Memory Boost architecture enable faster SDRAM for overclocking (6400+MHz/OC)
QUADRUPLE M.2 CONNECTORS – Storage includes 3 x M.2 Gen4 x4 64Gb/s slots and 1 x M.2 Gen3 x 4 slot(Intel Optane supported) with Shield Frozr to prevent thermal throttling during hyper-fast SSD access
WI-FI 6E CONNECTED – Features the latest Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology; Fixed ports include USB 3.2 Gen 2×2 Type-C (20Gb/s), 4K/60Hz HDMI 2.1 display, Intel 2.5G LAN, and 7.1 HD Audio with Audio Boost 5
